PE HDPE Pipe Making Machine Line with 10 Years Experience

Product Specifications

Prod Model:	Sevenstars
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electric Element:	Schneider
Motor:	Siemens
Raw Material:	PE HDPE
Range Of Pipe:	16-630mm
Final Product:	PE HDPE Pipe
Certification:	ISO9001:2008
Automation:	Automatic
Product Type:	PE Pipe
Computerized:	Computerized

Product Description

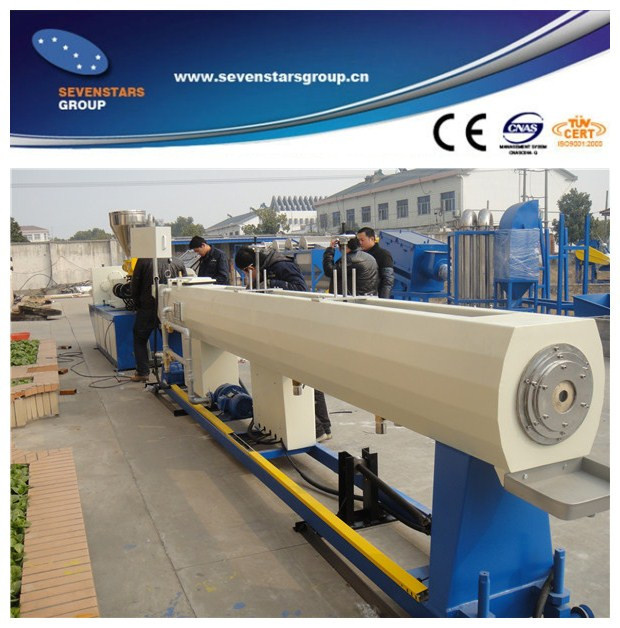

PE pipe extruding line/PE pipe extruder line/PE pipe extrusion line/PE pipe extruding machine line

Process flow for PE pipe extruding line

1. Raw material + additive mixing,
2. Vacuum feeding machine
3. Hopper dryer
4. Single screw extruder
5. Color code extruder
6. Mould
7. Calibrator vacuum forming machine
8. Cooling tank haul off machine
9. Cutting machine
10. Discharging bracket


Advantages of PE pipe extruding line:

Connection reliability: Polyethylene pipe system connected between the use of electric hotmelt, the joint strength is higher than pipe body strength.

Good low temperature impact resistance: Lowtemperature brittleness of polyethylene low temperature can be within a temperature range of subzero 60 to 60 degrees Celsius safe to use. Construction in winter, because of materials, impact resistance is good, tube embrittlement will not occur.

Good stress cracking resistance: HDPE has a low gap sensitivity, high shear strength and excellent anti scratch capabilities, resistance to environmental stress cracking performance is also very prominent.

Good resistance to chemical corrosion: HDPE pipe can be resistant to a variety of chemical media, corrosion, chemical substances that exist in the soil will not cause any degradation of the pipeline. Polyethylene is the electrical insulator, it will not happen rot, rust or electrochemical corrosion phenomenon; In addition, it will not promote algae, bacteria or fungal growth.

Anti aging, long life: Containing 2% to 2.5% of the uniform distribution of carbon black in polyethylene pipe can be outdoor storage or use of 50 years, will not be subjected to ultraviolet radiation damage.

Abrasion resistance: HDPE Pipe and comparison tests showed the wear resistance of steel pipe, HDPE pipe 4 times the wear resistance of steel pipe. In the mud transportation field, as compared with the steel pipe, HDPE pipe has better wear resistance, which means that HDPE pipe has a longer life and better economy.

Flexible good: HDPE pipe flexible makes it easy to bend, works by changing the pipes can be a way to bypass the obstacles towards, and in many occasions, the flexible pipe fittings to reduce consumption and lower installation costs

Flow resistance: HDPE pipe has a smooth inner surface, the Manning coefficient of 0.009. The performance smooth and non adhesion properties ensure the HDPE pipe has a higher than traditional pipe transmission capacity, but also reduce the pipeline pressure loss and water consumption.

Model number	PE-16/63	PE-20/110	PE-50/160	PE-75/250	PE-110/315	PE-200/450	PE-315/630	PE-400/800
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm	400-800mm
Max output	150kg/h	200kg/h	350kg/h	350kg/h	350kg/h	450kg/h	850kg/h	850kg/h
Production rate	1-15m/min	1.2-12m/min	0.6-8m/min	0.5-4m/min	0.4-3.7m/min	0.3-3m/min	0.2-2m/min	0.1-1 m/min
Extruder model	SJ-65/30	SJ-65/33	SJ-75/33	SJ-75/33	SJ-75/33	SJ-90/33	SJ-120/33	SJ-120/33
Installed power	85kw	110kw	125kw	180kw	260kw	325kw	480kw	600kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm	1300
Installation area	35x3.0x2.0m	38*3.1*2.2m	38*3.1*2.2m	40*3.2*2.4m	42*3.2*2.4m	52*3.3*2.6 m	60*3.5*2.8m	68*3.6*3.0m
