PE/PP Full Automatic Washing and Drying Machine

Name: PE/PP Full Automatic Washing and Drying Machine
Brand: China-Manufacturer-Directory.com
SKU: 699267762
Availability: InStock
Rating: 4.5 (41 reviews)

Supplier:	Fuyang Sunrise Machinery Co., Ltd.
Price:	US $ 20000-40000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	300-500kgs/h
Markets:	South America,Southeast Asia,Africa,Mid East
Item:	PE/PP Full Automatic Washing and Drying Machine
Capacity:	300-500kgs/H
Material:	PE/PP Film
Convey Length:	4000mm
Motor Power Of Conveyor:	2.2kw
Blades:	SKD11
Size Of Entrance:	550X400mm
Power Of Film Crusher:	30kw
Power Of Friction Machine:	22kw
Rotary Speed Of Friction Machine:	1500rpm
Certification:	ISO9001:200.
Automation:	Automatic
Product Type:	Pe Film

Product Description

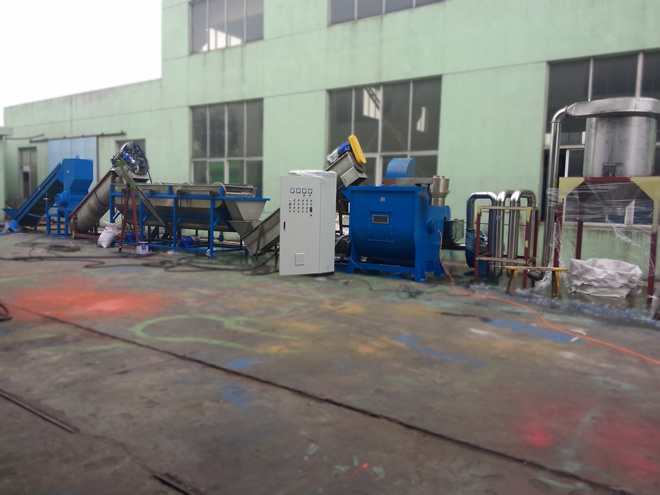

PE/PP full automatic washing and drying machine

Description:
Suitable material:PE/PP Film
Capacity:(300-500kgs/h)
Technical data

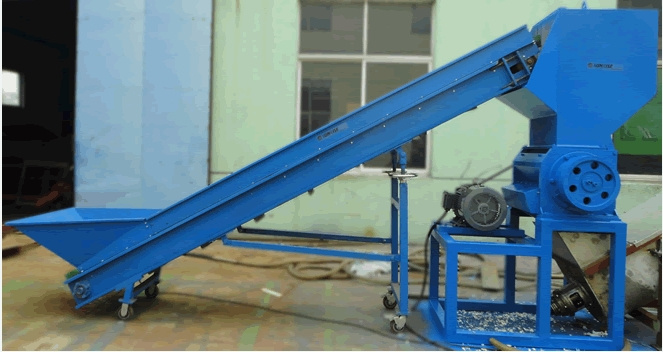

Conveyor
Convey length:4000mm
Motor power:2.2Kw
Width of convey belt:600mm
Belt thickness:4mm
Hight of conveyor can be adjusted
Film crusher
Model:SFX-221A
Capacity:500-800kgs/h
Rotation diameter:380mm
Rotary blade:2 pcs x 3 lines
Fixed knife:1 pcs x 4 lines
Size of entrance:550x400mm
Dia of screen:16mm
Blades:SKD11
Cooling method:by water
Power:30kw
Friction machine
Power:22kw
Rotary speed:1500rpm
Capacity:500-600kgs/h
Material:Stainless steel
Thickness:3mm
Film rinse tank
Power of beater motor:2.2kw X 2 pcs (speed control by Delta inverter)
Discharge screw motor power:1.5KW
Mixing motor:2.2KW
Rinse beater:4 pcs
Effective washing length :4000 mm
Tank width:1200 mm
Tank height:1200mm
Material:Stainless steel 201

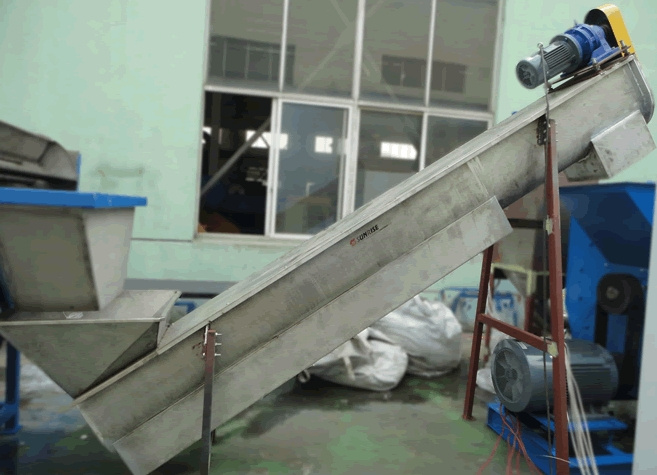

Screw feeder (with friction)
Screw diameter:φ380mm
Length:4000mm
Motor power:3Kw
Capacity:500kg/h
Material:Stainless steel
Film dewater
Motor power:45Kw
Speed:1500rpm
Material of machine:Stainless steel 202
Material of screen:Stainless steel 304
Water discharged in the bottom

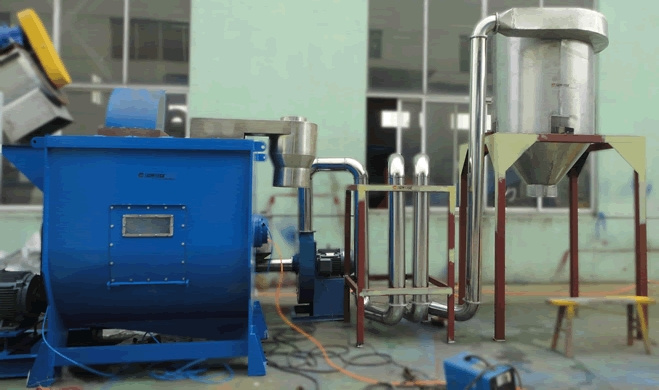

Drying system
Power of air blower:11kw
Heating power:36kw
Material: stainless steel
Diameter of pipe:159mm
Storage silo
Cubage:1 cube meter
Silo is stainless steel
Control system
Inverter brand:Delta
Breaker brand:DELIXI
Contactor brand:CHINT

Hangzhou Sunrise Machinery Co., Ltd. Established on August, 6th. 1990. We are specialized in Plastic extruder, Plastic recycling machinery. We have our own R&D team and manufacture centers. So we can as per our customer's special requirements to supply and making the advanced and high quality machines. In order to expand the international markets, we have cooperated with some of our partner factory to establish a branch company: Fuyang Sunrise Machinery Co., Ltd. For exporting the machine and importing the parts which we need.

In accordance with years of experiences in plastic machinery manufacturing, we have formed plastic pipe, profiles extrusion and plastic recycling machinery 3 series, and have the ability to do the turnkey projects of plastic industry.

We are very attentive to improve the quality and after service. One year Guarantee, one year free parts and 24 hours technic supporting are our routine.
