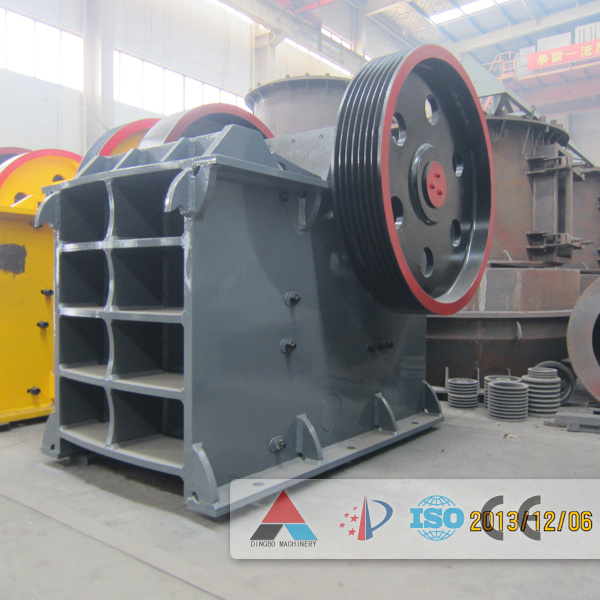

PE600X900 Rock Stone Jaw Crusher for All Kinds Stones Crushing
Product Description
Jaw Crusher is widely used in the world market mining industry nowadays, for primary crushing of hard rocks and block materials.
The large and medium-size crushers are the key products of our company and stand in the front of the industry in the aspect of design and production.
For all the machinery, the maintenance is very important. In the stone crusher equipment, jaw crusher is dominant, and in maintenance pay attention to the way. To ensure regular work, in addition to proper operation, planned maintenance is need, including routine maintenance inspection, overhaul, repair, and minor repairs.
Work principle:
PE series jaw crusher adopts extrusion crushing. Its working principle is as follows: The motor drives belt and pulley wheel, making the movable jaw upside and down through the eccentric shaft. When the movable jaw rises, the angle between toggle plate and movable jaw becomes large, and the movable jaw plate is pushed close to the fixed jaw plate, meanwhile the materials are crushed or milled, rubbed to realize the crushing purpose. On the contrary, when the movable jaw down, the angle becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the rod and spring. Then materials have been crushed are discharged from the bottom opening of crushing cavity. With the continuous rotation of the motor, the movable jaw cyclically crush and discharge materials, realizing mass production.
Jaw Crusher Features and Benefits :
1. The cavity of jaw crusher is deep and no dead area, so it prompts the feeding capacity and output.
2. The size of the reduction ratio is big and the production size is even.
3. Adjustment device of the spacer style discharge mouth is convenient and reliable. And jaw crusher's adjustment range is big what improves the flexibility of equipment.
4. Lubrication system of jaw crusher is safe and reliable. Unit replacement is convenient. And the work of maintenance is small.
5. Its structure is simple and operation is reliable. The operation charge is low.
6. Energy conservation : single machine's energy conservation 15%-30% and the machine system energy conservation is more than twice of the single machine.
7. The adjustment range of the outlet is big, so it can satisfy the requirement of different customers.
8. The noise of jaw crusher is low and dust is little.
Technical Parameters of Jaw Crusher
| odel | Max. Feeding Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
| PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275×1240 | 2.8 |
| PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732×1653 | 6.5 |
| PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921×2000 | 10.3 |
| PE600×900 | 480 | 65-160 | 60-130 | 75 | 2290×2206×2370 | 16.5 |
| PE750×1060 | 630 | 80-140 | 80-180 | 110 | 2620×2302×3110 | 29 |
| PE900×1200 | 750 | 95-165 | 140-260 | 110 | 3789×2826×3025 | 54.5 |
| PEX250×750 | 210 | 25-60 | 10-40 | 22 | 1667×1545×1020 | 5 |
| PEX250×1000 | 210 | 25-60 | 15-50 | 30 | 1550×1964×1380 | 6.5 |
| PEX250×1200 | 210 | 25-60 | 20-60 | 37 | 1560×2104×1415 | 7.7 |
Ph:+86-15821950545
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.
The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.
Our main products include:
1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.
2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.
3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.
Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.
Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.
We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
