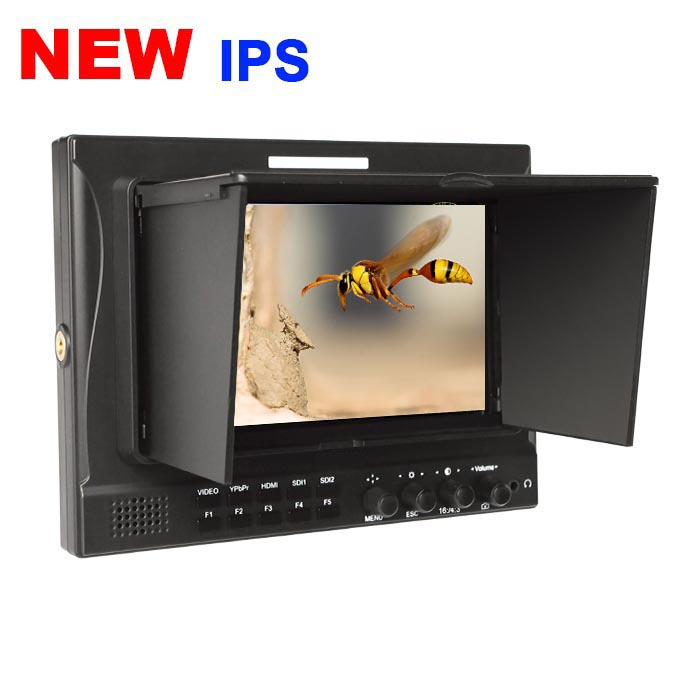

Peaking Focus IPS Panel 7" Camera Monitor for Broadcasting

Supplier:	Zhangzhou Yi Chen Trading Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	789
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution:	1280X800
Contrast Ratio:	800:1
Brightness:	400CD/M2
Response Time:	25ms
Viewing Angle:	89°/89° (L/R), 89°/89°(U/D)
Input Signal:	3G/HD/SD-Sdix2,HDMI,YPbPr,Video, Audio
Output Signal:	3G/HD/SD-Sdix2,HDMI,YPbPr,Video
Input Voltage:	DC 7-24V
Type:	Camera LCD Screen
Compatible Brand:	All

Product Description

Peaking Focus IPS Panel 7" Camera Monitor for Broadcasting

Advanced Features:

· Peaking Focus Assist(Red/Green/Blue/ White)
· Camera 5 D II Mode, Check Field
· Scan Mode, False Color, Exposure
· BrightnessHistogram, Image Flip
· Squared Sementation, Freeze Input
· Screen Marker, Aspect Ratio
· Pixel to Pisel, Center Marker
· Color Temp-Adjust, Vector scope
· RGB Histogram, Waveform
· Zoom in( 4X, 9X, 16X)

Model Number	789
Resolution	1280x 800 pixels
Dot Pitch	0.117(W) x 0.117(H) mm
Brightness	400cd/m 2
Contrast	800:1
Aspect Ratio	16:10
Backlight	LED
Response Time	25 ms
Viewing Angle	89°/89° (L/R), 89°/89°(U/D)
Inputs	3G/HD/SD-SDIx2,HDMI,Ypbpr,Video, Audio
Outputs	3G/HD/SD-SDIx2,HDMI,Ypbpr,Video
SDI Support Mode	ITU-R BT.656:576i
	SMPTE-125M:480i
	SMPTE-274M: 1080i(60/59.94/50) 1080p(30/29.97/25/24/24fps/23.98/23.98fps)
	SMPTE-296M: 720p(60/59.94/50/30/29/25/24/23.98)
	SMPTE-424M:1080i (60/59.94/50) 1080p(60/59.94/50)
HDMI Support Mode	480i/576i/480p/576p
	1080i(60/59.94/50)
	720p(60/59.94/50/30/29/25/24/23.98)
	1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
YPbPr	480i/576i/576p
	1080i(60/50)
	720p(60/50)
CVBS(Video)	NTSC 480i, PAL 576i
Power Consumption	≤ 13W
Input Voltage	DC 7-24V
Battery Plate	F970,P-D28S,LP-E6,V-Mount, Anton
Install Way	1/4"-20 Thread Socket(All 4 Sides)
Working Temperature	-20 °c to 50°c
Storage Temperature	-30 °c to 60°c
Unit Size	210Lx160Wx31.5H(mm)
Unit Weight	630g
Standard Accessories	Hot Shoe x1, Sun cover x1, Mini HDMI Cable x1, Battery Plate x1 ,Tally Indicator x1, Manual x1
Optional Accessories	Power Adaptor, U-Bracket Mount ,BNC Cable, Anton Battery plate, V-Mount Battery Plate ,
