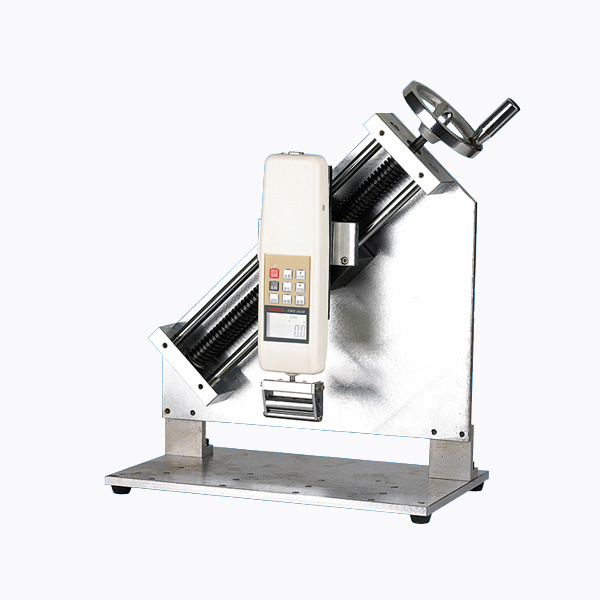

Peel Strength Testing Machine, Usage: Peel-off (ABL-90)
Product Specifications
| Prod Model: |
ABL-90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Abl-90 |
| Name: |
Vertical Peel-off Force Test Stand |
| Power: |
Hydraulic |
| Usage: |
Peel-off |
| Effective Trip: |
150 Mm |
| Test Effective Area: |
105*100mm Largest Can Reach105*152mm |
| Max Test Loads: |
500n |
Product Description
Specially use in test the PC board copper foil electro circuit adhesive force or the tinfoil, the aluminum foil etc.
Functions:
Peeloff Force Test Stand is specially designed for NK, HF series Push pull equipment, can Be combined into the test machine with different uses. Specially used in PC board on foil Circuit adhesion force or Tin foil, aluminum foil, tape etc. Hit the object surface firmness.
In view of vertical dissect the test sample. To measure the actual strength.
Features:
Manual operation, ladder type screw transmission, simple and stable operation.
This frame can be installed in table face, to make the test stand more stable.
|
Model Number |
ABL-90 |
|
Power |
Hydraulic |
|
Usage |
peel-off |
|
Effective trip |
150 mm |
|
Test effective area |
105*100mm largest can reach105*152mm |
|
Max test loads |
500N |
Wenzhou Tripod Instrument Manufacturing Company Limited is established in 2003 years, (the original company's name is Aliyiqi instrument co. Ltd. ) it is a high-tech enterprise integrating R&D, manufacture, service and trade. Our factory is located in the south foothill of Yandang Montain - Yueqing urban area.
Our company has strong technical strength, excellent design, comprehensive process control and reliable detection means to provide users with cost-effective mechanical equipment. And partial products have through the European Union CE Certification
Our main products are: Force gauges, tension gauge, durometer, and matching manual and electric test stand, which they are suitable for various trades and industries: Electronic appliances, wires and cables, electromagnetic machinery, auto parts, power machinery, chemical glue, building doors and windows, plastic and plastic woven, spring manufacturing, medical equipment, fire equipment, printing and packaging, razor industry, fishing gears, aviation, zipper buttons, textiles, coal, furniture, elevators, lighters and ignition devices, locks, pens, as well as research institutions and schools.
QUALITY POLICY:
Our tenet is "make high-quality goods, serve the public" by fine pre-sales, sales, after-sales service. Insure to Achieve the Fixed Quality And Reliability. Pursue Perfect Service to The Customers
