Production Type:

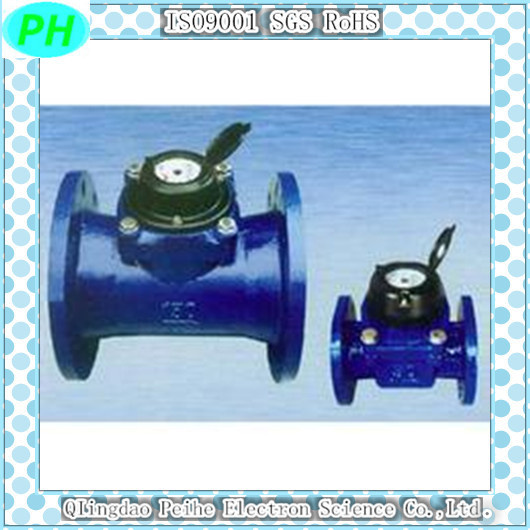

Photoelectric direct reading type remote water meter
Photoelectric direct reading type dry type remote water meter
Photoelectric direct reading type liquid sealed remote water meter
Production Fuction And Feature:
1.The jet type direct reading photoelectric technology, direct reading water meter window value, no accumulative error.
2.Direct reading device in the meter reading instantaneous current, internal is not provided with a power supply, usually does not work without power consumption.
3.Table with address, convenient management and maintenance.
4.Tree routing structure, greatly reduce the workload of construction.
5.Damage resistance. The meter adopts photoelectric direct reading technology, data and a character wheel digital never lost.
6.Anti magnetic. The meter adopts photoelectric devices, completely without electromagnetic interference.
7.High reliability.Low failure rate.The meter adopts the non-contact photoelectric technology, operation without mechanical contact, no mechanical movement, output data using advanced coding technology, high reliability and low failure rate.
|
name |
unit |
Technical parameters and dimensions |
|
Size |
mm |
15 |
20 |
25 |
.....200 |
Minimum
Reading |
M³ |
0.00005 |
0.00005 |
0.00005 |
- |
Maximum
Reading |
M³ |
9999 |
9999 |
9999 |
- |
|
class |
|
B |
B |
B |
- |
Overload flow
|
M³/h |
3 |
5 |
7 |
- |
|
Commonly Flow |
M³/h |
1.5 |
2.5 |
3.5 |
- |
|
Boundary flow |
M³/h |
0.12 |
0.20 |
0.28 |
- |
|
Minimum flow |
M³/h |
0.03 |
0.05 |
0.07 |
- |
|
H |
mm |
118 |
120 |
125 |
- |
|
B |
mm |
99 |
99 |
101 |
- |
|
L |
mm |
295 |
299 |
347 |
- |
|
L1 |
mm |
165 |
195 |
225 |
- |
|
Threaded connection D |
mm |
G3/4B |
GB1 |
G1/4B |
- |
|
Threaded connection d |
mm |
R1/2 |
R3/4 |
R1 |
- |
Qingdao Peihe Electron Science Co., Ltd. Was founded in 2008, which was principally engaged in process and manufacture of circuit board. The company has through ten years with honest service and self-discipline and social commitment for the business philosophy. Our company with a wealth of production experience, excellent R & D and sales team, to win a high admiration and is widely trusted at home and abroad.
The company is located in Qingdao, Shandong Province near the airport, a beautiful environment, transportation convenience. The company currently has a number of SMT production lines, and lead and lead-free wave soldering line body, equipment are: Automatic printing machine, SMT placement machine, the reflow oven, AOI automatic optical inspection equipment, and wave soldering, DIP welding assembly, testing, manual welding etc.
The company has passed ISO9001 quality management system. All our goods pass through our rigid quality control in factory. All products have passed visual inspection, AOI inspection, full-inspection, , inspection, sampling and inspection procedures. Strict control, so that the quality of the products reach the highest standards.
Our main products: PCBA, printed circuit board, fruit and vegetable washer, universal remote control, gas meter, water meter, electronic piano, drums, all kinds of electronic products.
Currently our major markets were in South and Japan, Many companies cooperating with us have a good repution for us because of our first-class quality and first-class after sale service. We are sincerely looking forward to your coming. We trust that we will make a more brilliant future with our joint effort. If you are interested in our company, welcome to you
