Product Specifications
| Prod Model: |
YP32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Nominal or CNC |
| Voltage: |
220V/380V |
| PLC: |
Mitsubishi / Siemens |
| Electric Units: |
Schneider |
| Motor: |
Tatung |
| Pump: |
Anson / Yuken |
| Pressure Gauge: |
Skon |
| Certificate: |
CE, ISO, SGS |
| Warranty: |
2 Years |
Product Description

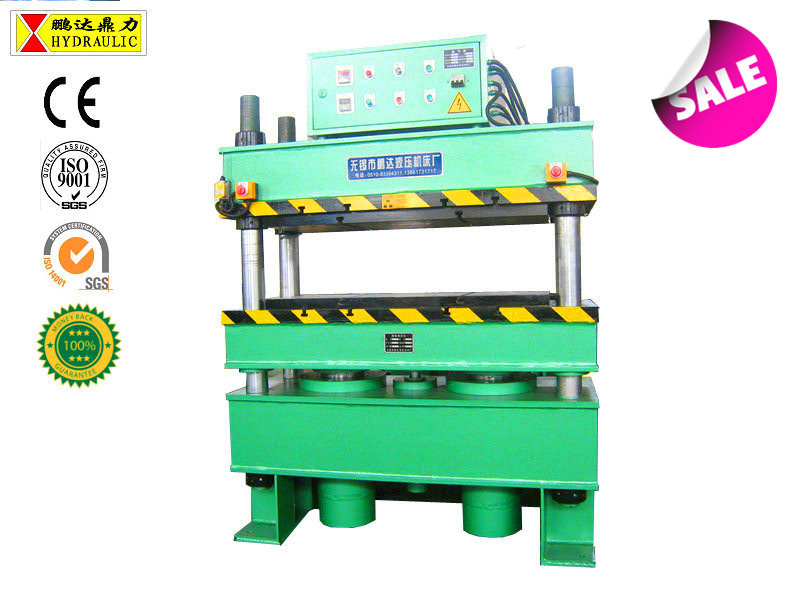

Pengda Four Column Hydraulic Press
Characteristics:
1.3-beam & 4-column compact structure, simple and economical.
2. Cartridge valve control, stable, high efficiency and long life time.
3. Preset pressure forming and preset stroke.
4. High efficiency of cooling device, sutable for continuous production
Application:
Drawing, bending, flanging, cold extruding, blanking processes for metal materials; Straightening, press-in and forming processes for powder and abrasive products, plastic and insulation materials.
Package & Shipping
1. Outside package: Standard export wooden cases or shell feed plate
2. Inner package: Stretch film
Guarantee and After-sale Services
* one year guarantee for whole machine except consumables
* 24 hours technical support by e-mail and telephone
* use-friendly English software, user manual and detailed videos/CD
* abroad installation, commissioning and training(charge)
Company Information
We are specialized in all kinds of Hydraulic Press Machine (Servo Hydraulic Press, C-frame Hydraulic Press, CNC Hydraulic Press, Auto Accessories Hydraulic Press, Motor Buckle Hydraulic Press etc. ). We have long history and got ISO9001, ISO14001, CE, SGS certificate. Till today, our products have already spread over 100 countries and we have office in Philippines, Iran, France, South Africa, Canada, Brazil etc. Offer after service.
|
Type |
Unit |
|
400T |
500T |
630T |
1000T |
1250T |
1600T |
2000T |
|
Nominal force |
KN |
|
4000 |
5000 |
6300 |
10000 |
12500 |
16000 |
20000 |
|
Eject force |
KN |
|
630 |
1000 |
1000 |
2000 |
1000 |
2000 |
6300 |
|
Maximum working pressure of the fluid |
KN |
|
25 |
26 |
26 |
25 |
25 |
25 |
25 |
|
Maximum opening |
mm |
A |
1400 |
1500 |
1500 |
1600 |
1500 |
1900 |
2000 |
|
Maximum slider stroke |
mm |
B |
800 |
900 |
900 |
1000 |
900 |
1000 |
1200 |
|
Maximum eject stroke |
mm |
C |
300 |
360 |
360 |
450 |
400 |
400 |
450 |
|
Slider speed |
down |
Mm/s |
|
100 |
200 |
200 |
100 |
150 |
150 |
200 |
|
working |
Mm/s |
|
15 |
10 |
10 |
10 |
10 |
10 |
22 |
|
return |
Mm/s |
|
65 |
120 |
100 |
60 |
85 |
85 |
160 |
|
Working table size |
L-R |
mm |
D |
1258 |
1400 |
1600 |
2000 |
1800 |
1800 |
2500 |
|
F-B |
mm |
E |
1200 |
1400 |
1600 |
1800 |
1600 |
1600 |
2500 |
|
Working table height |
mm |
F |
650 |
500 |
500 |
500 |
200 |
200 |
0 |
|
Machine size |
L-R |
mm |
G |
3100 |
4070 |
4390 |
7010 |
2670 |
6500 |
4770 |
|
F-B |
mm |
H |
1250 |
1648 |
2150 |
3000 |
1600 |
3900 |
2500 |
|
height |
mm |
I |
4350 |
5348 |
5300 |
5740 |
6000 |
6500 |
6800 |
|
Motor power |
KW |
|
15 |
22 |
60 |
60 |
75 |
75 |
145 |
Wuxi Pengda Hydraulic Machine Factory is specialized in hydraulic press machine. We are located in a beautiful and strong economy city and near Shanghai.
We are the largest company in China Hydraulic Press Town, founded in 2003, with 30, 000 square meters worrkshop. We have 5 best engineers and over 30 technological elite, all of them have good technological skills and rich experience. We have advanced design capabilities, strong technical force and rich experience in installation and debugging. Company has a strong processing power, with all sorts of lathe machine, milling machine, planing machine, grinding machine, floor type boring and milling machine, horizontal boring machine, plano-boring and milling machine, numerical controlled flame cutting machine, CNC milling machine production equipment. Complete testing process guarantee each products working well after leave factory.
Our products have 11 series and more than 100 kinds. Single column hydraulic presses, four-column hydropresses, hydraulic rectifying machines, motor press mounting machines, motor aluminum casting machines, digital controlling hydropresses, plastic product hydropresses, thin plate stretching machines, universal hydropresses and desktop hydraulic presses are Our main products. It is mainly applicable in various motor industries, such as thin plate stretching, powder metallurgy, electronic meters, plastic products and motorcycle and automobile manufacture etc. We got CE, ISO9001, ISO14001 certificate, and till today, our products spread most China city, Europe, South Africa, Middle East, South America and Southeast Asia etc.
Hydraulic press, of course Pengda! We are looking forward to cooperation with you!
