Perforated Metal (for Diffusers)

Perforated Metal (for Diffusers)
Supplier: Anping Qinghe Metal Mesh Co., Ltd.
Price: US $ 13/Square Meter
Min Order: 100/Square Meter
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: Perf-A-007
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size: Width and Length at Request
Usage: Solid Filter
Type: Perforated Metal Mesh
Material: Metal
Hole Shape: Round

Product Description

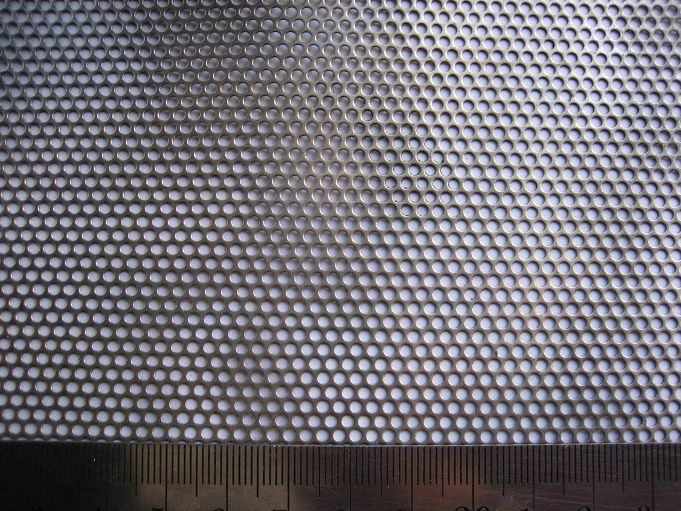

The Perforated metal is used inside of the Muffler/Diffuser. Usually, it is small round hole. In this way, the waste air or waste water can be filtered outside.

Our company as the largest perforated metal manufacturer in north of China since 1998. We can perforate multiple kinds of metals such as plain steel, Gal. Steel, stainless steel, aluminum alloy, brass, copper, phosphor bronze and we can perforate metal with thickness from 0.05mm to 20mm. Anping Qinghe perforated Metal Mesh Factory is one of the leading manufacturers in perforated metal mesh field in China.

Features: Also named Punched Mesh, It can be supplied in folded or flat panels. From various metal plate. Punched openings can be round, square, triangle, diamond, hexagonal, cross, etc.

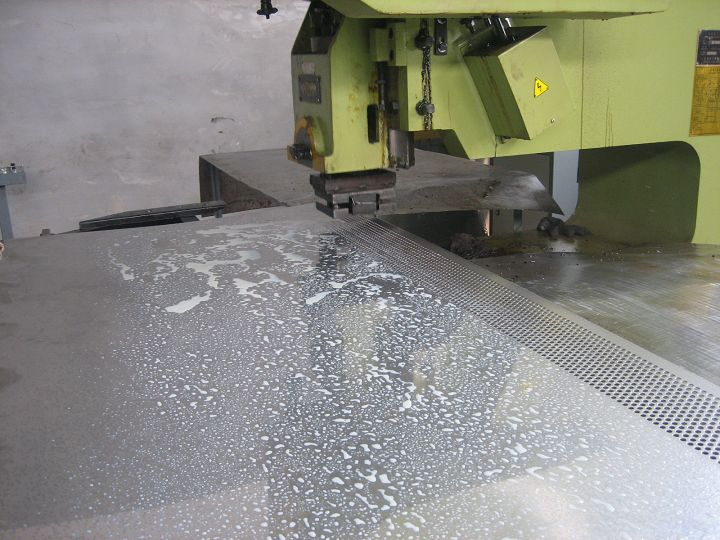

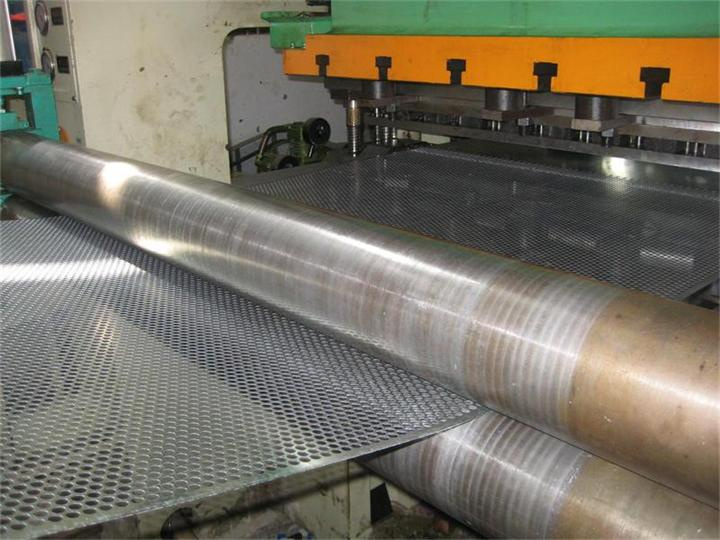

Note: We got digital machine to punch sheets and big machine to produce perforated metal in coils

Packing: Crate or Pallet.




DESCRIPTION HOLE SIZE PITCH OPEN AREA THICKNESS
  (mm) (mm) (%) 0.4mm 0.5mm 0.8mm 1.00mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm
R0.8 T2 0.80 2.00 15 ** ** **
R1 T2 1.00 2.00 23 ** ** ** **
R1.2 T2.25 1.20 2.25 26   ** ** **
R1.2 T2.5 1.20 2.50 21   ** ** **
R1.5 T2.75 1.50 2.75 27   ** ** ** **
R1.5 T3 1.50 3.00 23   ** ** ** **
R1.8 T3.5 1.80 3.50 24   ** ** ** ** **
R2 T3 2.00 3.00 40   ** ** **
R2 T3.5 2.00 3.50 30   ** ** ** **
R2 T4 2.00 4.00 23   ** ** ** ** **
R2.5 T3.5 2.50 3.50 46   ** ** ** ** ** **
R2.5 T4 2.50 4.00 35   ** ** ** ** ** **
R2.5 T4.5 2.50 4.50 28   ** ** ** ** ** **
R2.5 T5 2.50 5.00 23   ** ** ** ** ** **
R3 T5 3.00 5.00 33   ** ** ** ** ** ** **
R3 T6 3.00 6.00 23   ** ** ** ** ** ** **
R3.5 T5 3.50 5.00 44   ** ** ** ** **
R4 T5 4.00 5.00 58   ** ** **
R4 T6 4.00 6.00 40   ** ** ** ** ** **
R4 T8 4.00 8.00 23   ** ** ** ** ** ** ** **
R5 T7 5.00 7.00 46   ** ** ** ** ** **
R5 T8 5.00 8.00 35   ** ** ** ** ** ** ** **
R5 T10 5.00 10.00 23   ** ** ** ** ** ** ** ** **
R5 T25 5.00 25.00 4   ** ** ** ** ** ** ** ** **
R6 T8.5 6.00 8.50 45   ** ** ** ** ** ** **
R6 T9 6.00 9.00 40   ** ** ** ** ** ** ** **
R6 T10 6.00 10.00 33   ** ** ** ** ** ** ** ** ** **
R7 T10 7.00 10.00 44       ** ** ** ** ** ** ** **
R8 T11 8.00 11.00 48       ** ** ** ** ** ** ** **
R8 T12 8.00 12.00 40       ** ** ** ** ** ** ** ** **
R8 T15 8.00 15.00 26       ** ** ** ** ** ** ** ** **
R10 T13 10.00 13.00 54       ** ** ** ** ** ** ** **
R10 T14 10.00 14.00 46       ** ** ** ** ** ** ** **
R10 T15 10.00 15.00 40       ** ** ** ** ** ** ** ** **
R10 T18 10.00 18.00 28       ** ** ** ** ** ** ** ** **
R12 T16 12.00 16.00 51       ** ** ** ** ** ** ** **
R12 T17 12.00 17.00 45       ** ** ** ** ** ** ** ** **
R15 T20 15.00 20.00 51       ** ** ** ** ** ** ** ** **
R15 T21 15.00 21.00 46       ** ** ** ** ** ** ** ** **
R20 T25 20.00 25.00 58       ** ** ** ** ** ** ** ** **
R20 T27 20.00 27.00 50       ** ** ** ** ** ** ** ** **
R20 T28 20.00 28.00 46       ** ** ** ** ** ** ** ** **
R20 T30 20.00 30.00 40       ** ** ** ** ** ** ** ** **
R25 T34 25.00 34.00 49       ** ** ** ** ** ** ** ** **
Anping Qinghe Metal Mesh Co., Ltd. Began operation in 1980. As a leading manufacturer of Metal Mesh in China, through constant research and innovation and with more than 33 years' experience in the field of Metal/Wire mesh, It has became the No. 1 manufacturer in the north of China.

Anping Qinghe Metal Mesh Co., Ltd. Specializing in the production and export of diversified Metal Mesh and Screen, including Perforated Metal, Expanded Metal, Welded Wire Mesh, Razor Wire, Sieving Screen, Woven Wire Mesh, Fencing etc. Also Qinghe experts and technicians have developed some new products, such as Polyurethane Screen, Conveyor Belt and Decorated Mesh. We enjoy first-classproduction technology and rich management experiences especially on manufacture of Perforated Metal, Expanded Metal Mesh and Welded Wire Mesh.

Our business philosophy is long-term cooperation, which encourages us to improve every day in terms of Quality Control, Management ect. Most of our customers have been cooperation with us for years. Once starting to use our
products, you are most likely to purchase from us for the second orders and all your future orders. Untile the year 2014, we have been serving customers from more than 40 countries globally including USA, Canada, Mexico, Chile, Argentina, UK, Germany, France, Italy, Greece, Norway and North Africa etc.
