Product Specifications
| Prod Model: |
PM35L-048 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Excitation Mode: |
PM-Permanent Magnet |
| Type: |
Magnetic-Electric |
Product Description
PM STEPPING MOTOR
1)Applications:
Our products can be applied to printing equipment ,advertisement instrument ,ATM machines, stage light equipment ,CNC machine, automatic assembly equipment, camera lenses, carving machine, cutting machine, electric vehicles, packing machine, industrial control, intelligent ball, laser engraving, textile machine ,game machine ,robots and so on.
2)Features
Features:
a)Precise Position Control, linear Speed Selection, forward & Reverse, Pause and Holding Function, long life
b)Low Vibration, Low Noise, low cost, High Speed, High Torque, High Performance, low inertia and high accuracy
c)we can adjust motor specifications and shaft szie according to your special requirements.
3)Operating Principle
Our stepper motor is made up of rotor and stator winding magnet coil. A certain electric current goes through the stator winding timely, then produces a rotating magnetic field within the motor. Under the action of magnetic suction, the rotor will follow this creates a rotating magnetic field, the stator and rotor flux in each chain, produce rotary torque output.
4)specifications:
model | voltage | resistance | holding torque | detent torque | starting frequence | running frequence | pull-in torque | step angle | exciting mode |
| PM35L-048 | 5V | 13Ω | 550gf.cm | 110gf.cm | 320PPS | 3500PPS | 100/200 | 7.5°/(2-2) | bipolar |
| PM35L-048 | 12V | 30Ω | 600gf.cm | 110gf.cm | 350PPS | 400PPS | 180/200 | 7.5°/(2-3) | unipolar |
| PM35L-048 | 24V | 316Ω | 450gf.cm | 100gf.cm | 300PPS | 360PPS | 100/200 | 7.5°/(2-4) | bipolar |
| PM35L-048 | 9V | 14Ω | 580gf.cm | 80gf.cm | 410PPS | 450PPS | 150/200 | 7.5°/(2-5) | unipolar |
|
|
|
|
|
|
|
|
|
|

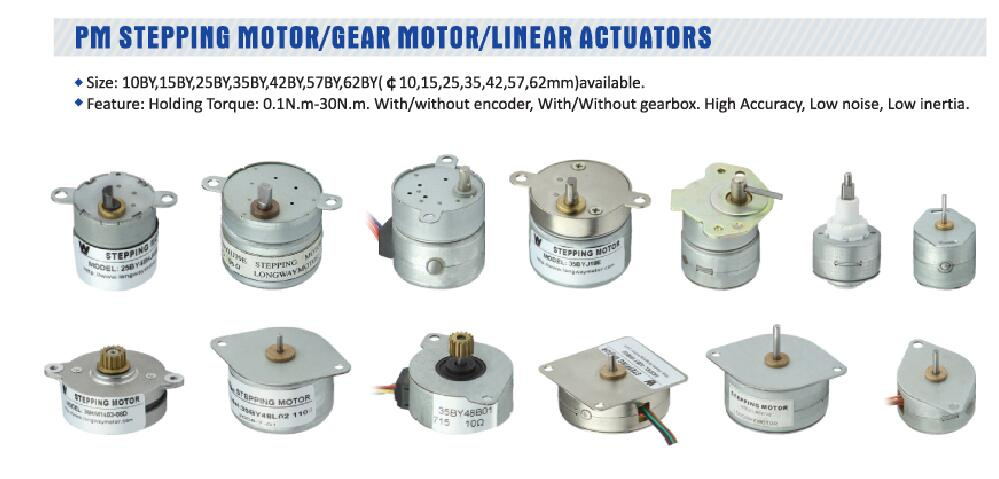

Product show:
Longwaymotor welcomes you!
Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.
The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.
"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
