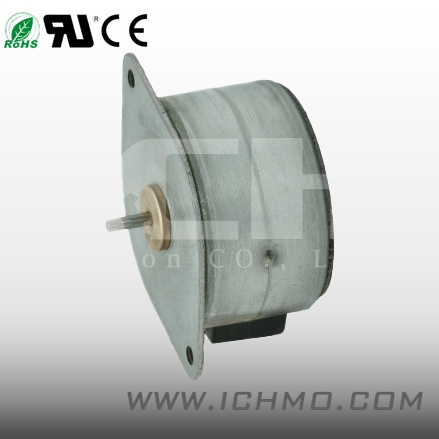

Permanent Stepper Motor Gear with Low Noise P354 (35mm)

Name: Permanent Stepper Motor Gear with Low Noise P354 (35mm)
Brand: china-manufacturer-directory.com
SKU: 768749935
Availability: InStock
Rating: 4.9 (38 reviews)

Supplier:	I. CH Motion Co., Ltd.
Price:	US $ 3/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	P354
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	35mm
No. Of Phase:	4
Step Angle:	3.75-7.5
Voltage:	12V
Resistance:	60-120ohm
Starting Frequency:	450-70p.P.S
Pulling Torque:	800-3200g.Cm
Detent Torque:	1600g.Cm
Manufacturing Method:	Cast Gear
Type:	Circular Gear
Toothed Portion Shape:	Pm Motor

Product Description

I. CH MOTOR - PM Stepper Motor Gear P354(35MM)

Specifications:
-No. Of Phase: 4
-Step Angle: 3.75-7.5°
-Voltage: 12V
-Resistance: 60-120ohm
-Starting Frequency: 450-700p. P. S
-Pulling Torque: 800-3200g. Cm
-Detent Torque: 1600g. Cm

Specification
MODEL	No.of phase	Step Angle	Voltage	Speed Ratio	Resistance	Starting Frequency	Pulling Torque (100P.P.S)	Detent Torque	Wiring	Figure
MODEL	No.of phase	°	V		Ω	P.P.S	g.cm	g.cm
P354-0805	4	7.5	12	1:8525	120	≥450	≥800		1
P354-2605	4	5.625	12	1:80	120	≥600	≥2600		2
P354-3205	4	3.75	12	1:42.5	60	700	≥3200	≥1600	3
P354-2005	4	3.75	12	1:42.5	95	600	≥2000	≥1600	3
P354-1805	4	3.75	12	1:42.5	120	600	≥1800	≥1600	3

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
