Price: | US $ 30-40/Square Meter |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Square Meter |
Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Products | Application | Feature |
Anti Alkali Fabrics | 1,Widely used in environmental protection,paper,industry waster water treatment,etc. 2,Eespecially can be used in 100ºC,alkali content ≤20%. | High alkali resistance corrosion resistance, wear resistance , high durability and best tensility,long life service stable physical property against heat |
Model No. | Filament diameter | Density | Tensile strength | Weight | thickness | Air permeability | CFM | L//S | Material | ||||||||
mm | root/cm | N/cm | |||||||||||||||
warp | weft | warp | weft | surface | joint | Kg/ | mm | m3/h | 127/pa | 200pa | |||||||
121104 | 0.9 | 1.1 | 12.8 | 3.9 | 1600 | 900 | 1.85 | 3.05 | 9600 | 600 | 3700 | PA66 | |||||
15905 | 0.9 | 0.9 | 15.3 | 5 | 1600 | 900 | 2 | 2.77 | 6800 | 425 | 2610 | PA66 | |||||
061204 | 1.2 | 1.2 | 7 | 4.3 | 1600 | 900 | 1.9 | 2.9 | 6896 | 431 | 2670 | PPS |
Specification of Desulfurization fabrics
Model No. | Filament diameter(mm) | Density(root/cm) | Tensile strength(N/cm) | Weight | Thickness | Air permeability | L/m2/S | Filter precision | |||
warp | weft | warp | weft | surface | joint | Kg/m | mm | m3/m2h | CFM(127/pa) | um | |
27508 | Flat Yarn50×32 | 60*0.18+0.50 | 28.5 | 25 | 2200 | 1000 | 1.2 | 1.95 | 1600 | 100 | 50-80 |
27508-1 | Flat Yarn50×32 | 600D+0.50 | 28.5 | 21 | 2200 | 1000 | 0.9 | 1.9 | 720 | 45 | 20-50 |

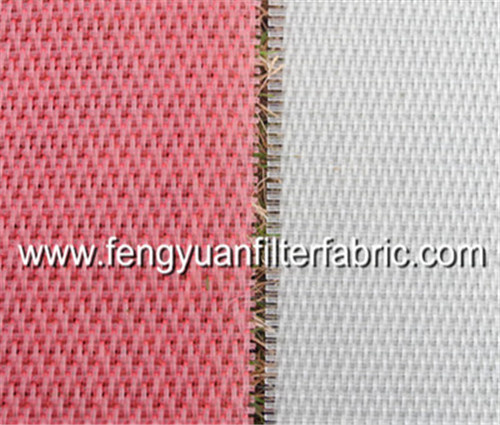

Prod Model: | Anti Alkali Filter Belt |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Maximum Size: | 21.3' Width * 328' Length |
Delivery Time: | 7-15 Days |
Shipping Way: | by Sea, Air, Train |
Application: | Solid-Liquid Separation Filter Industry |
Certificate: | ISO9001 |
Type: | Filter Fabric |
Pattern: | Twill |
Material: | Polyester Monofilament |
Gram Weight: | 500-2000 |
Style: | Woven |
Width: | 0.5m-9m |
