PET Bottled Beverage Juice Processing Machine/Line
Usage:
The series equipment is used for hot filling and sealing of green tea, black tea, wulong tea and fruit juice. The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.
This series machine is adopt block bottle-neck hanging work state design, and be adopt filling valve rise-drop design, It's be satisfy for 95 degree hereinafter hot filling technology demand.
Features:
1) Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
2) Only exchanging "star wheel", "feeding screw" and "arc guide plate" is needed while exchanging model of bottle.
3) The all parts directly contacted with material are all adopted with food stage stainless steel without dead angle,so they can be cleaned easily.
4) Adopting advanced valve to control the inlet flow rate of liquid.
It can keep the slight turbulence of liquid level in the solution barrel and ensure the accuracy in filling.
5) Closing feeding valve automatically while no bottle on machine avoid the loss of aqueous feet.
Filling automatically is with a high speed and the control of liquid level is accurate.
6) The magnetic-constant-torque device is adopted in capping head to ensure the high capping quality without damage.
7) Adopting efficient cap settling system which carried perfect cap feeding and protection device.
8) It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel.
And to adjust the input height is not necessary for exchanging model of bottle.
9) carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.
10) Because of applying touch screen for operation, it is possible to realize man-machine
conversation whereas the status of device running is clear at a glance.
11) The primary electric components such as touch screen\PLC\transducer etc. are all adopted with well known import products.

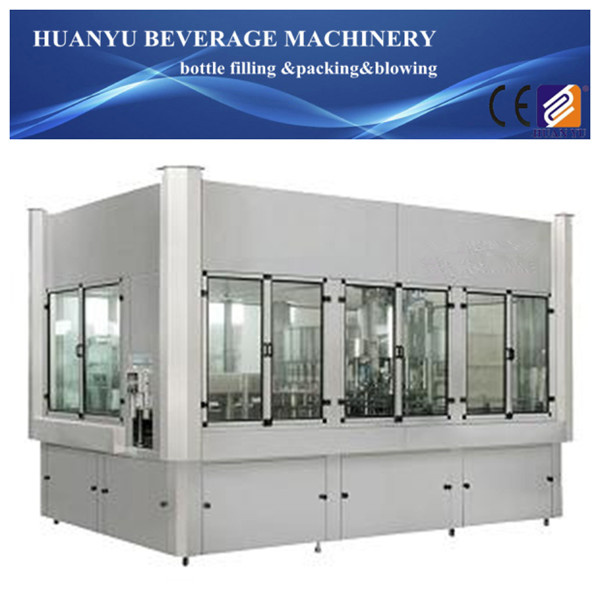

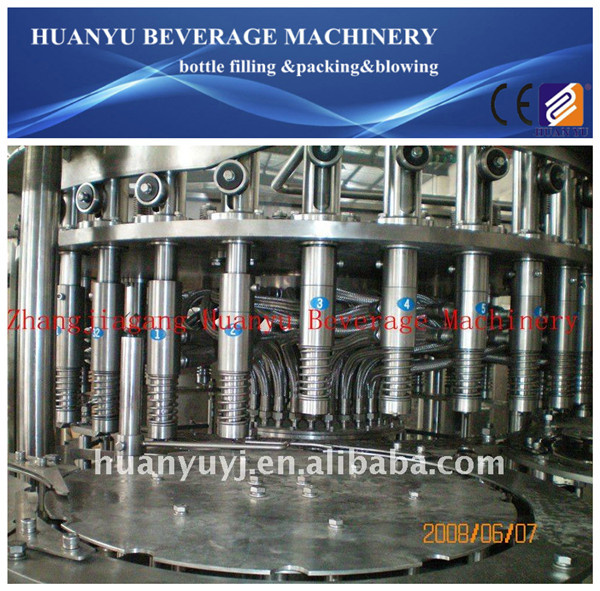

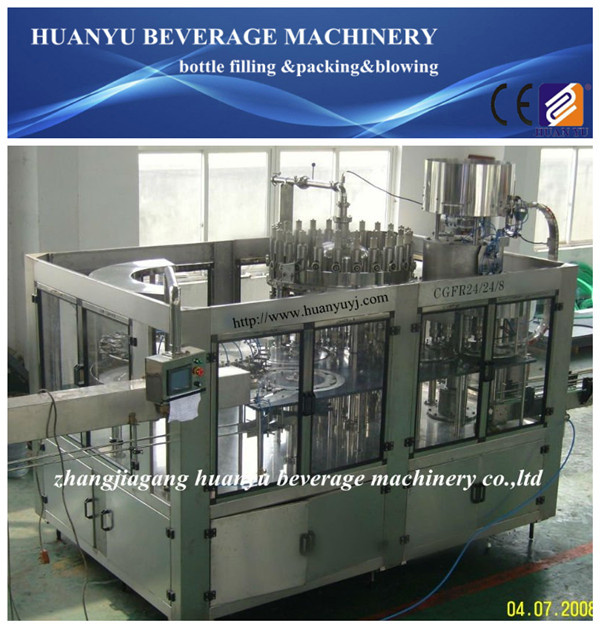

Juice Filling Machine Pictures:
| Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
| production capacity(500ml bph) | 2000-4000 | 5000-7000 | 8000-10000 | 12000-15000 | 16000-20000 |
| filling precision |
1%(liquid level) |
||||
| polyester bottle standard(mm) |
bottle diameter:50-100 height:150-310 |
||||
| suitable cap shape |
plastic screw cap |
||||
| Gas consumption(M3/min) | 0.1 | 0.1 | 0.4 | 0.4 | 0.5 |
| Power(kw) | 2.2 | 2.2 | 3.75 | 5.6 | 7.5 |
| Weight(kg) | 2500 | 3500 | 4500 | 6000 | 8000 |
| dimensions(L*W*H)(mm) | 2350*1800*2250 | 2500*2000*2250 | 2800*2200*2500 | 3800*2800*2800 | 4000*3200*3000 |
| Prod Model: | RCGF18-18-6 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing: | Juice Filling Machine |
| Material: | SUS304 |
| Capacity: | 2000-20000bph |
| Filling Bottle: | Glass/Pet Bottle |
| Filling Vol: | 0.25-2L |
| Filling Type: | Hot Filling |
| Features: | 3-in-1 Monoblock |
| Usage: | Juice,Tea,Milk Drinks,Water |
| Composition: | Filling Machine |
