Product Specifications
Product Description

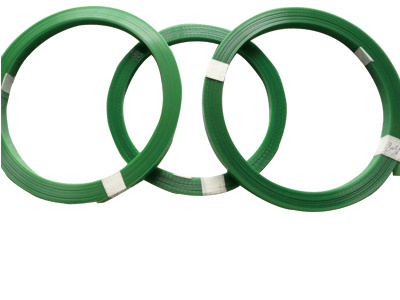

Beverage packaging belt (tech belt) of the main characteristics:
1, the better to resist pulling force. Beverage packaging to the existing anti-harmonic pull, but also has the ductility to good performance is guaranteed good, not broken, you can better ensure the safety of transport of the products.
2, extending small. Beverage packaging belt is a plasticity belt, but its extension changes small, only polypropylene belt (PP belt) sixth, want to maintain power, expanding the size of the packaging material is no longer changes.
3, strong Naiwen performance. According to the empirical evidence, beverage packaging in the melting point of 260 degrees belt, long-term change in the use of 120 degrees, have good stability.
4, good economic returns. Density Polyethylene packaging for 1.30~1.38g/cm3 belt, only harmonic (7.8g/cm3) density 1/6 unit length of the relatively low prices.
5, stylish, beautiful and upgrade cargo grades. Harmonic will absorb moisture from the air and exposed to rust, dust pollution was pervasive strong easy packaging. Beverage packaging to the aesthetic, non-rusting, and the appearance of a sophisticated piece of metal luster, and use it in the packaging of goods will be: A feast appearance.
6, flexibility excellent, easy to operate. No harmonic sharp beverage packaging to the brink and will not hurt the packaging and will not hurt the hand. Cut, no special tools, even tied up very tight and will not cut, wounding, was the operator about, greatly improving efficiency.
7, connecting convenience. Beverage packaging belt attached to the steel to be used can also available manual, automatic packaging and printing connectivity and ultrasound friction Rongjie.
8, green. Beverage packaging belt complete its mission, so it could be recovered by processing the full cost of human resources available to the international trend of environmental protection
9, the specific figures of comparison. In accordance with the ratio of the proportion, by statistics about tech belt harmonic four times, it can be drawn: In the same tensile strength, not to consider the merits of other tech belt, the price per ton tech belt use is far lower than harmonic.
Model | width (MM ) | Thickness (MM ) | Length (MM ) | Split to pull the dint (N ) |
9555 | 9.5 | 0.55 | 3060 | 2130 |
9560 | 9.5 | 0.6 | 2800 | 2320 |
10560 | 10.5 | 0.6 | 2540 | 2570 |
12060 | 12 | 0.6 | 2220 | 2930 |
12062 | 12 | 0.62 | 2150 | 3030 |
12550 | 12.5 | 0.5 | 2560 | 2550 |
12560 | 12.5 | 0.6 | 2130 | 3060 |
12570 | 12.5 | 0.7 | 1820 | 3570 |
14060 | 14 | 0.6 | 1900 | 3420 |
14055 | 14 | 0.55 | 2070 | 3140 |
15555 | 15.5 | 0.55 | 1870 | 3470 |
15560 | 15.5 | 0.6 | 1720 | 3790 |
16060 | 16 | 0.6 | 1660 | 3910 |
16080 | 16 | 0.8 | 1250 | 5220 |
16090 | 16 | 0.9 | 1100 | 5870 |
19060 | 19 | 0.6 | 1400 | 4650 |
19090 | 19 | 0.9 | 940 | 6970 |
