Product Specifications
| Prod Model: |
ORT-2011P-1M1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
180mm X 100mm X 40.5mm |
| Output Type: |
Quad |
| Output Power: |
201 - 300W |
| Input Voltage: |
110-220V |
| Voltage Regulating Mode: |
Width Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
1 Year |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
Product Description
1 Active PFC
2 Multiple Protections Function, (OCP, OVP, UVP, OPP)
3 Safety Approvals, CE, FCC, CB, CCC
Features:

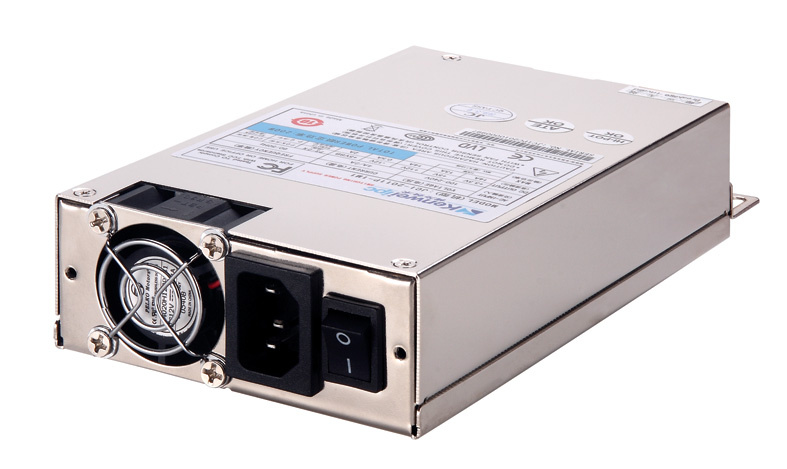

ORT-2011P-1M1 Feature
1 Conformed to 80Plus Type
2 Conformed to IPC 1U Type
3 Output Capacity(200 Watts Continuous)
4 Wide voltage input 90-264VAC
5 Low Ripple & Noise
6 Operation Temperature: 0~50° C
7 Dimension: (180* 100 *40.5mm)
8 40mm Low-Noise Fan
9 Active PFC
10 Life expectancy(MTBF >100, 000 hours)
11 ultiple Protections Function(OCP, OVP, UVP, OPP)
12 Safety Approvals(CE, FCC, CB, CCC)
|
Output Connectors |
20+4Pin
M/B |
4Pin
CPU |
5 Pin
SATA |
4 Pin
Molex |
4 Pin
FDD |
|
1 |
1 |
2 |
2 |
1 |
Specification
|
Model No |
ORT-2011P-1M1 |
|
Output Wattage |
200W |
|
PFC |
Active PFC |
|
Efficiency |
> 80 % Full load |
|
P. G. signal |
100-500 ms |
|
Hold-up Time |
16ms Min |
|
Weight |
1.1 KG |
|
Color |
Silver |
|
Fan |
Single 40mm DC Fan |
|
Dimension |
180mm (L) x 100mm(W) x 40.5mm(H) |
|
Protection |
OCP,OVP,UVP,OPP,Short Circuit Protection |
|
INPUT |
|
Input Voltage |
90-264Vac |
|
|
Input Frequency |
47 ~ 63 Hz |
|
MTBF |
100,000 hrs minimum (at 25 °C) |
|
Input Current |
4A at 115V;2A at 230V |
|
OUTPUT |
|
Voltage |
+5V |
+12V |
-12V |
+3.3V |
+5Vsb |
|
MIN |
0.5 |
0.5 |
0.0 |
0.1 |
0.0 |
|
NOM |
6.5 |
7 |
0.25 |
7 |
1 |
|
MAX |
13 |
14 |
0.5 |
14 |
2 |
|
Units |
AMPS |
AMPS |
AMPS |
AMPS |
AMPS |
