PFIM Residual Current Device
Product Specifications
| Prod Model: |
PFIM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
Product Description

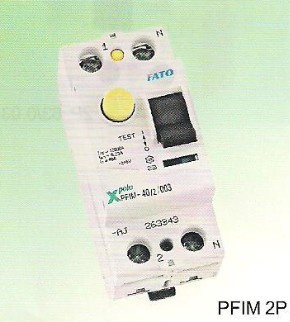

PFIM Residual Current Device
Application:
The Residual Current Device PFIM is in conformity with the standard of IEC61008.
It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.
PFIM RCD is mainly suitable for using in varieties of plants, enterprises, buildings, constructions, commerce, guesthouses and families. It can be used in circuits of 1 phase 230V and 3 phases 400V 50/60Hz.
Number of Poles2P, 4P
Rated Current (A)16, 20, 25, 40, 50, 63
Rated Residual Operating Current (lΔ N)(mA)30, 100, 300, 500
Rated Residual Non-operation Current (lΔ No)(mA)≤ 0.5LΔ N
Rated Voltage (V)AC 230/240
Residual Current Off-time≤ 0.1S
Short Circuit Capacity (ICU)3000A
Endurance≥ 4000
Protection DegreeIP20
Founded in 1987, Shanghai FATO Group Co., Ltd. is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China.
The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 3, 000 employees. During the past 18 years, the Group has invested heavily in both research and development and employee training programs, resulting in a wide range of products that meet the most rigorous requirements of international organizations such as CCC, CE, CB, KEMA, SEMKO, PICC, UL, BS, ISO14001 etc. In 2001 we were recognized by Vouching Technical Inspection Ltd. As an ISO9001: 2000 certified enterprise. In 2004 we were recognized as ISO14001 certified enterprise.
Currently, SHFATO manufacture and export more than 80 varieties of products, with over 1000 types of low voltage electrical apparatus including all kinds of Cable Lugs, Cable Clamps, Line Fittings, Cut Out Fuses, Arresters, Meters, Contactors, Circuit breakers, Relays, Stabilizers, Starters, Inverters, Fuses, Terminals, Connectors, Switches, Timers, Counters, Lightings, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can help us survive and succeed in today's highly competitive market. Hence, we guarantee high quality of all our products, because they all have undergone strict quality control and meet high standards.
