Product Specifications
| Prod Model: |
PGas-41 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Electrochemical Gas Analyzer |
Product Description

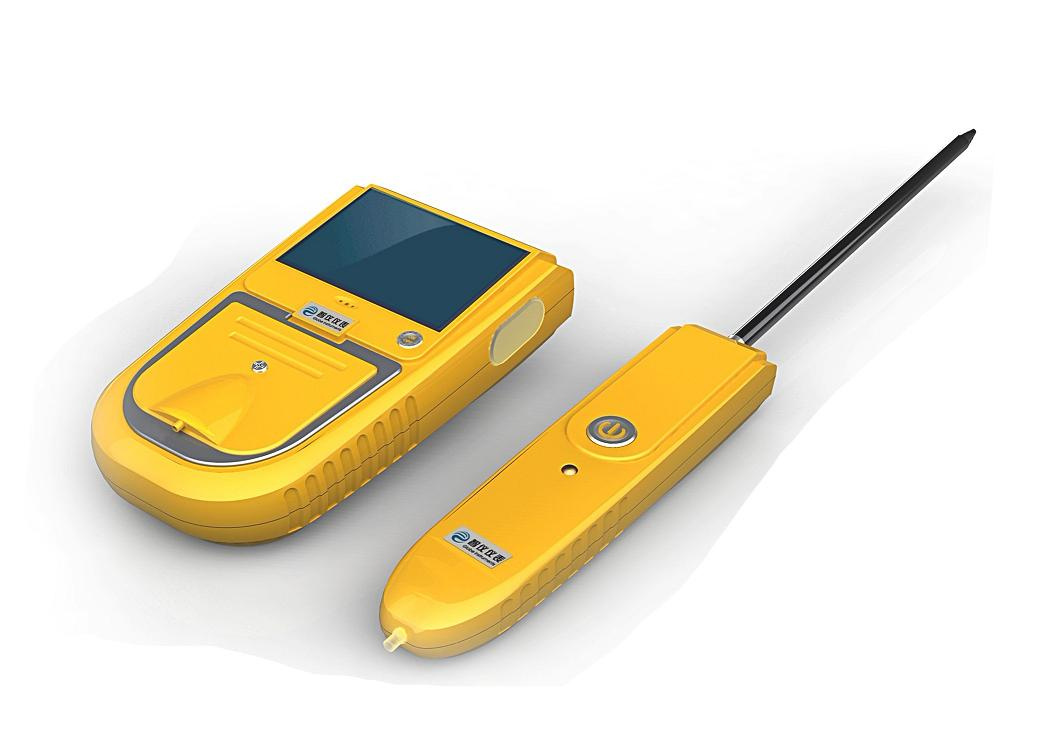

PGas-41 portable multiple gas analyzer
Technical Parameters
Measuring gas Range Accuracy Minimum reading Response time
O2 0~25%vol < ± 5%(VOL) 0.1%vol ≤ 20sec
CH4 0~100%LEL < ± 5%(F. S) 0.1%LEL ≤ 30sec
CO 0~999ppm < ± 5%(F. S) 1ppm ≤ 50sec
H2S 0~100ppm < ± 5%(F. S) 0.1ppm ≤ 50sec
Other Parameters
Temperature -20~50 degree
Pressure 0.9~1.1 standard atmospheric pressure
Humidity 10~95%RH(non condensation)
Explosion-Proof Grade Exia II CT3
Protection Grade IP65
Charging Time 4h~6h
Working Time of Battery > 8 h(non alarm state)
Length of Pump Pipe < 1 meter
Measurement Principle of Sensor Electrochemical, catalytic combustion
Power Supply lithium battery
Dimensions 85*153*50 mm(host machine)
45*239*28 mm(hand shank of gas pump)
Weight about 300g(host machine)
About 80g(hand shank of gas pump)
It can detect O2, CH4, CO, H2S gases at same time.
