a. Bass reflex design on the back;
b. Imported multilayer birch plywood;
c. High-quality durable polyesterimide paint;
d. B&C HF loudspeaker
e. Wide and smooth frequency, clean voice and perfect sound resolution.

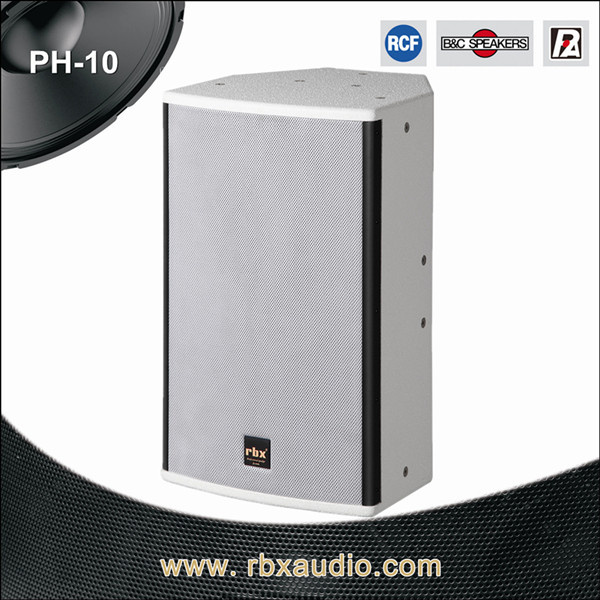

PH-10 is a two-way full-range speaker. To create a compact polygonal design, whose surface is painted with high-quality durable polyester coatings.
PH-10 is equipped with a 10" LF precise driver and a 1" HF precise compression driver. When you use it, you will feel a clean sound, a perfect sensitivity and a wide smooth frequency.
Model | PH-10 single 10 inches 2-way speaker stand |
Drivers | LF: 1×10"voice-coil: 2" |
HF: 1×1"voice-coil: 1.7" | |

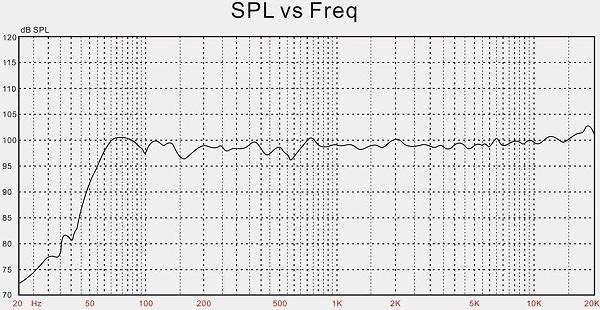

Frequency(±3dB) | 50HZ-20KHZ(±3dB) |
Dispersion(-6dB) | Hor:90° × Vert:60° |
Sensitivity(1m/1W) | 98Db |
Maximum SPL | 122dB Continuous/128dB Peak |
Nominal Impedance | 8 Ohms |
Input power | Rate: 300W/Peak: 1200W |
Recommend AMP | 600W to 1000W into 8 Ohms |
Connectors | 2 × Speakon NL4MP |
Dimensions | 505 × 320 × 345mm (H × W × D) |
Master carton | 575 × 330 × 400 (H × W × D) |
Net Weight | 22.5Kg |
Physical | Polygonal |
Enclosure | Imported multilayer birch plywood |
Grille | Die-casting steel net with circular hole, black sponge inside |
Paint | Polyester coatings (whose color can be customized.) |
Handing Position | M8 screw of installation holes (18 pcs) |
Pole Mount | Bottom: Φ35mm support base |
Prod Model: | PH-10 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | 2-Way Full Range PRO Audio |
Crossover: | Asymmetric Internal Passive Crossover |
Lf Component: | 190mm Magnet with Aluminum Frame |
Hf Component: | 120mm Magnet |
Size Options: | 10", 12" |
Installing: | Hanging, Pole Mount, Stand, Lying Down |
Diaphragm: | Paper |
Capacitor: | Solen |
Clients' Logo: | Acceptable |
Warranty: | 3 Years |
Hi-Fi: | Not Hi-Fi |
Operation Mode: | Wire / Remote Control |
Speaker System: | Optional Combination |
Speaker Material: | Wood |
Application: | Entertainment Venue |
Certification: | CCC |
Noise: | Nun |
Monitor: | Nun |
THD: | <0.05% |
