Guangzhou Glory Light Box Manufacturing Co., Ltd. >> pH6 Full Color LED Screen Display

pH6 Full Color LED Screen Display

Name: pH6 Full Color LED Screen Display
Brand: China-Manufacturer-Directory.com
SKU: 705810662
Availability: InStock
Rating: 4.9 (79 reviews)

Supplier:	Guangzhou Glory Light Box Manufacturing Co., Ltd.
Price:	US $ 1255/Square Meter
Min Order:	1/Piece
Quantity::
Trade Terms:	CIF,EXW

Product Specifications

Prod Model:	LED102
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	220W / m²
Scanning Mode:	1/16 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	UL
Pixel Pitch:	P5.926
Pixel Density:	28476dots

Product Description

Cast aluminum AH6 Indoorfront maintenance Full Color Led Display Specification

Pixel pitch: 6mm

Refresh rate: 1920HZ

Brightness: 800-1200CD/

Cabinet Size: 640mm*640mm

Cabinet Weight: 11.5kg

Indoor Extrusion Aluminium, Quick Assemble

Extrusion Aluminium cabinet 640mmx640mm, 0.1mm gapline between 2 cabinets High technology design, high flatness.

Easily Assemblied Broadcasting Level

Fast locks design, cabinets can be easily assemblied in 5 seconds.

Dual-maintenance, no need Fan, noiseless, low power comsumption.

Vertical/Horizontal 140, CT/Brightness adjustable, broadcasting level.

Support All Media Format and Easy Maintenance

Support all media format , DVI, HDMI, 3G/HD/SD, SDI etc.

HD display intelligent function,detect and display each cabinet working time and temperature.

Easy maintenance, low cost on maintenance, quick assemble, hotplug in power.

Application places

Auditorium, conference room, banquet hall and exhibition presentations, traffic, studio, command and monitor system.

Module features:

1, can be front or rear maintenance,

2,applible for front service because of the magnet design on the module, much easier

for module repairing\disasembly work;

3,unique honeycomb design with high precision,much stable and fla.

Cabinet features:

1,Thermal-conductive & noiseless power supply.

2,Fast lock system-80% higher efficiency in installation.

3,Die-casting aluminum cabinet: High precision and less weight.

4,Applicable for either fixed or rental/hang application, fast and easy set up and tear down, widely

accepted for stage rental business.

5,Available pitch: P5.33, P5.926, P6.67, P8, P10.

Package Parameters:

Gross Weight:93kg(Estimated data,4pcs /Case)

Outer Package Size:780*780*940mm(Estimated data,4pcs /Case)

Packing Material :Flight case

Our service

1. Your inquiry related to our products or price will be replied in 24hrs

2. OEM&ODM, any your customized lightings we can help you to design and put into product

3. Distributorship are offered for your unique design and some our current models

4. Protection of your sales area, ideas of design and all your private information

5. Top quality+Reasonable price+Responsible After Service=Successful & Win

6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package

2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, Mainland China

5. Warranty time: 7years

6. Delivery time: 3-12 working days

5) Uses real pixels rather than virtual pixels, better viewing effect.

Item	Specification Parameter
Pixel Pitch	5.926mm
Material	Cast aluminum
Color	Silver gray
Cabinet Size	640*640mm
Resolution rate	108*108Dots
Module quantity	2*2
Density	28476dots/
White balance luminance	>=6000CD/
Color temperature	6500K-8000K
view angel	H:120;V:120
Protection grade	Before/After:IP65/IP65
Non-Flatness	<0.5mm
Module interval	<0.5mm
Cabinet Weight	13.5kg/Cabinet
Gross Weight(kg)	95.4kg(Estimated data)
Outer Package Size	780780940mm(Estimated data)
Maximal power/	850W/
Average power/	400W/
Frame frequency	≥60Hz
Refresh frequency	≥1920Hz
Gray grade	13bit
Luminance adjusted	256 grade by auto-optic/color &8 grade by hand
Input signal	RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Control system	Novastar / Linsn /
system supports	Windows XP,WIN 7,
MTBF	>5000h
Life-span	>100000h
Speckles rate	<0.0002

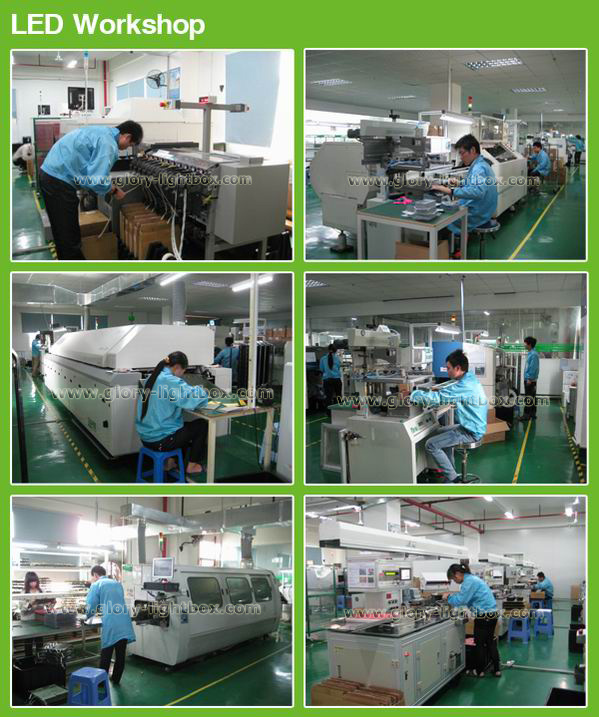

Factory showing:
