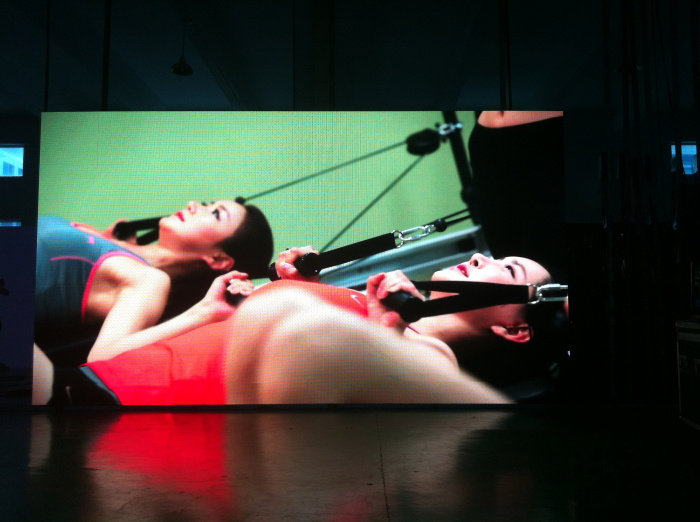

pH6 Indoor LED Display

Name: pH6 Indoor LED Display
Brand: china-manufacturer-directory.com
SKU: 754028125
Availability: InStock
Rating: 4.6 (107 reviews)

Supplier:	Shenzhen Noveled Technology Co., Ltd.
Price:	US $ 510/Square Meter
Min Order:	1/Box
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	PH6 SMD LED display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	192mm*96mm
Cabinet Size:	768mm*576mm
Brightness:	More Than 2000CD/Sqm
Cabinet Material:	Steel
Cabinet Weight:	32kg
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/8 Scan
Certification:	CCC
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	6mm
Pixel Density:	27,777 dots / m²
Application:	Shopping Guide
IP Rating:	IP43
System Operating Platform:	WIN XP

Product Description

PH6 indoor led display detail and specification

Item	Indoor Fixed LED display Series
Pixel Pitch(mm)	4mm	5mm	6mm	7.62mm	10mm
Pixel density(pix/m2)	62500	40000	27777	17223	17223
LED Type	2020	3528	3528	3528	3528
Viewing Angle	H:140°,V:140°
Color Depth(nits)	1500	1500	1500	1500	1500
Drive Method	1/16	1/16	1/16	1/16	1/16
Color Depth	16384
Refresh Rate(Hz)	1200	1600	1600	1600	1600
Module Size(mm)	256X128x13	160X160x13	192X192x13	244X122x13	244X122x13
Cabinet Size(mm)	512X512X93	640X640X93	768X768X93	732X732X93	732X732X93
Cabinet Material	Iron	Iron	Iron	Iron	Iron
Cabinet weight(kg)	14.5	23	32	30	30
Voltage	110/220V
Average.Power(W/m2)	270	160	130	120	120
Max.Power(W/m2)	800	480	380	350	350
IP Grade	IP31
Operating temperature/humidity	Temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity	Temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)	≥50000
Compliant Standard	CE,FCC,RoHS ,CCC

LED Parameters

Item	Luminous Intensity	Viewing Angle(H/V)	Wavelength	Test Condition
Red LED	150-200mcd	120º/120º	620-630nm	25ºC,20mA
Green LED	260-330mcd	120º/120º	520-535nm	25ºC,20mA
Blue LED	55-65mcd	120º/120º	465-475nm	25ºC,20mA

Product Features

Variety of information is available to display:Information about computers, pictures, graphs, two-dimensional and tri-dimensional animation, etc.

Multi-language compatible:Information could be displayed in English, French, German, Greek, Russian and Japanese, etc.

Advanced LED coloration achieves higher brightness at lower temperatures, resulting in less stress and longer life span.

Advanced tri-color calibration and stricter measuring standards achieve precision uniformity and extended endurance.

OIC's indoor LED display panel provides high-quality images as the following characteristics:+high brightness, +high-contrast ratio, +enhanced color uniformity
