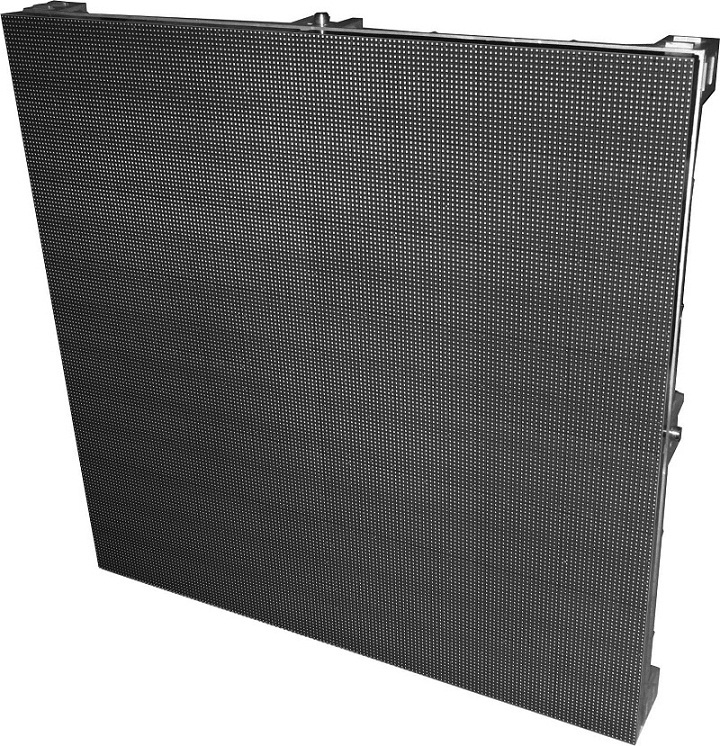

pH6 Outdoor LED Display

Name: pH6 Outdoor LED Display
Brand: china-manufacturer-directory.com
SKU: 755453875
Availability: InStock
Rating: 4.5 (32 reviews)

Supplier:	Shenzhen Noveled Technology Co., Ltd.
Price:	US $ 1717/Square Meter
Min Order:	1/Box
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	PH6 SMD3535 outdoor led display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	192mm*192mm
Module Weight:	0.8kg
Cabinet Size:	960mm*960mm
Cabinet Pixels:	25600 Dots
Material:	Iron or Aluminum
Brightness:	≥5500CD/Sqm
Fresh Frequency:	≥600Hz
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP54
Pixel Configuration:	1R, 1G, 1B
Certification:	CCC
Display Function:	Market Display
Application:	Advertising
Scanning Mode:	1/8 Scan
Average Power Consumption:	220W / m²
Pixel Pitch:	6mm
Pixel Density:	27777dots/Sqm

Product Description

Product Features

- General Module design makes perfect flatness on the surface; minimize the gap between modules & cabinets.

- Ultra high brightness (5500 Nits) with low power consumption (average 500W/sqm).

- High refresh rate with software adjustable, suitable for videos, picture and filming.

- High gray scale (16 bits) with perfect real visual performance and effects.

- High Contrast ratio (2000:1) with self-developed black mask and black coating technique.

- Wide viewing angle (greater than 110° in horizontal); IP65 protection rating.

- Easy and fast installation and maintaining design. (Install or remove a module only takes 8 seconds).

- High reliability and long lifespan (MTBF ≥ 5000 hours). And on-site pixel by pixel brightness and
color correction bring greater uniformity.

LED Parameters

Item	Luminous Intensity	Viewing Angle(H/V)	Wavelength	Test Condition
Red LED	800-900mcd	110º/110º	620-630nm	25ºC,20mA
Green LED	1400-1800mcd	110º/110º	520-535nm	25ºC,20mA
Blue LED	250-400mcd	110º/110º	465-475nm	25ºC,20mA

Module Parameters

Pixel Pitch	6mm
Pixel Configuration	SMD 3535
Module Resolution	32dots*32dots for real
Module Pixels	1024dots
Module Size	192mm*192mm
Module Weight	0.8KG

Cabinet Parameters

Cabinet Size(WHD)	960960150(mm) or customizable
Cabinet Resolution	160dot*160dot for real
Module Quantity	25pcs
Cabinet Pixels	25600 dots
Pixel Density	27777 dot/sqm
Avg. Power Consumption	400W/sqm
Max. Power Consumption	820W/sqm
Material	Iron or Aluminum
Cabinet Weight	48KG for iron cabinet; 36KG for aluminum cabinet

Screen Parameters

Brightness	≥5500cd/sqm
Contrasts (Max. /Min.)	1.1:1
Driving Method	1/4 scan
View Angle	Horizontal 140° Vertical 120°
Optimal Viewing Distance	>6m
Brightness Control	Red, Green and Blue 256 Grade/Each
Fresh Frequency	≥600Hz
Frame Frequency	50 - 60Hz
Input Voltage	AC220V/50Hz or AC110V/60Hz
Defects Rate	≤0.00001
Screen Weight	≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF	>10,000 hours
Life Span	≥100,000 hours
Brightness Uniformity	<3%
Earth Leakage Current	<3mA
Protective Grade	IP65
Temperature-operating	-40°C to 60°C
Humidity-operating	10% to 90%
Operating System	Windows98/me/2000/NT/XP/win7
