Product Specifications
| Prod Model: |
CXB10-40 |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
Product Description

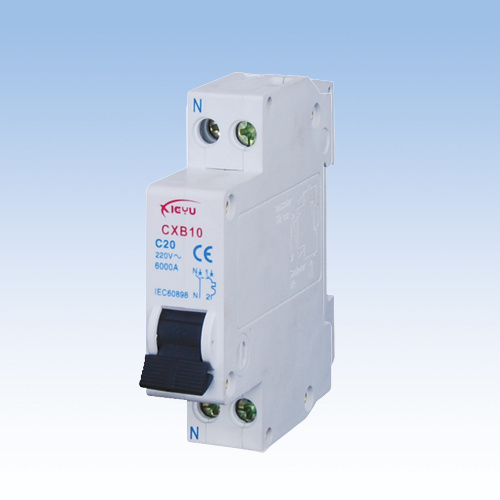

CXB10-40 is applicable to protect line-conductor and overload, and short-circuit of small sealed motors, It is mainly for protection of circuits with AC 230V and 50Hz/60Hz, and for unfrequent conversion under normal conditions as well. Its action can be up to two poles with only one pole volume and be used as a leakage breaker by assembling with leakage. It is produced as per EN60898, IEC60898-87, IEC 60947-2 standards.
Current rating
|
6, 10, 16, 20, 25, 32A at 30
|
Voltage rating
|
230V AC
|
Breaking capacity to EN60898
|
4500
|
Number of operating cycles (O-C)
|
20000
|
Tripping characteristics
|
B curve, C curve
|
Ausin electric co., ltd. locates in Liushi Wenzhou, which is the capital city of electrical appliances in China. We are a leading professional manufacturer for circuit breakers and contactors as well as voltage stabilizer and main exporter in China.
Founded in 1996, we have got plenty of experience in researching and manufacturing. There are 50 experienced and high degree engineers in our R & D department. So we are quite capable to develop many types of products to meet customer's needs.
Our products are very popular in China and overseas market due to their high quality and competitive price. We are the sole manufacturer who has got UL certification in our area, and we've got CE & ISO9001 certification as well. We also offer long term free calibration service. We believe that our products will bring a large profit for your company. 80% of our last year volume belong to overseas sales. What's more, we can offer OEM & ODM service if the quantity is proper.
Based in China, with vision for the world, we will make continue efforts to create more fortune for our Customer.
