Product Specifications
| Prod Model: |
PS100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP68:Water,Weather Proof: |
Anti-Vendal |
Product Description

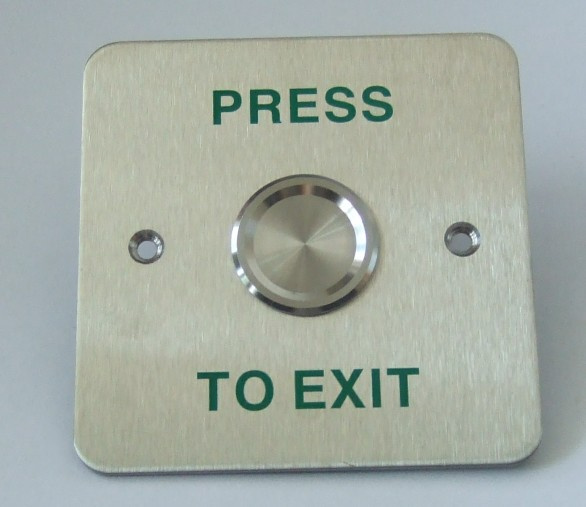

Piezoelectric switch general purpose high performance 22-mm panel-mounted, Normally Open (N.O.) Piezoelectric toggle switches suited for long-life and rugged use applications. Outstanding features: anti-vandal, water and weather resistant and can be operated with fingers, gloves and through elastomeric overlays.
MAIN FEATURES
Easy to install and use
Light indicator switch colors between red and green when the button is pressed
Wide range of input voltage from 5 V to 12 VDC
Piezoelectric technology can sense actuation within a solid metal enclosure
Low temperature operation down to -40
Meets IP68, fully potted design resists penetration of dirt and dust and water
Electrical specification |
|
Input voltage range |
5-12VDC/AC |
|
Input current |
<=1A |
|
Contact Resistsance |
<100 ohm |
|
Impulse Time N.O |
<50 ms |
|
Finger pressure on button |
0.5kg for 5N |
|
Button lift |
1 billion cycles |
AOPU specializes in providing professional multi door access control systems. AOPU products are geared to all needs, from the office buildings, housing estates to multiple-site high tech corporations, universities, banks, police stations and prisions etc. Our products include: RS485 network single-door access controller, RS485 network multi-door (2 doors and 4 doors) access controller; TCP/IP network single-door access controller, TCP/IP network multi-door (2 doors and 4 doors) access controller; Access control software; Access control and time attendance administration system; RS485/232 access control converter; RF IC and ID card reader etc.
Our goal is to provide right and quality products with most friendly software.
Future: We do think that muliti door access controler have a hugh future. And AOPU will also follow the times' progress and develop more products meeting customer demand.
