Product Specifications
| Prod Model: |
kinds of |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
API Spec 16c |
| Working Pressure: |
5000psi-10000psi |
| Reinforcement: |
28layers of High Strength Steel Wire |
| Temperature Range: |
-30°c~80°c or Client's Need |
| Tube (Lining): |
Principally Compounded Rubber |
| Cover: |
Oil-Resistant, Low Temperature |
| Joint Type: |
API Spec 5b Line Pipe and Pipe Thread |
| Type: |
Crude Oil |
| Standard: |
API |
| Cross-Section Shape: |
Round |
| Morphology: |
Liquid |
| PP Pipe Type: |
High Strength Steel Wire |
| Connection Type: |
Union |
| Diameter: |
2''-4'' |
Product Description
Specifications
1)Used in Drilling,Cementing
2)Inner diameter: 38-127mm
3)Pressure: 11Mpa-70Mpa
api 16c flexible choke kill line Specifications

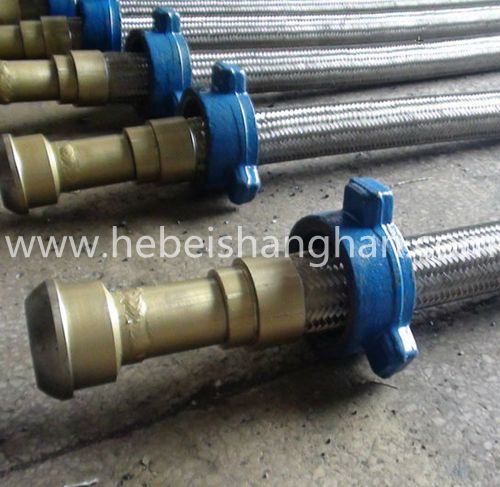

API 16C flexible choke kill line
working pressure 5000-10000PSI...
api 16c flexible choke kill line
Detailed introduction of the products:
1. The kill hose and choke line hose applies for the connection of the relative motion of the well drilling floor, semi-submersible boat or well drilling boat, and transportation high pressure medium such as oil, gas and mud etc., which is mainly consists of relief hose, BOP hose, kill hose and choke hose.
2. The hose is API Spec. 16C standard, and has characteristics of anti high pressure, fire resistance, heat insulation, and wearable inner surface
Specification and Basic Parameters for Kill and Choke Line Hose |
I.D. | O.D. | Working Pressure | Test Pressure | Min. Bending Radius | Ref. Weight | Joint Thread |
| In. | mm | Psi | Psi | mm | Kg/M |
|
| 2 | 90 | 115 | 5000 | 10000 | 10000 | 15000 | 800 | 900 | 11 | 18 | Fig. 2 1502 Union / 2-1/16 Flange |
| 2-1/2 | 110 | 123 | 5000 | 10000 | 10000 | 15000 | 900 | 1000 | 16 | 25 | Fig. 3 1502 Union / 2-1/16 Flange |
| 3 | 135 | 147 | 5000 | 10000 | 10000 | 15000 | 1050 | 1150 | 22 | 36 | Fig. 3 1502 Union / 3-1/16 Flange |
| 4 | 150 | 165 | 5000 | 10000 | 10000 | 15000 | 1100 | 1200 | 28 | 42 | Fig. 4 1502 Union / 4-1/16 Flange |
