Product Specifications
| Prod Model: |
AUTO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Welding Process: |
TIG/MIG/Saw |
| Control Mode: |
PLC / Wps |
| Brand Name: |
Naec |
| Welding Efficiency: |
280-500d. I/8 |
| Suitable For Pipe Dia. Range: |
2~60" |
| Certification: |
CE,ISO9001-2008 |
| Place Of Origin: |
Nanjing |
| Type: |
ARC Welders |
| Current: |
Alternating Current |
Product Description
AUTO Automatic Pipe Welding machine & Station
It has features as following:
1. Three models available( 8"type, 16" type,24"type);
2. Suitable for C.S./S.S./Alloy S., etc.;
3. Consist of two welding machines/heads, one is column and boom type; another is pressure head type;
4. TIG/MIG/SAW are optional;
5. PLC system control & WPS programmed;
6. Higher welding quality and efficiency, for example, for a 24" type automatic pipe welding station, it can reach 330DI-375DI /day productivity, including handling, presetting time.
Technical Data:
| 1 | Product Name | Containerized Pipe welding Station |
| 2 | Model | AUTO MPWS630P-B |
| 3 | Total Power | 50kW |
| 4 | Machine Weight | 6500kg |
| 5 | Container Weight | 3000kg |

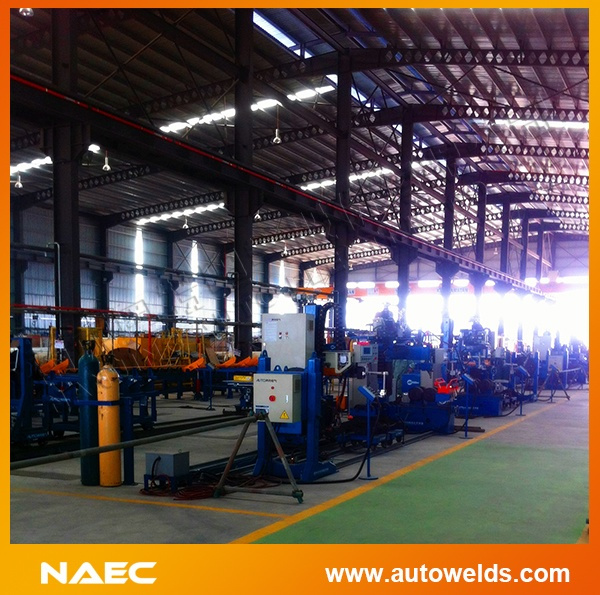

AUTO Automatic Pipe Welding Station is standard designed, including Pressure-head Type Elbow Welding Machine, Elevating Type Pipe Supporter, and Column & Boom Type Welding Machine, Chuck-type Positioner, and Rail Skids. Each welding station has two welding heads, and the complete station is able to do welding of pipe fittings to pipe fittings, pipe to pipe fittings such as elbow, flange, tee, and reducer. The two welding heads is able to work at the same time to finish both short and long pipe spool joint welding.
There are more than 40 sets of WPS program stored in the control system. Through the touch screen the operator just need to select the welding procedure to be used for various diameters of pipes with different wall thickness. And it can use T.I.G, M.I.G, or S.A.W welding process for joint automatic root pass, fill and cap pass welding.
Nanjing Auto Electric Co., Ltd (NAEC) was established in 2001, taking promoting "Lean Fabrication to Global Energy Engineering Industry" as its mission, NAEC's core business is to provide Lean-fabrication One-stop Solution to energy engineering contractors and fabricators. With advanced innovation ability and continuous integration of new technology & processes, NAEC's solution ensure its users high quality and efficient fabrication, and make itself become worldwide clients' most preferred partner.
Our Strategic Clients are
L EPC companies, Contractors or Fabricators in Onshore Oil & Gas Exploration, Transportation, Storage, Refinery & Chemical
L EPC companies, Contractors, Fabricators or Equipment Manufacturers in Offshore Oil & Gas Exploration, Treatment, Transportation & Storage
L EPC companies, Contractors or Fabricators in Nuclear Power, Wind Power, or Thermal Power
L Various Energy Engineering Equipment Manufacturers
We provide Lean-fabrication One-stop Solution for Energy Engineering EPC Companies/ Contractors/ Fabricators, Based on Following Systems:
L NAEC Lean-fabrication Mode
L NAEC Lean-fabrication Management System
L NAEC Lean-fabrication Production System
NAEC Lean-fabrication One-stop Solution can help engineering fabrication operators to solve project problems. It can organize fabrication production and ensure the final delivery in good quality and on time.
