Product Specifications
| Prod Model: |
ISY-351-II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

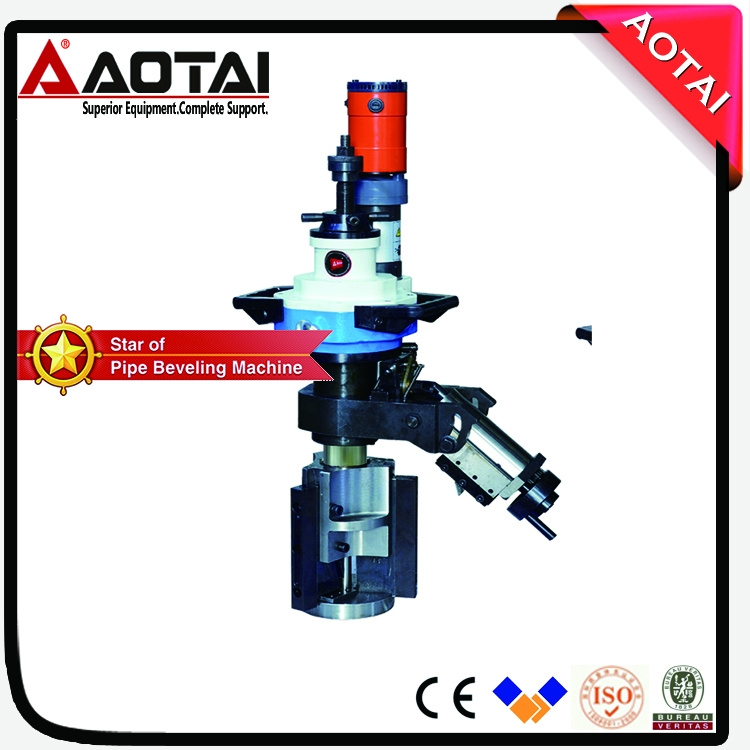

Pipe Beveling Machine |
| Main Feature: |
Cold Cutting,Portbale Pipe Beveller |
| Model: |
Isy-351-II |
| Range ID: |
150-330mm |
| Max Wallthickness: |
75mm |
| Power: |
Electric |
| Electric Motor Power: |
2000W |
| Electric Motor: |
220V/50Hz |
| Idle Speed: |
16rpm |
Product Description
ISY-351-II,ELECTRIC TOOL, TUBE BEVELLER,PIPE BEVELER,PORTABLE PIPE BEVELING MACHINE.
Features
1) The machine adopts "Y" shape construction design, minimal radial space, light weight, easy to carry, safe use.

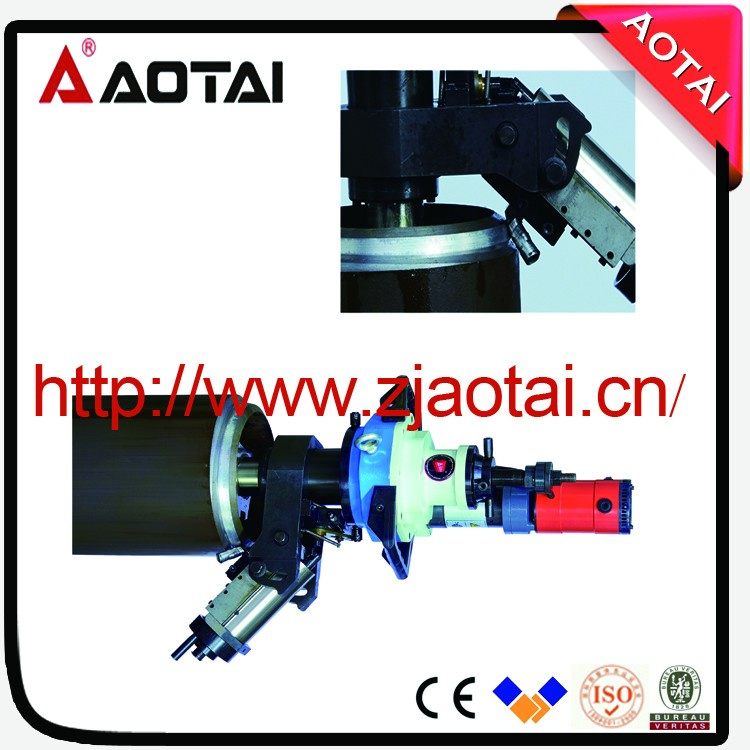

2) Inner mounted quickly and easily, self-located in the center of the pipe
3) Beveling and grooving with high speed, Used for the welding preparation.
4) Can Process inside beveling and deep hole
5) Can Process facing, flange, convex surface and Seal groove.
6) Cold cutting process will not influence the quality of the material of the pipe.
7) Can process the U, V, double V and J shape of pipe beveling according to the customers requirement.
8) Widely used in the fields of petroleum, chemical, natural gas, food, boiler, medicine, power supply construction and nuclear power.
9) Driven motor: Pneumatic, Electric all is available.
10) Feed mode:Automatic + manual

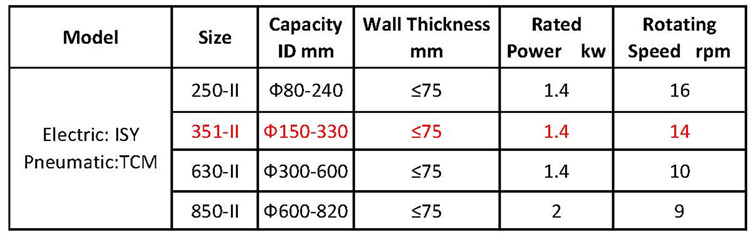

Technical Parameter
Electric: Driven by low-energy consumption electric motor 110V or 220V optional, 50-60Hz
Pneumatic: Driven by pneumatic motor, Air working pressure: 0.6-0.8Mpa, Air Consuming flux:950-1500L/min
FAQ
1) Question: How to choose a suitable model?
RE: Before choose the model,we need to know more details about the pipe,such as the I.D,O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately decision .Thanks!2) Question: Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,hydraulic and NC.3) Question: About the type of the beveling?
RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.Company Information
AOTAI,LEADING MANUFATURER FROM CHINA,SINCE 1995,FOCUS OUR ATTENTION ON MANUFACTURING AND PRODUCING ALL KINDS OF PIPE BEVELING MACHINE,PIPE CUTTING AND BEVELING MACHINE,ORBITAL PIPE CUTTING MACHINE,FLANGE FACING MACHINE. BEST SOLUTION FOR YOUR PIPE BEVEL AND CUT
AOTAI, one of the leading manufacturer and the supplier of the pipe pre-fabrication machine, portable series product, on-site machining.
* Pipe Cold Cutting and Beveling Machines, Split Frame and Clamshell.
* High Speed Pipe Cutting and Beveling Machine, lathe, CNC, Pipeline Pre-fabrication on factory.
* Pipe Beveling Machine
* Flange Facing Machine, On-site Machining.
* Orbital Pipe Cutting Machines.
* Plate Beveling Machines.
* Pipe Handling Equipment, pipe logistic system.

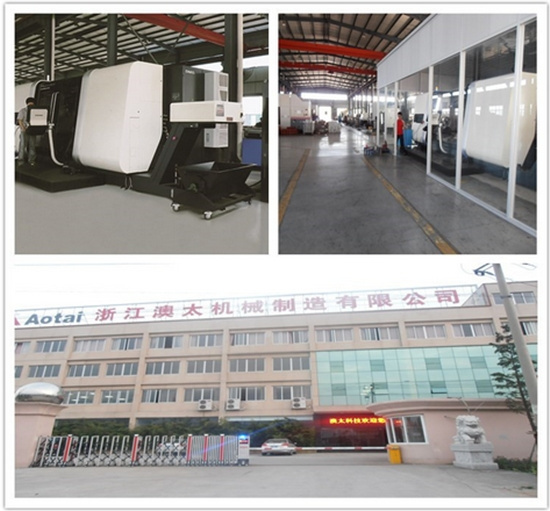

Aotai Machine Manufacturing Co., Ltd. is specialized in manufacturing of the pipe cutting and bevelling machine, and reductor. It is a modern enterprise centralized in researching, manufacturing, sales and producing, and had been conferred China High & New Technological producing enterprise. Our products used in the fields of petroleum, chemical, natural gas, power supply construction, boiler and nuclear power, such as the project of West Gas Transporting to East China. Our Pipe cutting and beveling machine are famous at home and abroad.
We are dedicated to become the largest comprehensive bevelling machine manufacturing base of China, have imported advanced equipments and technology from developed country. Innovation sustained, and have independent intellectual property rights, total 36 patent. Our company have passed ISO9001 quality system management and CE Certificate.
Our factory located seaside city of China, Wenzhou, build in Binhai Industry Area. It is a national development area nearby airport with convenient traffic.
Our management eidos is presenting the best quality and service to our clients, and getting reciprocity and mutual profit.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 106
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 21~50 People
Export Year: 2000-03-05
Export Percentage: 51%~70%
Annual Export Revenue: 10 million~50 million USD
Main Markets: Europe, Southeast Asia/ Mideast, Domestic
Export Mode: Have Own Export License
Factory Address: The 10th Road,Third Avenue,Binhai industry Area, Wezhou,325025,PR China.
R&D Capacity: Own Brand(Aotai)
No. of R&D Staff: 11-20 People
No. of Production Lines: 3
Annual Output Value: US$5 Million - US$10 Million
