Product Specifications
Product Description
The split frame design of the equipment allows the machine to separate and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel operations, as well as weld end preparation on open ended pipe.
Features
Cold Cutting and Beveling improves safety
Split Frame: Easy mounted on pipeline
Tools feed automatically
Fast, Precision, On-site Beveling
Minimal Axial and Radial clearance
Light weight and compact design
Easy set-up & Operation
Electric or Pneumatic or Hydraulic driven
Machining heavy-wall pipe from 3/4" up to 48"
Application
Nuclear Power
Fossil Fuel/ Power
Oil & Gas
Fabrication / High Purity
Process Plants
Ship Repair

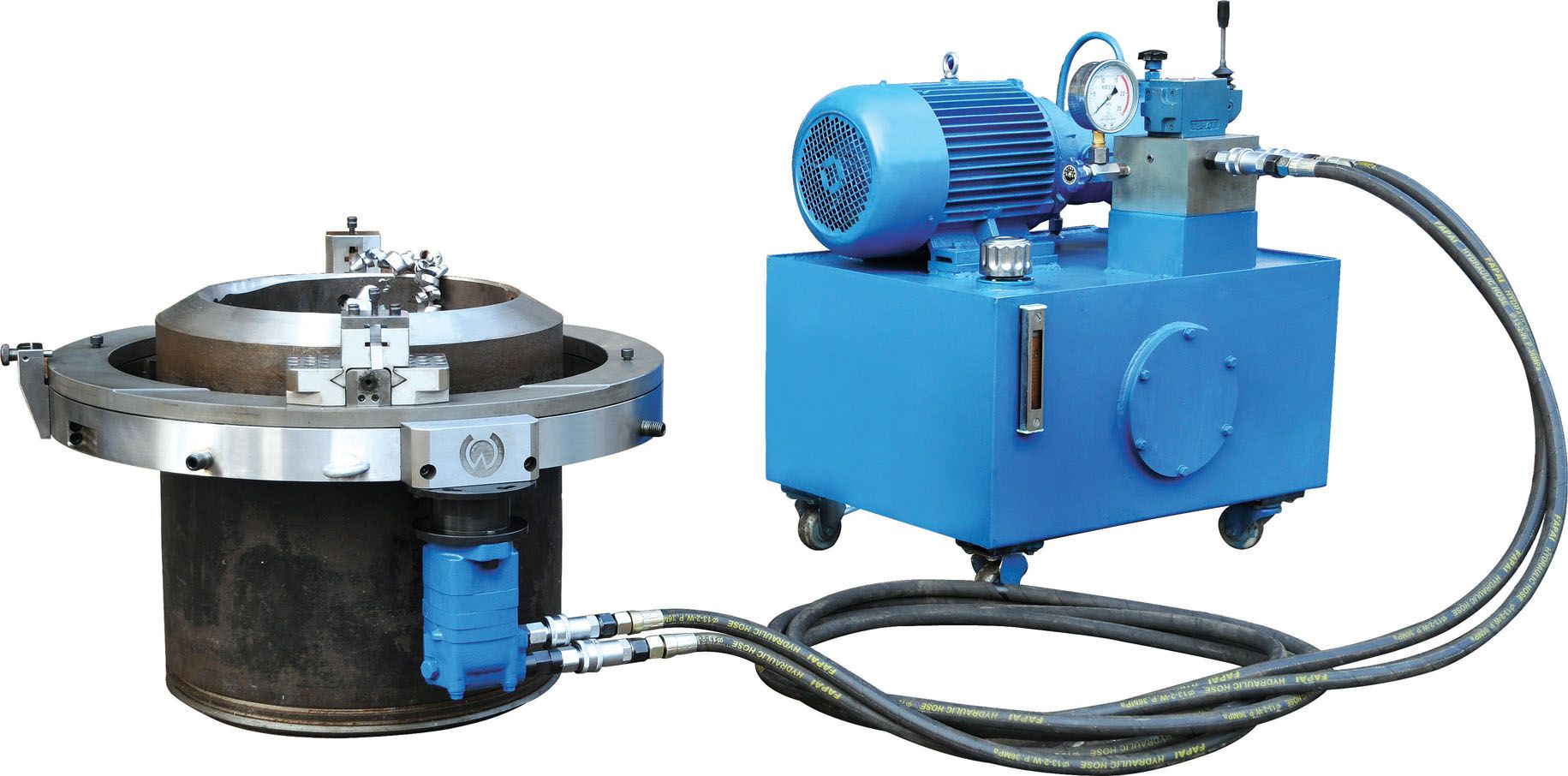

This series is hydraulic driven
Power supply: 220V-415V 3PH 50/60HZ 12.5Mpa @2-60L/Min
Advantage:
Powerful drive, High efficiency
Stable Performance
Low noise
Adjustable speed
Ideal for heavy wall thickness & large size pipe
Order Guide:
Before you place order to us, please let us know the following information:
1. Choose the right Model
2. Confirm your electric power supply ( Voltage, frequency and phase)
3. Confirm the beveling angle required
4. Confirm the welding joint required (U, V, Double V or Compound preparation)
5. Advise your pipe material ( Carbon steel, stainless steel or others)
6. Other special demands about machine
7. The spare parts needed
8. If the pipe wall thickness >30mm, inform us in advance (Important)
| Model | Working Range (ID-OD) |
| Inch | mm |
| 89 | 3/4"-3" | 25-89 |
| 159 | 2" -5" | 50-159 |
| 168 | 2" -6" | 50-168 |
| 230 | 3" -8" | 80-230 |
| 275 | 5" -10" | 125-275 |
| 325 | 6" -12" | 168-325 |
| 377 | 8" -14" | 219-377 |
| 426 | 10" -16" | 273-426 |
| 457 | 12" -18" | 300-457 |
| 508 | 14" -20" | 355-508 |
| 610 | 18" -24" | 457-610 |
| 762 | 24" -30" | 600-762 |
| 830 | 26" -32" | 660-813 |
| 914 | 30" -36" | 762-914 |
| 1066 | 36" -42" | 914-1066 |
| 1230 | 40" -48" | 1016-1219 |
