Pipe Printer Series Number Coder
| Price: |
US $ 3000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
V98 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color & Page: |
Single-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| System Supported: |
Windowsxp32 |
| Structure: |
Flat-Bed Cylinder Press |
| Plate: |
Lithography Printing |
| Printing Speed: |
6.7CPI |
Product Description

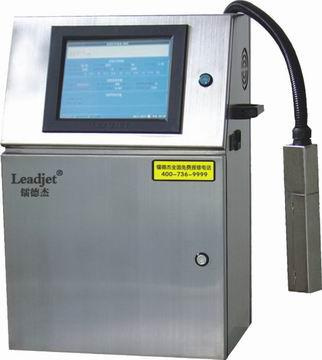

Model: V-98 (Touch Screen)
Feature
Quick-dry balck ink used industrial non-contact small character inkjet printers
Print consistently high quality images even on structured and uneven surfaces
Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK
Easy to be integrated at any position of the production line
User friendly interface and most reliable ink system
32 bit embeded CPU, large memory, and the 8.4'' TFT bright clear touch screen
Multitask system, printing and editting at the same time
Applications
Automobile part, Beverages, Cosmetics, Electronic Component, Foods, Pharmaceuticals, Stone & Wooden, products, Eggs, Pipes & Tubes, Cables & Wires etc.
Hydraulic System
Compact design
Full automatic viscosity control and pressure control
Diaphragm pumps with reliability, longer life, low maintenance cost than gear pump
Electronic control system completely separated design from hydraulic system
Print Head
Compatible design, maintenance friendly
Automatic ink stream on when start up and ink stream suck back when turn off
Nozzle size: 58 μ M standard, 52 to 65 μ M optional
Easily accessible and can be installed in any position
Distance from print head to print surface 1mm~30mm
Technical Specifation
1) Print Line: 1-5 lines (5 X 5 dots)
2) Print Dots: Figure & letter 5 X 5, 5 X 7, 8 X 10, 8 X 12, 12 X 16, 16 X 16, 24 X 24, and user-defined dots within 32 X 32
3) Memory: 1000 message, 1000 graphics
4) Print Speed: 800 character per second ( 5 X 7 dots)
5) Letter Height: 1-20mm
6) Operating interface: Chinese, English
7) Print objects: Chinese, English, figues, date, time, and numbering of reset
8) Material: Metal, plastic, glass, woode, tubing, electrical wire, cable etc
9) Font Width: Up to 9 times
11) Nozzle Connection Tube: 3M
12) Communication Interface: USB and RS232
13) Ink Color: Black, blue, red etc
14) Consumption of Ink: 70 millions character per litre
15) Operating Environment: 5-45 Degree, below 90%(humidity)
16) Power Source: AC220V / 380V 50Hz 100AV
V98 Packing Info.
Packaging: 1PC/Carton
Packing size: 645 X 455 X 650mm
G. W.: 35KGS
Contact Person: Abby Pee
Tel: 027-51011111-8012
Any comments from you will be highly appreciated.
Thanks & best regards,
Allen
|
Printable Lines |
1-4 lines |
|
Printable Height |
1-20mm |
|
Memory Capacity |
up to 1000 messages |
|
Printable Dot Matrix |
figure & letter within 24*24, user-defined in 32*32 |
|
Print Speed |
800 characters per second ( 5 * 7 dots) |
|
Font Width |
it can be widen 9 times |
|
Interface Language |
English & Chinese |
|
Printable Content |
chinese and English characters, Arabic numbers,date, time, batch numbers, logo, trademark, text |
|
Printable Substrate |
metal, plastic, glass, wooden, tube, cable, wire etc. |
|
Ink Color |
black, blue, green, red etc. |
|
Ink Consumption |
70 millions characters per litre. W/O chip. |
|
Temperature |
5 – 45 degree, |
|
Humidity |
below 90% |
|
Power Supply |
AC220V 50HZ 100VA |
|
Control Panel |
8.4 TFT Bright Colour Touch Screen |
|
Printer Dimension |
265 * 335 * 550 mm |
|
Package Dimension |
710 * 520 * 750 mm (Wooden pack) |
|
Weight |
N.W.:40KGS G.W.: 50-55KGS |
