Product Specifications
| Prod Model: |
W24s-75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type: |
Pipe and Tube Bending Machine |
| Type For Cutting Machine: |
Bender |
| Type For Fold-bending Machine: |
Bender |
Product Description

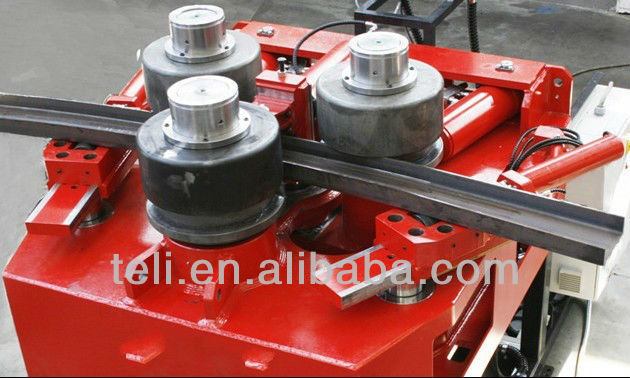

Profile Bending Machine
Main features
The operating system, utilizing microcomputer with numerical controlled module and dialogue-styled put-out-in programs, are highly workable.
The large capacity of the cooling circulatory system makes machines run more stable.
PLC as the heart of controlling the whole machine, could work normally in all kinds of bad conditions.
Each gear of programs can set nine bending angels, the memory machine can store 8 groups of files.
Error messages could show on the screen to help the operator to exclude errors immediately.
ModelW24S-75 Section Bending Machine
Max. Ant-bending section modulus of profile753
Yield limit of profileσ S=250MPa
Angel steel internalMax section100*10
Minimum bending diameter2000
Minimum section38*4
Minimum bending diameter1000
Angel steel externalMax section120*12
Minimum bending diameter1600
Minimum section38*4
Minimum bending diameter1000
Channel steel external
Channel steel type25mm
Minimum bending diameter1100
Channel steel internal
Channel steel type25
Minimum bending diameter1600
Flat steel vertical bending
Max section220*40
Minimum bending diameter1000
Flat steel plane-bendingMax section110*40
Minimum bending diameter1100
Steel pipe bending
Max sectionΦ 114*5mm
Minimum bending diameter1500mm
Round steel inflection
Max section85mm
Minimum bending diameter1000mm
Square tube inflection
Max section90× 8mm
Minimum bending diameter1600mm
Bending speed4 m/min
Climb and Fall velocity of side roll180-200 mm/min
Operating pressure of hydraulic system 19.5MPa
