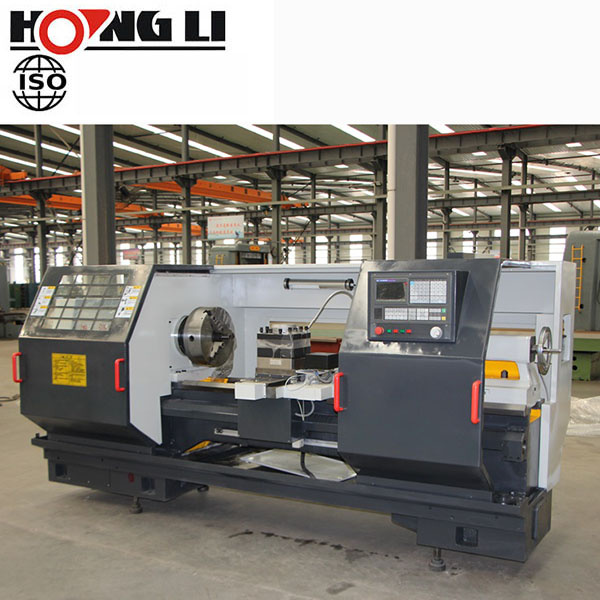

Pipe Threading Lathe Machine
The CNC pipe threading lathe machine SK1350 is mainly used for processing inner and outer pipe thread, metric thread and inch thread, and can also undertake various turning works such as turning inner and outer cylindrical surface, conical surface and other revolution and end surface as general CNC lathes.
Specification Data:
ITEMS | Model: QK1313 |
Swing over bed (mm) | Φ630/800 |
Swing over carriage (mm) | Φ340/540 |
Range of processing pipe thread (mm) | Φ30-126 |
Distance between centers (mm) | 750/ 1000/ 1500/ 2000/ 3000 |
Width of bed (mm) | 490 |
Spindle bore (mm) | Φ130 |
Main motor power (kw) | 7.5/11 |
Step and range of spindle speed (r/min) | Manual: 18steps/12-642 Frequency conversion: 2steps 30-200/200-600 |
Feed volume and screw pitch (mm) | 0.001-40 |
Max stroke/traverse of X/Z (mm) | X: 320/520 Z: 500/ 750/ 1250/ 1750/ 2750 |
Rapid moving speed on X/Z (mm/min) | 4000 |
X/Z servo motor power (kw/Nm) | X: 1.5/10 Z: 2.3/15 |
Positioning accuracy (mm) | 0.020 |
Repositioning accuracy (mm) | 0.010 |
Diameter and taper of tailstock quill (mm/mores) | Φ100/m5# |
Tailstock quill travel (mm) | 205 |
Tailstock cross travel (mm) | ±15 |
CNC system | Standard equipment:GSK980TC3 (Optional: Fanuc Oi Mate/ GSK980TDC/ Siemens 808D/ KND K1000Ti) |
Size of tool section (mm) | 32×32 |
Overall dimensions (L×W×H) (mm) | (2907/ 3157/ 3657/ 4157/ 5157)×1360×1480 |
Net weight (kg) | 3500/ 3600/ 3800/ 4200/ 4600 |
Packing and shipping
| Payment | Payment Term | T/T L/C Western Union Paypal(etc) |
| Shipping | Delivery Time | 7-30 days |
| Shipping Method | By Courier such as Fedex, TNT, DHL etc | |
| Port | Shanghai/Ningbo/Other port | |
| Shipment Term | FOB/CIF/CFR/EXW | |
| Packing | NW | 3500/ 3600/ 3800/ 4200/ 4600 |
| Dimension | 5000*2200*1750mm | |
| Material | Plywood case |

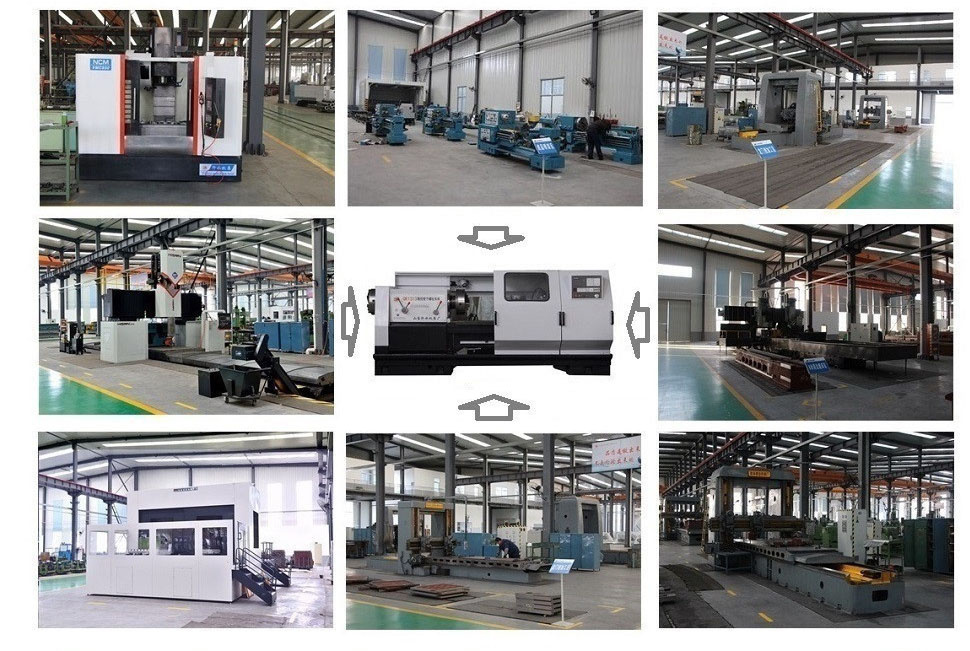

Work shop and Ware house

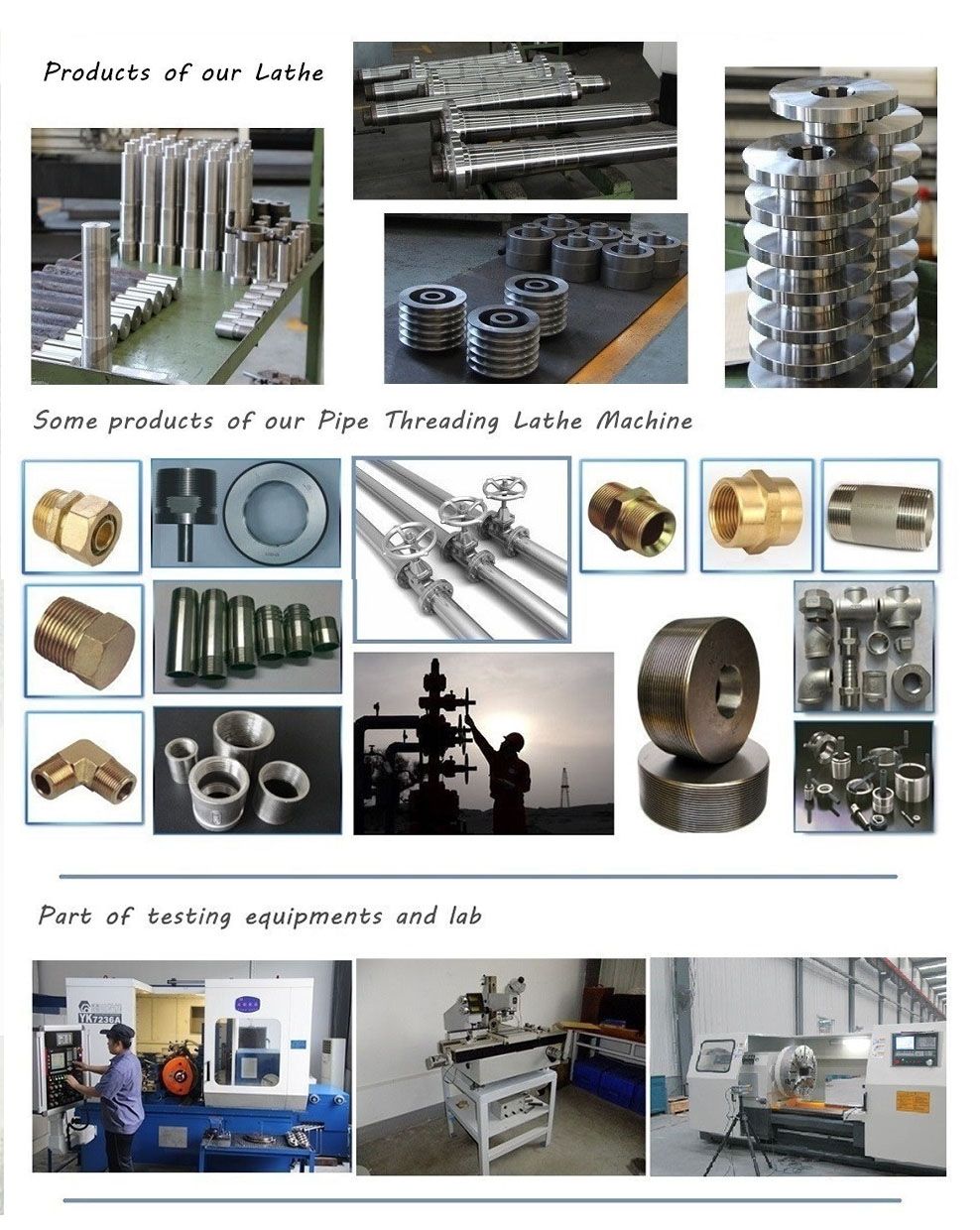

Workpiece:
Our big families :
Hongli is a company that brings together technology and engineering to provide innovative solutions for our customers in the range of pipe machinery. Hangzhou Guanba Machinery Import & Export Co., Ltd is our sister company. Our priorityis to design, produce and deliver products and solutions that make your job been done easily.
Our company has been in business since 1986. We have grown to become one of leading manufacturing companies in China with many customers around the globe. Today, we are committed to helping our customers succeed and building long-term value in the global market.
FAQ
Q1.:What's your type of payment?
Paypal, TT, Western Union are all acceptable payment terms. According to your specific
circumstances, you can choose the most suitable payment terms
Q2.May i have a inspection?
In order to ensure the interests of both sides, we support buyer or third party to inspect
the goods at our factory before shipment, the third party should be entrusted by
buyer. We also will arrange self-inspection and send the photos to buyer before shipment.
Q3.What's your transportation?
We support to arrange delivery to buyer's destination by Air, by Sea, or Express.
We normally send goods from Shanghai or Ningbo. If from other port, we will charge
for logistic fee, the cost is depends on the delivery distance.
We suggest buyer to make insurance for goods, to avoid any loss in transportation.
Contact me without hesitate!
Name:Melissa
Tel: 0086-571-86260006
Fax: 0086-571-86260893
website: www.pipetool.com.cn
Hope you win more business!
| Prod Model: | QK1313 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed (Mm): | Od 630/800 |
| Swing Over Carriage (Mm): | Od 340/540 |
| Width Of Bed: | 490mm |
| Type: | Multi-Axis Automatic and Semi-Automatic Lathe |
| Automatic Grade: | Automatic |
| Precision: | High Precision |
| Power Source: | Electric |
| Setting Mode: | Table |
| Controlling Mode: | CNC |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Double-tool Holder CNC Lathe |
