PIR Sensor with Sensitivity Adjustable

Name: PIR Sensor with Sensitivity Adjustable
Brand: China-Manufacturer-Directory.com
SKU: 702391235
Availability: InStock
Rating: 5 (75 reviews)

Supplier:	Roiscok Electronics Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	RK210PT
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	895239mm
Certification:	CE & RoHS
Detecting Distance:	8 M
Type:	Sensor
Installation Mode:	Wall Mounted
Application:	Home
Usage:	Anti-theft

Product Description

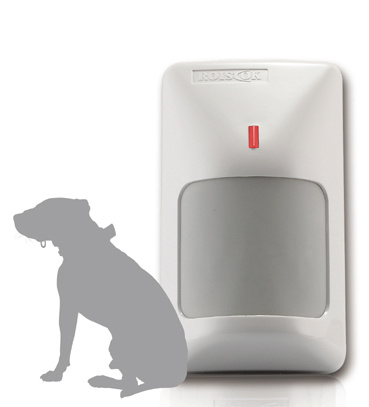

PIR Sensor With Sensitivity Adjustable And Pet Immunity
(RK210PT)

RK210PT dual element sensor motion detector with pet immunity, RK210PT is a compact detector which has been designed special for residential installation. It has features as the strong ability to catch signal, false & lost alarm is very low, low power consumption and true temperature compensation. Equipped with professional pigmented optical lenses to resist the interference of white light, high technology, smart manufacture, elegant appearances are all shown in our products, its detective range is 8m.
Rk210PT can be equipped with ra93 swivel bracket for ceiling, wall or corner mounting.

Main features:

1. Dual passive infrared detective technology
2. Pet immunity, can prevent the false alarm Being caused by the dog of 20kg, 2 cats or other rodents
3. Microprocessor design improves false alarm immunity
4. Dual polarity pulse count is adjustable
5. Resist interference of white light
6. Power consumption is low
7. Professional optical pigmented lenses
8. Installed on wall & ceiling/corner mounting
9. Suitable to swivel brackets@ convenient for installation
10. Pulse count is selectable
11. Resist fluorescent interference
12. Memory and form-c relay
13. Smart and elegant design is ideal selection for residential installations

Detection Range:

Operating voltage	9 to 16V DC
Current	12mA
Contacts of alarm	NC, 12V DC and 100mA
Contacts of temper	NC, 12V DC and 100mA
Time to alarm	2.2 seconds
Time to warm	2 minutes
RFI characteristic	22V/m at 10MHz to 1GHz
Operating temperature	-5 to 50° C
Storage temperature	-20 to 55° C
Dimensions	89 x 52 x 39mm
Suitable swivel bracket	RA93
Height of installation	2.4m
Coverage	10m
