Product Specifications
| Prod Model: |
DA5004C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
Portable |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Oil-free |
| Application: |
Low Back Pressure Type |
| Mute: |
Mute |
| Feature: |
High Flow, Low Noise |
| Model: |
Silent, Oil Free, Portable |
| Port: |
Shanghai |
| Delivery Time: |
7~20 Working Days |
Product Description

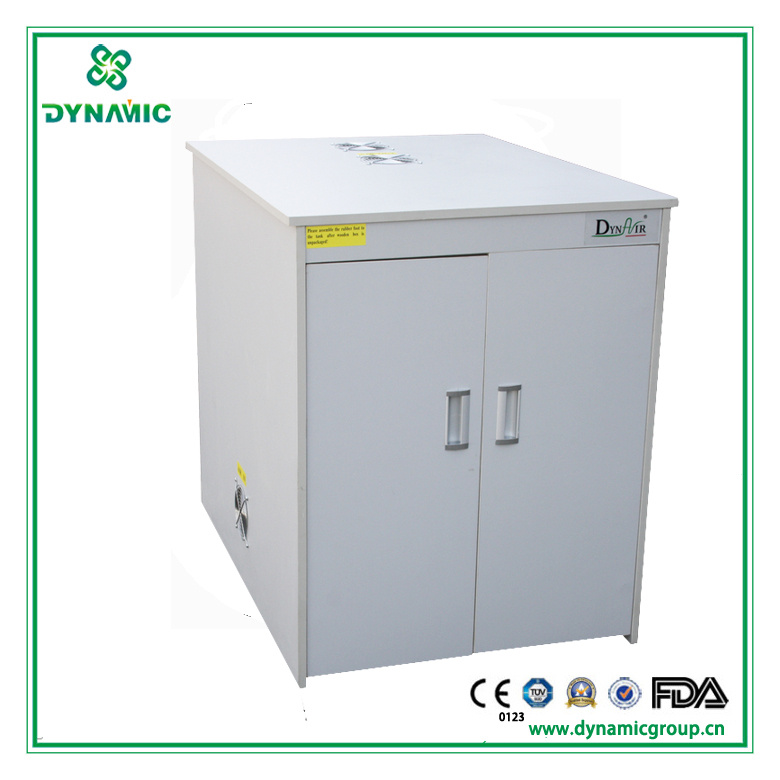

Piston type Silent Air Compressor With Wooden Cabinet(DA5004C)
Model: DA5004C
Voltage: 100-240V/50-60Hz
Power: 2200W [3HP]
Max Air Flow: 460L/min [16.24CFM]
Air Flow@7bar: 160L/min[5.65CFM]
Noise Level: ≤ 46 dB (A)
Max. Pressure: 8bar [116PSI]
Max Current: 10A
Air Tank: 100L [22.0Gallon]
Gross Weight: 179kg [394.6lbs]
Net Weight: 127kg [280lbs]
Dimension: 1260× 630× 895mm [49.6× 24.8× 35.2 inch]
Options
Air Dryer System (ensure dryer air flow for your equipment)
The oil-less DynAir compressors are available in protective metal cabinets. The cabinets reduce the sound emission from the already quiet oil-less from the already quiet oil-less compressor to a level that is approximately one quarter of the level of basic compressors. The cabinets are designed individually for each model with an aesthetic look and with usability, hygiene as well as easy maintenance in mind. All cabinets are equipped with the universal wheel with foot-brake, enabling mobility and re-arrangement of installations and thus providing a high degree of flexibility.
The cabinets are treated with a matt textured powder coating which is hard wearing and enables easy cleaning. The color of the cabinets is making the compressors blend naturally with the equipment found in most laboratory, medical and other environments.
Applications:
Medical; Laboratory; Pharmacy; Food Fermentation; Life Science; Biotechnology; Analytical Instrument; Measuring Apparatus; Water Processing Environmental Monitoring; Automation; Coating Surface Processing; Makeup; Garments Manufacture; Shoemaking; Petro Chemistry; Arts, crafts and hobby; Beauty And Body; Printing; Optical And Photo; Research And Laboratory; Jewelry And Accessories; Electronic And Computers; Safety System; Aviation And Military;
Characteristics:
1. Oil free: Do not need any lubricated oil, and harmless to the human body.
2. Super silent: Noise level lower than 56dB(a) to reduce noise pollution.
3. Multi-phase filteration: Advanced multi-phase filtration to ensure extremely clean air, and lengthen service life.
4. Safety using: Air compressor motors equipped with thermal prevention device to avoid overheating and protect motors.
5. Clean tank: All air receiver tanks have internal epoxy coating applied to avoid corrosion.
6. Automatic adjustment: High quality pressure switch used to control the power of air compressor automatically by adjustment of pressure level.
7. Pressure adjustment: Working pressure could be adjusted to meet the demand of different supporting equipments.
8. High durability: Serviceable time exceeds 15, 000 hours.
9. Simple operation: Using directly when connecting with power.
10. Easy maintanance: No need any lubricated oil.
11. Warranty: 2 years.
Contact Us For Quote Now!
Tel: 86-512-82627666
Fax: 86-512-82603908
Add: NO108 Xingpu Road, Lujia Town, Kunshan City, Jiangsu Province, China
|
Model |
DA5001C |
DA5002C |
DA5003C |
DA5004C |
|
Voltage/Hz |
V |
100-240 |
100-240 |
100-240 |
100-240 |
|
Hz |
50/60 |
50/60 |
50/60 |
50/60 |
|
Power |
HP |
0.75 |
1.5 |
2.25 |
3 |
|
KW |
0.55 |
1.1 |
1.65 |
2.2 |
|
Max Air Flow |
L/min |
115 |
230 |
345 |
460 |
|
CFM |
4.06 |
8.12 |
12.18 |
16.24 |
|
Air Flow @7bar |
L/min |
40 |
80 |
120 |
160 |
|
CFM |
1.41 |
2.82 |
4.24 |
5.65 |
|
Max. Pressure |
Bar |
8 |
8 |
8 |
8 |
|
psi |
116 |
116 |
116 |
116 |
|
Tank |
L |
22 |
50 |
70 |
100 |
|
Gallon |
5.8 |
11.0 |
15.4 |
22.0 |
|
Net Weight |
Kg |
54 |
89 |
115 |
127 |
|
Lbs |
119.1 |
196.2 |
253.5 |
280 |
|
Gross Weight |
Kg |
66.5 |
98.5 |
134 |
179 |
|
Lbs |
146.6 |
217.2 |
295.4 |
394.6 |
|
Noise Level |
dB(A) |
≤50 |
≤50 |
≤50 |
≤50 |
|
Max current |
A |
2.5 |
5 |
7.5 |
10 |
|
Dimensions |
mm |
665×650×620 |
910×635×840 |
1135×625×845 |
1260×630×895 |
|
inch |
26.2×25.6×24.4 |
35.8×25×33.1 |
44.7×24.6×33.3 |
49.6×24.8×35.2 |
