Product Specifications
| Prod Model: |
Thrust ball bearing |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Dimension: |
Micro(',≤26mm) |
| Separated: |
Separated |
| The Number Of Rows: |
Single |
| Rolling Body: |
Ball Bearings |
| Load Direction: |
Radial Bearing |
Product Description

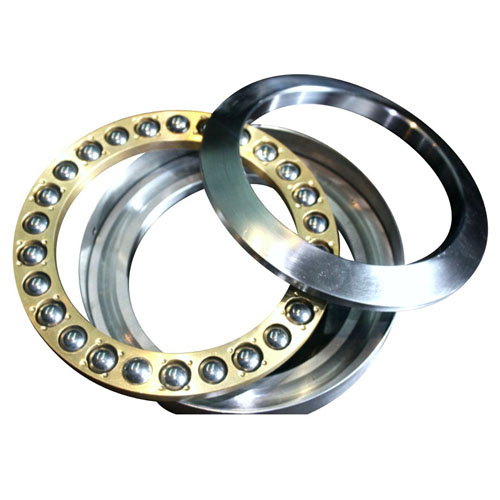

UBM plane thrust ball bearing
Assembly is easy, but should take full account of the axial pre-load assembly.
Standard
GB/T273.2_1998 rolling bearing, thrust bearing, dimension, dimension, the total program.
GB/T273.2-1998
GB/T301_1995 rolling bearing, thrust ball bearing, dimension
GB/T307.4-2002 rolling bearing, thrust bearing, tolerance
Thrust Bearing and Its Components
UBM - thrust bearing and its components is a unit composed of thrust cage and thrust ball with thrust washer. It can also consist work-pieces used separately. Featuring compact structures, capability of bearing single-direction axial force, high loading ability and high rigidity. It is widely used in lathe, metallurgical and textile machinery; Motor, driving shaft, gearbox and other location & supporting location.
Types of Designs:
For bearing rolling body is thrust balls.
For cages, materials of steel and non-ferrous metal can be chosen.
There are different structures of cages, such as machined & punched.
Product Precision Accuracy:
Dimensional tolerance and geometrical accuracy is based on GB/T307.
Matched steel ball accuracy is grade 20 (ISO GB/T308).
Materials:
Material for rolling body is GCr15 bearing steel, quench-hardening HRC60---65.
Material for thrust washer is GCr15 bearing steel, quench-hardening HRC61---65.
Material for punched parts is quality low-carbon steel.
Material for cages is nylon\low-carbon steel or non-ferrous metal.
Special Directions:
Easy to mount, but axial preloading during installation is to be fully considered.
UBM is specialized in producing track roller bearing(guide roller), straightening bearing(aligning roller), ball screw support bearing, linear bearing etc. We can also make the OEM products for our customer with our rich experience, strong engineer and prefect inspection. The products we produce containing the whole range of the straight-line displacement products.
Our principle is "We make unremitting efforts for your better use".
We warmly welcome cooperation and patronize with your company.
