Product Specifications
Product Description

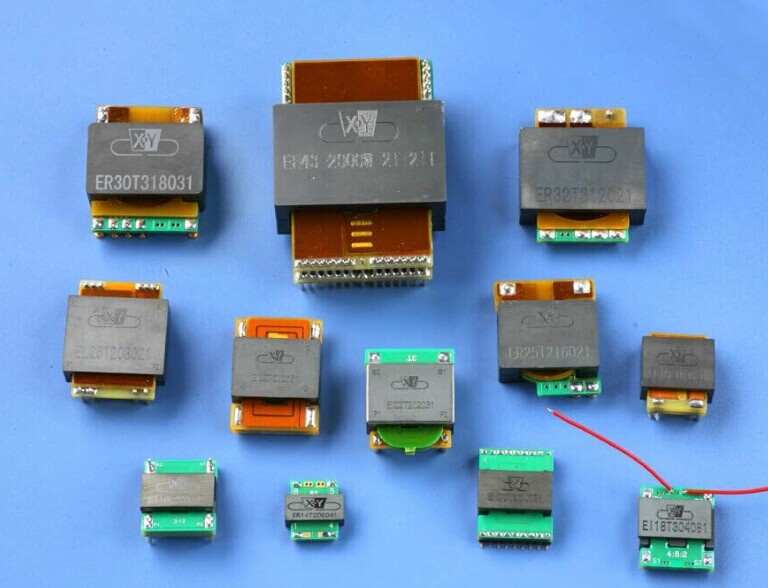

Novsense's Planar Magnetics offer
The following unique benefits which enable us to
Provide innovative solutions for our customers
Specific applications, while incorporating the
Following advantages:
Unparalleled working frequency range
(from 50kHz to 3MHz).
Dramatically reduced size and weight
(approx. 5gr per 100W).
Unique high efficiency (typically 98-99%).
Unmatched parameter consistency.
Very low Leakage Inductance
(less than 0.2% for un-gapped cores).
Cost effective and competitive prices.
Minimum Electromagnetic Interference (EMI).
Wide operating temperature range
(typical -40° C to +130° C/150° C).
High specific power density
(5W-25kW per one component). Very high Primary-to-Secondary dielectric
Isolation (up to 4kV).
High Creepage and Clearance distances
Between primary and secondary windings
(6-16mm).
Applicable to all SMPS topologies.
Various mounting and terminals options
(Horizontal, Vertical, Through-holes, SMT,
Pins, Flying-cables and more).
Specially designed heat-dissipating Clasps.
We are specialized in manufacturing and design of planar transformer and the planar inductor. And strive to provide power supply device with high efficiency, low power consumption for the customer. We respect the quality and service value. Our product applications in the field of high frequency power supply, military products, aerospace products, UPS power supply, communication power supply, power equipment, instrument and meter.
