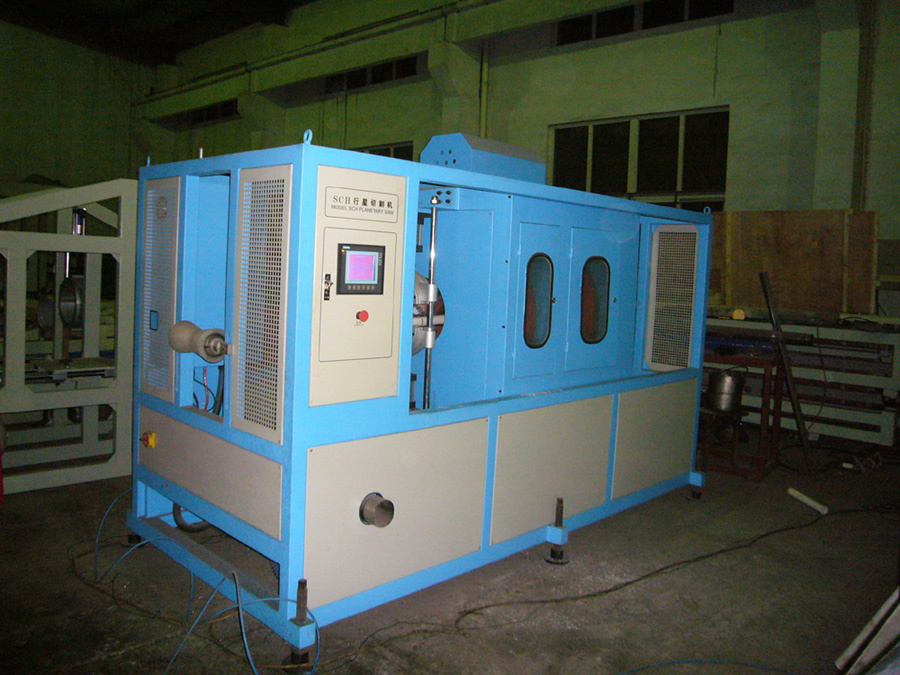

Planetary Plastic Pipe Cutter
This machine can cut different kinds of plastic pipes and make chamfering at the same time.
|
Serial number |
XQG-250 |
XQG-315 |
XQG-400 |
XQG-630 |
|
Pipe range |
OD60-250mm |
OD110-315mm |
OD160-400mm |
OD400-630mm |
|
Saw blade |
110× 2× 40T |
125× 2× 40T |
1.5× 2× 40T |
150× 2.2× 60T |
|
Mill cutter |
80× 75× 25 |
90× 75× 30 |
90× 75× 35 |
Special make |
|
Central height |
1000mm |
1000mm |
1000-1200mm |
1000-1500mm |
|
Max pipe thickness |
15mm |
20mm |
25mm |
30mm |
|
Motor power |
Cutting motor |
1.5kw |
2.2kw |
2.2kw |
2.2kw |
|
Rotation motor |
0.75kw |
0.75kw |
0.75kw |
1.5kw |
|
Blade-in motor |
0.18kw |
0.18kw |
0.18kw |
0.25kw |
|
Fan motor |
0.75kw |
0.75kw |
0.75kw |
1.5kw |
|
Outer dimension |
2500× 1160× 1540mm |
3600× 1260× 1580mm |
3000× 1360× 1740mm |
3000× 1360× 1740mm |
|
Machine weight |
1200kg |
1400kg |
2000kg |
2000kg |
Zhangjiagang Yusheng Machinery Co., Ltd. had been established in 2006, which is the specialized enterprise for producing plastic machinery. The company is located in beautiful scenery, international health city - Zhangiagang, near to Shanghai, Suzhou, Nanjing, and the transportation is convenient. The company has the first-class technology, which gathers the scientific research, development, production, sale, service, extroverted management.
The company mainly has the plastic pipe belling machine, the belling mold, the corrugated pipe production line, big caliber PVC drains, foul drainage production line, the PE big caliber coal gas, supply and drain pipe production line, the plate production line, palletizing production line, the plum blossom pipe production line, the PP-R pipe production line, plastic extruding machine, the high-speed mixer, the mixer unit as well as various auxiliary equipments.
