Product Specifications
| Prod Model: |
ZM-09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plate Width: |
300mm-1300mm |
| Plate Thickness: |
0.5mm-1.75mm |
| Corrugation Height: |
50mm-400mm |
| Forming Speed: |
3-4 Fins/Min |
| Corrugation Pitch: |
>=45mm |
| Type: |
Voltage Transformer |
| Phase: |
Oil Immersed |
| Application: |
Power and Distribution Transformer |
Product Description

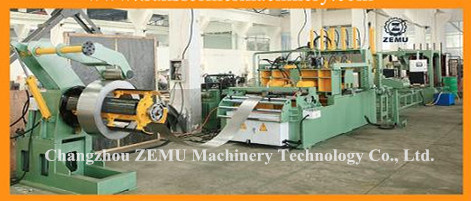

1. Buildup of this Manufacturing plant for transformers
1) Hydraulic Automatic Decoiler
2) Transformer Radiator Panel Forming Machine
3) Hydraulic Automatic Plate Shearing Machine
4) Corrugated Fin Automatic Welding Machine
5) Hydraulic station
6) PLC control system
2. Features of this Manufacturing plant for transformers
1) Specially designed for forming and welding transformer corrugated tank fin.
2) PLC control, fully automatic line: Automated conveying, clamping and welding.
3) Touch screen control. It's easy and convenient to operate.
4) High-speed welding, much faster than manual welding.
5) Argon arc welding, the welding is close and the surface is very clean and smooth.
3. General Description of this Manufacturing plant for transformers
1) Includes materials guidance, feeding, front pack, rear pack, edge folding,
Shearing and parts collection.
2) The hydraulic system is automatic controlled and stable running.
3) Human interface computer dialogue display, reasonable structure and easy in operation, labor saving (1~2 labors per shift).
4) Perform the process of forming, shearing, edge folding within one time when you input all operation parameters on computer unit.
5) Since its using, this machine has been proven to have lasting performance, reliable quality, high efficiency by the transformer manufacturers.
4. We can help to set up this Manufacturing plant for transformers
Our factory is able to provide the solutions about: Transformer Plant Manufacturing, Transformer tank forming machine, and welding of corrugated wall fins for transformer tanks. We can also assign manpower to your area for installation, commissioning and provide training. Please contact us for more details!
Item
|
Parameters
|
Plate width
|
300mm-1300mm
|
Plate thickness
|
0.5mm-1.75mm
|
Corrugation height
|
50mm-400mm
|
Corrugation pitch
|
≥45mm
|
|
|
|
Forming speed
|
3-4 fins/min
|
|
|
|
Total weight
|
20T
|
Color
|
As per customer's requirement
|
Warranty Period
|
Twelve Months
|
