Product Specifications
| Prod Model: |
QX-6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
600x900mm |
| Voltage: |
AC 110-220V |
| Application: |
Machinery & Hardware |
| Automation: |
Automatic |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Type For Cutting Machine: |
Plasma Cutting Machine |
| Type: |
Cutting |
Product Description

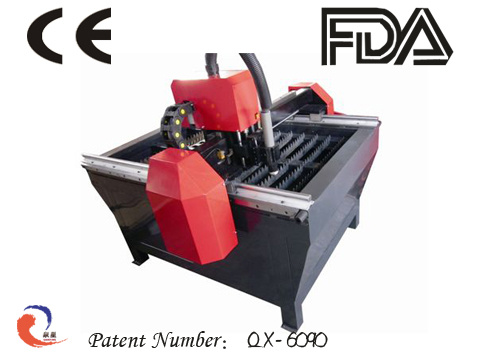

Plasma cutting machines, Metal Plasma Cutting Machines
Product Description:
1. Light beam design, good rigidity, light weight and tiny moving inertia.
2. Y axis adopts double motors with double drivers. XYZ axis round rail, moving smoothly, with high accuracy. (Option: Square rail).
3. Excellent performance on cutting 3D luminous letters for advertiding and slotted letters on metal surface board.
4. Small cutting gap, no residua.
5. High cutting speed, high accuracy and low cost.
6. Advanced CNC control system, Auto Arc, arcing success rate over 99%.
7. Support G code files of Wental, ARTCAM, Typ3 software. Also support DXF files of AUTOCAD by transfer software. Control system supports U disk file transfer, easy operation.
8. Adopt well known plasma power supply and domestic cutting torch
Parameters:
Plasma cutting machine: QX-6090
Working area: 600X900mm
Working Material: Iron steel, Aluminum sheets, Galvnizad sheets, Titanium Plates
Cutting thickness: 0.5-15mm
Cutting speed: 0-8000mm/min
Power: 8.5KW
Input voltage: 3-phase 380V
Power frequency: 50Hz
Plasma Power: 100A
Files Transfer: USB Interface
Arc: Untouched arc striking
We are a serious supplier, and supply very good quality to our customers to keep ahead in the same filed. Just only one sample machine, you will find more surprised pleasure with own eyes. We guarantee everything under our inspection and control, including the selection of raw material, the research of the new technology and crafts, the inspection of production process, the packaging of the machines, the accurate and fast tech support.
QX Laser established long stable relationships with many famous universities and science and technology institutes in Shanghai and Beijing. Under the guidance of the scientific research team, QX Laser accomplished the whole processes from software exploitation, hardware design, and system detecting to technical supporting
