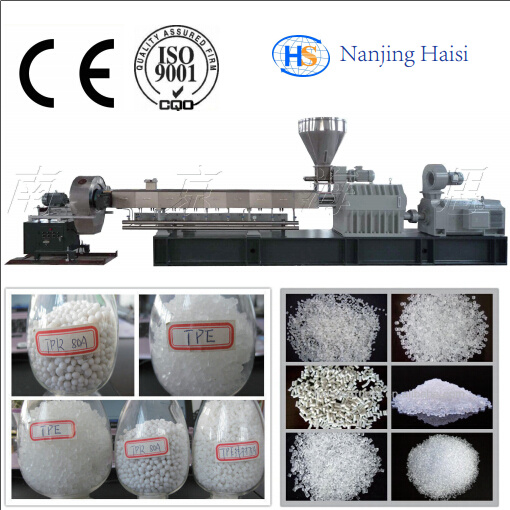

Plastic Beads Plastic Granule Machinery for Filling Masterbatch

Product Specifications

Prod Model:	TSE-65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Tse-65b
Motor Power:	75kw
Diammter:	62.4mm
L/D:	32-64
Screw Speed:	600r/Min
Capacity:	250-3500kg/H
Color:	Any Color as Required
Certification:	CE ISO9001 TUV SGS
Warranty:	1 Year
Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw
Screw:	Twin-Screw
Computerized:	Non-Computerized
Feeding Mode:	Multiple Feed
Product Type:	Granulating Extruder
Assembly Structure:	Separate Type Extruder
Exhaust:	Exhaust
Type:	Plastic Extruder
Automation:	Semi Automatic
Plastic Processed:	PE PP PC EVA ABS PA Polyethylene

Product Description

 Plastic beads plastic granule machinery  for filling masterbatch
1. Representative Material:
*Mixing nature-changing:
PE, PP, PS+SBS, PA+EPDM, PP+NBR, EVA+silicon rubber;
PE, PA, PC, CEP+ABS(alloy), PBT+PET, PP+PE
Filling nature-changing:
PE, PP, EVA, Calcium carbonate, talcum powder, titanic powder;
ABS, PC, PS, Aluminum hydroxide, magnesium hydroxide, antimony oxide;
PP, PA, ABS+ferrous powder, sulphuric powder, ceramic powder
Functional machine pellets:
PP, PA, ABS, PBT+anti-burning agent and other auxiliary agents: Combustion-supporting machine pellets;
PS+starch: De-composing machine pellets, PE+fog-preventing dipper, stabilizer: Dual-prevention machine pellets; PE, EVA, ABS+carbon black: Black machine pellets
Colored machine pellets:
PE, PP, ABS, AS, PA, EVA, PET+pigment and auxiliary
Intensified glass fibres and carboon fibres:
PP, PBT, ABS, AS, PA, PC, POM, PPS, PET+long fires, small fibres, crystals
Various cables:
HDPE, LDPE, LLDPE, MDPE, EVA, PVC, PP, Lnsulating cables;
PE peroxide silicon

2. Characteristics
*PP/PA/PC Plastic Granulator Of Plastic Extrusion Machine use innovated design of heater tightened style, it insures high efficiency of heat transfer and high longevity of heater.
*PP/PA/PC Plastic Granulator Of Plastic Extrusion Machine has Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing etc.
*The screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistant and high functions
*The screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different materials properties and requirements in consideration of the versatility in each general applications.

3. Certificate
CE/ISO9001

4. Haisi Shippment
All our products are packed witjh wooded cases or as customers required

5. Haisi Service Stystem
Before-sale:
*Introduce products in detail
*Recommend suitable solution
*Offer test

During Manufacturing:
*Provide layout and engineering conditions
*Offer screw plan and related documents
*Inform the project processing status
*Insure the product designed in accordance with technical document

After-sale:
*Provide installation, commissioning and training
*Offer spare parts
*Provide necessary techinical support and update infoamation

If you have any questions, pleasedon't hesitate to contact me or send an inquiry to me!

Mode	Diameter	L/D	Screw Speed		Screw Torque		Motor Power		Capacity		Weight
TSE-20	22mm	32-44	600r/min		43N.m		5.5kw		0.5-10kg/h		1000kg
TSE-30A	31mm	32-48	500r/min		105N.m		11kw		5-30kg/h		1500kg
TSE-30B	31mm		600r/min		119N.m		15kw		5-40kg/h		1500kg
TSE-35A/B	35.6mm	32-52	600r/min		119N.m		15-22kw		20-60kg/h
TSE-40A	41mm	32-64	400r/min		263N.m		22kw		65-110kg/h		3000kg
TSE-40B	41mm	32-52	600r/min		239N.m		30kw		90-150kg/h		3000kg
TSE-50A/B	50.5mm	32-52	500r/min		430N.m		45-55kw		135-270kg/h		3000kg
TSE-65A	62.4mm	32-52	400r/min		895N.m		75kw		180-250kg/h		4000kg
TSE-65A	62.4mm	32-52	500r/min		716N.m		75kw		180-270kg/h		4000kg
TSE-65B	62.4mm	32-64	600r/min		716N.m		90kw		200-300kg/h		4000kg
TSE-65C	62.4mm	32-64	600r/min		875N.m		110kw		220-350kg/h		4000kg
TSE-75A	71mm	32-56	400r/min		1074N.m		90kw		250-350kg/h		4000kg
TSE-75A	71mm		500r/min		1050N.m		110kw		300-420kg/h		4000kg
TSE-75B	71mm	32-64	600r/min		1050N.m		132kw		350-550kg/h		4000kg
TSE-75C	62.4mm	32-64	600r/min		1273N.m		160kw		400-600kg/h		4000kg
TSE-75D	71mm	32-64	600r/min		1990N.m		200-250kw		500-1000kg/h		4000kg
TSE-95A	93mm	32-64	500r/min		2387N.m		250kw		600-1000kg/h		4000kg
TSE-95B	93mm	32-64	600r/min		2506N.m		315kw		800-1200kg/h		4000kg
TSE-135A	93mm	32-64	500r/min		7162N.m		750kw		1500-2250kg/h		4000kg
