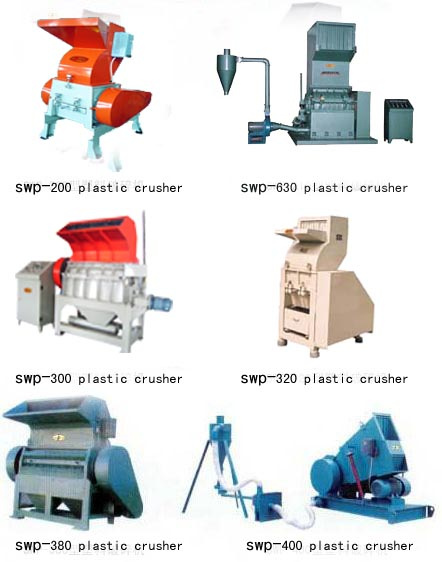

Plastic Crusher/Crushing Machinery:
The plastic crusher could use on recycling line or other ways. We have testing the machinery running before shippment.
The plastic crusher could use on recycling line or other ways. We have testing the machinery running before shippment, that make sure the quality well. Or send our technical worker to your place for testing.
As retrieving device for plastics, the machine is suitable for crush wastes of plastics and defective plastic runners to plastic granules. It is suitable for crush soft and foamed plastics. Adopting soundproof device; Would be remove the blades when the blades getting blunt. Suitable for crush all kinds of soft, hard and foam plastics.
|
Model |
SWP150 |
SWP200 |
SWP210 |
SWP300 |
SWP320 |
SWP380 |
SWP400 |
SWP630 |
Diameter of turning knife(mm)
|
150 |
200 |
210 |
300 |
320 |
380 |
400 |
630 |
|
Number of turning knife |
9 |
3 |
3 |
3 |
6/2 groups |
12/4 groups |
5 |
9/3 |
|
Turing speed of knife(r/min) |
730 |
870 |
500 |
640 |
650 |
650 |
500 |
480 |
|
Number of fixed knife |
2 |
2 |
2 |
3 |
2 |
8/4 groups |
2 |
4/2 |
|
aperture of screen panel |
φ 8 |
φ 8 |
φ 8 |
φ 12orφ 14 |
φ 8 |
φ 10 |
φ 10 |
φ 10 |
|
Crushing capacity(kg/h) |
60-200 |
50-110 |
80-120 |
50-250 |
250-350 |
100-400 |
350-450 |
700-850 |
|
power |
5.5 |
4 |
4 |
37 |
11 |
27.5 |
13.2 |
44 |
|
Current source |
380V50Hz |
|
Size of feeding gate(mm) |
150× 200 |
240× 350 |
250× 230 |
260× 1200 |
500× 280 |
268× 1120 |
375320 |
820610 |
|
weight(kg) |
|
300 |
320 |
2000 |
1400 |
800 |
980 |
5000 |
|
Outline dimension(mm) |
1200*820
*1160 |
1000*590
*1090 |
800*600
*1400 |
1550*1300
*1850 |
1613*1150
*1910 |
1800*1460
*1380 |
2500*1200
*2000 |
2500*1550
*2850 |
Zhangjiagang City Second Light Industry Machinery Co., Ltd. Was founded in 1958. It is the Plastic Machine Industry Association member units of China, and Plastic Machine Fixed-point production enterprise of Jiangsu province. Focused on R & D, production, marketing plastic machines. Main production: PET PP strap production line, Series single/double screw extruder, Series heating/cooling mixing machine and mixing unit, Plastic pipe\ sectional material \board \PPR\PE\PVC pipe production line, Granulation line, Concentrated feeding system, Dehumidification drier, Plastic mixing machine, Plastic crusher, Mould thermo regulator, Film recycling/PET flakes recycling washing line etc.
Our company's "Great wall" brand plastic machine Selling various provinces and cities, have exported to Russia/ Ukraine/ Turkey / Saudi Arabia/ Mexico/ Malaysia/ India/ Vietnam/ Japan and others more than twenty countries and areas. Our company have Strong technical force\Advanced equipment and facilities\The scientific management mode and Perfect after-sales service, act "honesty" as the purpose of the concept of operations, Continuously infuse new vigor and vitality.
Produce has passed ISO9001: 2000 Quality Management System Certification\SGS International Certification and Enterprise Credit etc. Our company will with advanced technology, high-quality products, and perfect service to offer new and old customers the products that you expect.
Welcome new and old customers come here or call us for more information.
