Product Specifications
| Prod Model: |
CSG-160 |
| Markets: |
Eastern Europe,Western Europe |
| Automatic: |
Yes |
| Computerized: |
Yes |
Product Description
1. Brief Introduction

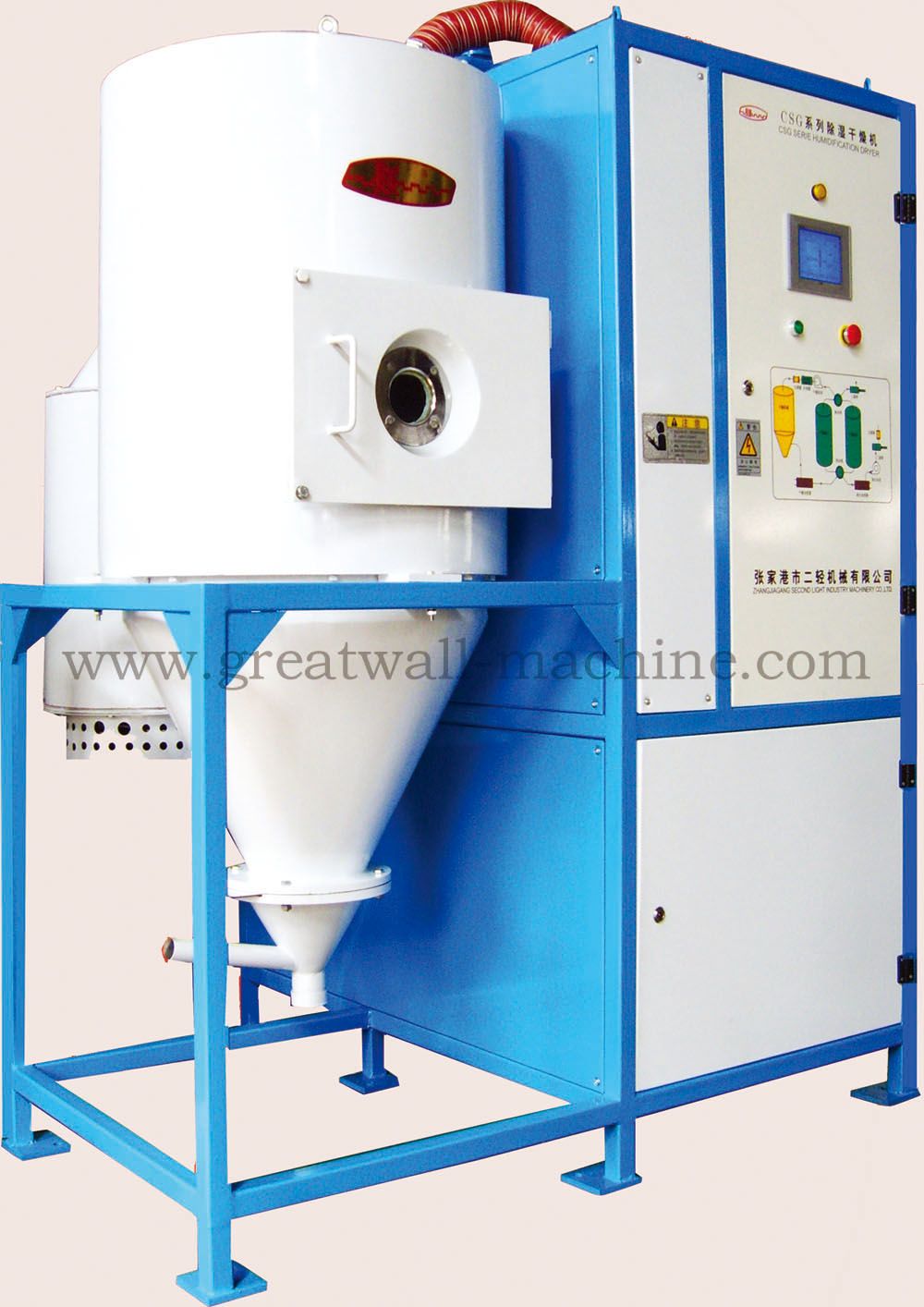

1.1 The drying of plastic raw material is essential for the high quality end products. This dehumidification drier can supply the dew point airflow which has be dewatered, and the airflow can pass through the plastic material then take away water in it.
1.2 The dehumidification drier is controlled by computer, so the drying of plastic particle and regeneration of molecular sieve is seriously according to computer program. The machine can be operated automatically or manually. It is convenient and reliable.
1.3 The dehumidification drier is matched with one hot-wind hopper, which can contain 100kg PET, on the top of the hopper, there is a hole, which can fix an automatic feeding machine on it and assure the continuous material supply.
2. Technical Parameters
2.1 Outline Dimension
Outline dimension of dehumidification drier: 1200× 700× 1700
Outline dimension of hot-wind hopper: 980× 600× 1580
2.2 Fan power
Power of drying fan 1.5kw
Power of regeneration fan: 0.37kw
2.3 Heater power
Drying heater: 6kw
Molecular sieve regeneration heater 6kw
2.4 Molecular sieve
Model: 13X
Specification and weight of each barrel: Φ5 12.5kg aggregately25 kg
2.5 the highest temperature of heating air: 180
2.6 regeneration temperature of molecular sieve: 250
2.7 Regeneration exchange time: 4hours
2.8 diameter of inlet for drying wind: ≤ 51
2.9 cooling water temperature≤ 30
2.10 Pressure of compressing air: 0.6Mpa
Zhangjiagang City Second Light Industry Machinery Co., Ltd. Was founded in 1958. It is the Plastic Machine Industry Association member units of China, and Plastic Machine Fixed-point production enterprise of Jiangsu province. Focused on R & D, production, marketing plastic machines. Main production: PET PP strap production line, Series single/double screw extruder, Series heating/cooling mixing machine and mixing unit, Plastic pipe\ sectional material \board \PPR\PE\PVC pipe production line, Granulation line, Concentrated feeding system, Dehumidification drier, Plastic mixing machine, Plastic crusher, Mould thermo regulator, Film recycling/PET flakes recycling washing line etc.
Our company's "Great wall" brand plastic machine Selling various provinces and cities, have exported to Russia/ Ukraine/ Turkey / Saudi Arabia/ Mexico/ Malaysia/ India/ Vietnam/ Japan and others more than twenty countries and areas. Our company have Strong technical force\Advanced equipment and facilities\The scientific management mode and Perfect after-sales service, act "honesty" as the purpose of the concept of operations, Continuously infuse new vigor and vitality.
Produce has passed ISO9001: 2000 Quality Management System Certification\SGS International Certification and Enterprise Credit etc. Our company will with advanced technology, high-quality products, and perfect service to offer new and old customers the products that you expect.
Welcome new and old customers come here or call us for more information.
