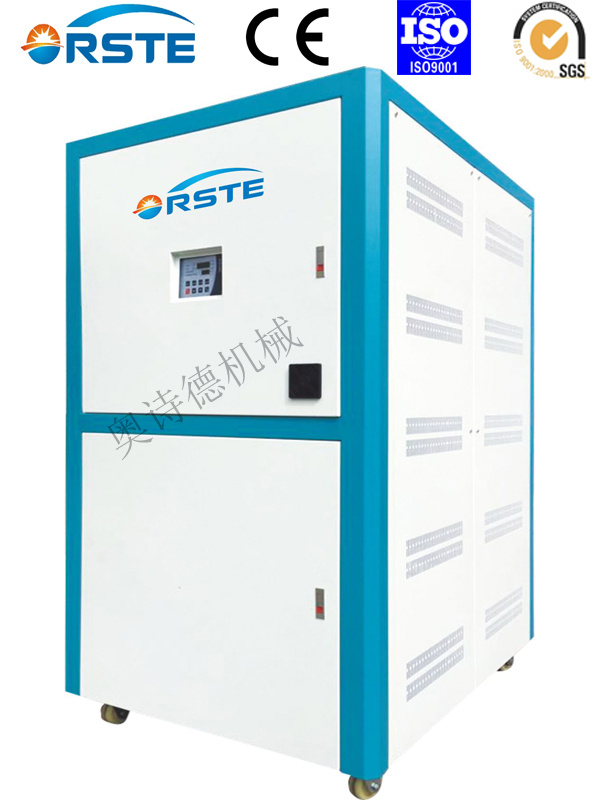

Plastic Drying Machine Equipment Rotary Honeycomb Dehumidifying Dryer Dehumidifier
| Price: |
US $ 2640-52400/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Plastic Drying Machine Equipment Rotary Honeycomb Dehumidifying Dryer Dehumidifier
Product Features
P.I.D temperature controller to accurately control regenerative temperature.
Adopt Japan Nichias molecular sieve honeycomb rotor which ensures good stable dehumidifying effect.
Detachable cooler is equipped for over-sized model, easy for maintenance and keeps a low return air temperature.
High density return air filter ensures no contamination to the honeycomb.
Temperature indication function for dehumidified outlet air temperature.
Efficient oil filter is optional.99% of oil can be removed, thus product quality can be greatly improved.
Application
ORD-H series rotary honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials.Under ideal conditions, the dew-point of dehumidified dry air can be lower than -40oC, the largest of which can provide dry air up to a quantity of 4,000 m3/hr.
What is Honeycomb Rotor?
The main part of honeycomb rotor is made by ceramic fiber and organic additives, sintered under high temperature with molecular sieve or silica gel as basic material to bond together with inside of honeycomb to form the honeycomb-like structure.Unlike common desiccant or rotary molecular sieve, then, when aging, will produce dust, followed by process air to drying hopper,to pollute plastic material.Honeycomb rotor offers unlimited long service life and can be cleaned and not like usual molecular sieve which is easy to get saturated or requiring regular replacement.The moisture of return air is quickly absorbed by molecular sieves when passing through numerous holes within honeycomb rotor.So when coming out of rotor, can form low dew-point air.Regenerating and dehumidifying have similar principle and run simultaneously.The only difference is that the two process winds are in opposite direction.
Product Parameters / Specifications| Model ORD- | 60H | 80H | 120H | 150H | 200H | 300H | 400H | 500H | 700H | 1000H | 1500H | 2000H | 3000H | 4000H |
| Rege.Heater (kw) | 2.5 | 2.5 | 2.5 | 4 | 6 | 7.2 | 7.2 | 10 | 10 | 15 | 20 | 20 | 32 | 40 |
| Rege.Blower (kw) | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.75 | 0.75 | 1.6 | 1.6 | 1.6 | 2.2 | 3 | 2.2*2 | 3×2 |
| Process Heater (kw) | 2.5 | 4 | 6 | 12 | 12 | 15 | 18 | 21 | 24 | 32 | 58 | 80 | 96 | 128 |
| Process Blower (kw) | 0.4 | 0.7 | 0.7 | 1.6 | 1.6 | 3 | 4 | 5.5 | 5.5 | 7.5 | 12.5 | 12.5×2 | 12.5×2 | 15×2 |
| Drying Air Quantity (m3/hr) | 60 | 80 | 120 | 150 | 200 | 300 | 400 | 500 | 700 | 1000 | 1500 | 2000 | 3000 | 4000 |
| Pipe Dia.(inch) | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 4 | 5 | 5 | 6 | 8 | 8 | 12 |
| Dimension | H (mm) | 1260 | 1360 | 1360 | 1560 | 1560 | 1745 | 1745 | 1935 | 1935 | 2145 | 2060 | 2060 | 2240 | 2060 |
| W (mm) | 480 | 530 | 530 | 660 | 660 | 700 | 700 | 900 | 900 | 1300 | 1410 | 1410 | 2035 | 2750 |
| D (mm) | 755 | 820 | 820 | 1050 | 1050 | 1255 | 1255 | 1380 | 1380 | 1550 | 2150 | 2150 | 2160 | 2250 |
| Weight (kg) | 145 | 170 | 170 | 260 | 265 | 320 | 330 | 470 | 480 | 700 | 1010 | 1300 | 1600 | 2200 |
David Wu
Dongguan Orste Machinery Equipment Co.,Ltd.
Add:No.11, Sanlian Mid.Rd., Luwu, Changping, Dongguan City, Guangdong Province, China.523587
Mobile:(0086)18948606110
Tel:(0086)0769-83810056
Fax:(0086)0769-82026886
Web.: www.orste.com
| Prod Model: |
ORD-60H ~ ORD-4000H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plastic Machinery: |
Plastic Dehumidifier |
| Pet Dehumidifier: |
Plastic Dehumidifying Dryer |
| Plastic Dryer: |
Dehumidifying Dryer |
| Honeycomb Dryer: |
Molecular Dryer |
| PVC Dehumidifier: |
Low Dew Point Dehumidifier |
| Structure: |
Rotary Type Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Vacuum Dryer |
| Heating Mode: |
Transmission |
| Movement Way: |
Spraying |
