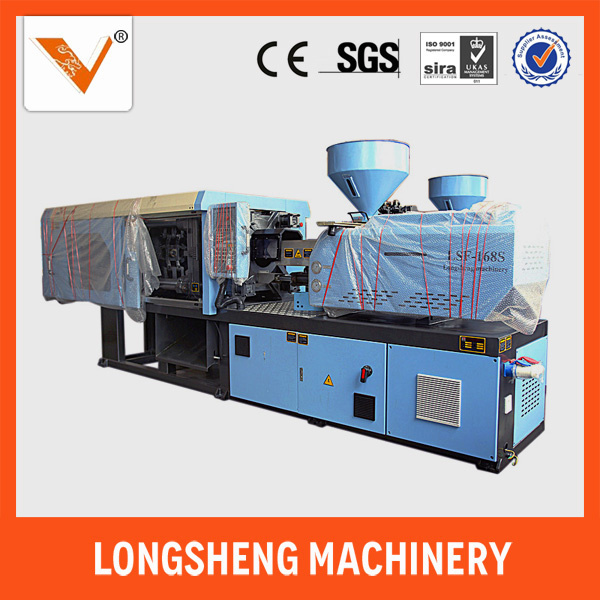

Plastic Injection Machinery

Plastic Injection Machinery
Supplier: Changzhou Longsheng Machinery Co., Ltd.
Price: US $ 40248/Piece
Min Order: 1set
Quantity::
Trade Terms: FOB,CFR,CIF
Payments:
Paypal VISA master Discover union pay T/T
contact supplier Add to Cart

Product Specifications

Prod Model: LSF308
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw Diameter: 67mm
Clamp Force: 3080kn
Space Between Tie Bars: 630X630
Toggle Stroke: 590mm
Max. Mold Height: 630mm
Min. Mold Height: 200mm
Injection Weight: 1030g
Machine Dimension(L*W*H): 6.15X1.56X2m
Machine Weight: 10.2t
Oil Tank Capacity: 650L
Type: Preform Injection
Structure: Horizontal
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Clamping Way: Hydraulic
Certification: SGS
Automation: Automatic
Computerized: Computerized

Product Description

Plastic  injection machinery suitable for processing and injection of PE, PVC, PP, PS, ABS, PC, Nylon(PA), PU, PET, PMMA(ACRYLIC), POM, LDPE, HDPE, PPR and all other thermoplastic raw material. clamping force of LONGSHENG injection moulding machine is from 68 ton to 3200ton.




INJECTION UNIT
 UnitLSF-308
ABC
Screw DiameterMm606770
Screw L/D RatioL/D21.619.818.6
Short SizeCm391811451250
Injection weightG83010301136
Injection Rateg/s177206239
Plasticing Capacityg/s414957
Injection PressureMpa193158142
Screw SpeedRpm0-185
Screw Strokemm324




CLAMPING UNIT
Clamp ForceKN3080
Space Between Tie Barsmm630X630
Toggle Strokemm590
Max. Mold Heightmm630
Min. Mold Heightmm200
Ejector Strokemm160
Ejector TonnageKN62
Ejector NumberP9


OTHERS
Max. pump PressureMpa16
Pump motor powderKw30
Heater PowerKw18
Machine Dimension(L*W*H)M6.15X1.56X2
Machine WeightT10.2
Oil Tank CapacityL650

 Machine Structure(Standard Configuration)
1. Adopting double-cylinder injection, with multilevel injection, pressure maintaining and anti-dribbling action, good injection pressure and good injection speed.
2. Low-speed high torque hydraulic motors drive screws directly, stepless speed changing is achieved.
3. Adopting five-pivot point double-elbow hydraulic machinery clamping devices and stable movement.
4. Adopting computer control, proportional electrohydraulic drive, auto-alarm, fail safe, high degree of automation.
5. Hydraulic motor actuate gearwheel to regulate mold.
6. Pre-molding and back-pressure regulator.
7. Low pressure protection for mold.
 8. Multiple hydraulic ejecting.
9. Hydraulic oil pressure, double-pump, double-proportion control.
 10. Single hydraulic inserting and taking-out core device.
 11. Mechanical and electrical safety device.
 12. Molding memory system.
 13. Liner displacement sensor control.
 14. Special computer for injection molding machine.
 15. The machine has "Manual" mode, "Semi-automatic" mode and "Automatic" mode. "Automatic" mode including "Electric Eye" automatic and "Time" automatic for users to choose.
 16. Hydraulic components are designed to be outside the machine, which is easy for installation and maintenance.
 Features:
 1)Plastic injection moulding machine hydraulic unit
  This unit of our plastic injection molding machine composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.
2)Plastic injection moulding machine clamping unit
    Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multi-eject Functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multilevel moulding devices according to the requirement of the user.
3)Plastic injection machine electronic equipments control
   It is adopted special computer of plastic-injection machine and advanced CPU controller. Which can raise the operating speed of the control system and warm of excess oil-temperature to ensure the working accuracy of machine.

Packaging & Shipping
 Packing: 1set in a wooden case
Payment: 30% deposit before production,70% before delivery


Our Services
Good Quality: Strict quality control system .Good reputation in the market.
Fast Delivery: High efficiency forwarder,quality ,quantity and timely shipment.
 Good Service: Our company provide one-stop service
Company Description
  As a national high-tech enterprise Since 2001 year , LONGSHENG MACHINERY has dozens of patents, for example, "hydraulic injection molding machine with clamping structure",
Besides the traditional link-type (toggle) injection molding machines of various specifications, LONGSHENG MACHINERY also has the most advanced full hydraulic two platen plastic injection molding machine, and formed a medical products, thermosetting injection molding , bi-color plastic,special machines and other system perform solutions.
What is the difference with other injection molding machine factories is that LONGSHENG MACHINERY has years of research and production experience of two platen injection molding machine, the innovations used in the field of injection molding machines, to achieve industrial applications.
The full hydraulic two platen plastic injection molding machine has the advantage that conventional rod machine do not have. Not only in the technical features, more reliability and convenience in embody the value of full hydraulic two platen plastic injection molding machines. The applications of hydraulic injection molding machine is the systemic breakthrough of the application of the traditional injection molding machine. In terms of technology, hydraulic application of the two platen structure, breaks the bottlenecks in the application of traditional mechanical structure of injection molding ,which enables customers to design more targeted application of more energy-efficient injection molding products.
For meeting your increasing demand,and insuring our users own more advantages in drastic competition, we will always struggle on the road and make more contributions for our clients,employees and society.


Changzhou Longsheng Machinery Co., Ltd locates in Zhonglou Scientech Industry Park of Changzhou, mainly produces and sells Plastic Injection Molding Machine, with high technology and reliable quality, our products are selling all over the world. We compare the price with the same quality, while compare quality with the same price, compare the service with the same quality and price, we regard it as our management tenet. We always integrate the optimized design associated with manufacture and good sales service together. We adopt 24hours-networking for sales service, all lifecycle services for products, smile is our characteristc service.

Ways to success, start from Longsheng. Longsheng Possesses solid strength, devoted to create a brand name ---Longsheng Machinery Series. The Clamp Force of our machines range from 600KN to 16800KN, Shot Weight range from 63G to 10000g, Plastic Injection Molding Machine is widely applied in the areas of automobile, mechanical, chemical, electrical, daily supplies, toys, etc.

With good quality, professional service and sincere credit, Longsheng will go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefit. Try to create a prosperous future with our customers as we always do.

Innovation is the sole of development for a company. The Sea Accepts All Things, Deriving More Things. The development of Longsheng is course of creative and exceed itself all the time. Study is the vital force of the enterprise, the Longsheng advocate study, and offer all-sided training to improve its staff. Devoted to everything on hand is the management concept of Longsheng, owning concentration and persistence, the enterprise could progress, the staff can improve themselves.
