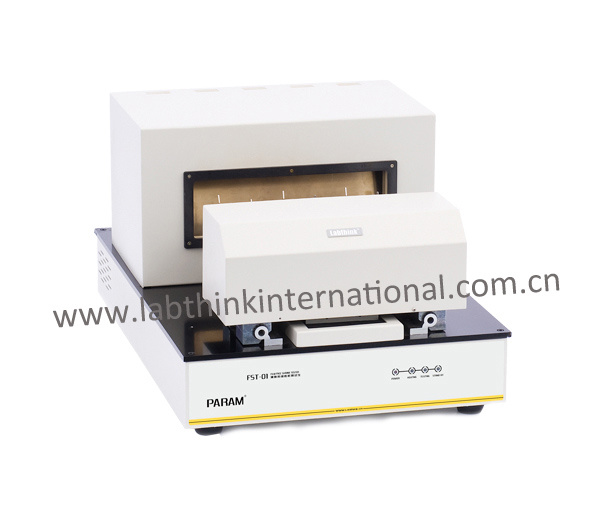

Plastic Linear Thermal Shrinkage Force Tester (ISO 14616)
| Price: |
US $ 2000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal |
This instrument is designed based on the ISO 14616 international standard. It is applicable to the precisely quantitative determination of the shrinking force, contracting force and shrinkage ratio for heatshrinkable plastic films during the thermal shrinkage process.
This Film Thermal Shrinkage Tester has the following merits:
1.3 groups of distinct or equivalent specimens can be tested at one operation
2. Shrinkage parameters can be accurately obtained by high precision load cell and displacement transducer
3. The system displays the real-time value of shrinking force, contracting force, shrinkage ratio and temperature curve during the test process.
|
Capacity Range |
0 ~ 30 N (standard)
NOTE: customization is available for other test range |
|
Accuracy |
±0.2% (Full Scale) |
|
Displacement Range |
0 ~ 100 mm |
|
Temperature Range |
Room temperature ~ 250°C |
|
Specimen Size |
130 mm x 15 mm |
| Prod Model: |
FST-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Heatshrinkable Films |
| Test Results: |
Including Shrinking Force, Contracting Force |
