Product Specifications
Prod Model: |
ODL-40 ~ ODL-600 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Hopper Loader: |
Drying Hopper |
Agent Wanted: |
Dring Loader |
Auto Loader: |
Hopper Dryer |
Feeder: |
Auto Loader |
Product Description

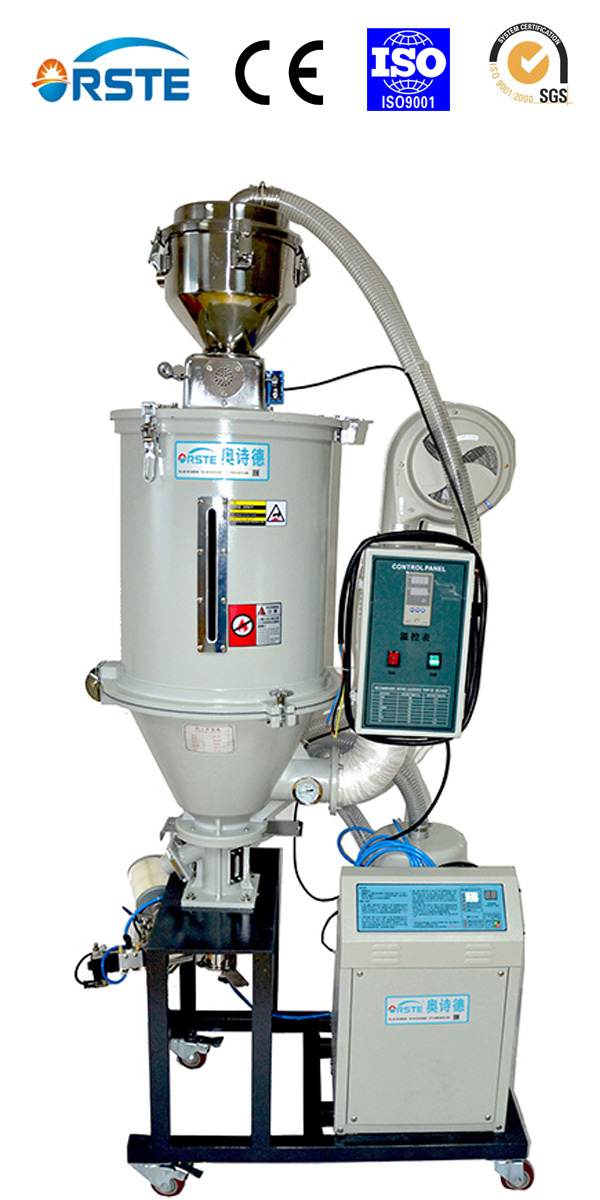

Plastic Machine Drying Hopper Loader 2015
Naming Principle
ODL - xxx - xxx
ODL: Orste Drying Loader
xxx: Hopper Capacity (L)
xxx: Loader Model
Product Features
1. Material-contact surface made of stainless steel to eliminate material contamination.
2. The closely casting aluminum shell ensures excellent insulation.
3. Hot air inlet elbow design can effectively avoid burning caused by dust piling up at the bottom of the pipe heaters.
4. The hopper design is convenient for cleaning and material change.
5. Accurate temperature controller guarantees easy control of temperature.
6. Overheat protection device makes machine run safely and reliably.
7. Dust-proof mute blower prevents dust from polluting material.
8. Material window in hopper and base makes it convenient to observe the material usage.
Parameters / Specification
Model | Applicable Dryer | Applicable Loader | Vacuum Hopper Receiver | Conveying Capacity (kg/hr) | Hopper Capacity (L) | Measurement (mm) | Weight (kg) |
ODL-40 | OHD-40 | OAL-1.5S | OAL-1S | 1 x OMH-7.5L | 300 | 1*7.5 | 620*1000*640 | 95 |
OAL-2S | 1 x OPH-7.5L 1 x OMH-7.5L | 450 | 2*7.5 |
ODL-80 | OHD-80 | OAL-1.5S | OAL-1S | 1 x OMH-7.5L | 300 | 1*7.5 | 750*1000*640 | 110 |
OAL-2S | 1 x OPH-7.5L 1 x OMH-7.5L | 450 | 2*7.5 |
ODL-120 | OHD-120 | OAL-1.5S | OAL-1S | 1 x OMH-7.5L | 300 | 1*7.5 | 850*1000*640 | 115 |
OAL-2S | 1 x OPH-7.5L 1 x OMH-7.5L | 450 | 2*7.5 |
ODL-160 | OHD-160 | OAL-1.5S | OAL-1S | 1 x OMH-7.5L | 300 | 1*7.5 | 950*1080*710 | 155 |
OAL-2S | 1 x OPH-7.5L 1 x OMH-7.5L | 450 | 2*7.5 |
ODL-300 | OHD-300 | OAL-1S | 1 x OMH-7.5L | 300 | 1*7.5 | 2000*1080*710 | 160 |
OAL-2S | 1 x OPH-7.5L 1 x OMH-7.5L | 450 | 2*7.5 |
ODL-600 | OHD-600 | OAL-2S | 1 x OMH-7.5L | 400 | 12 | 3850*1140*840 | 210 |
OAL-3S | 1 x OPH-7.5L 1 x OMH-7.5L | 700 | 2*12 |
