Product Specifications
| Prod Model: |
LSF-148 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Voltage: |
Custom |
| Type: |
Preform Injection |
| Automation: |
Automatic |
| Structure: |
Horizontal |
| Computerized: |
Computerized |
| Plastic Type: |
Thermoplastic |
| Plasticizing Way: |
Screw Type |
| Clamping Way: |
Hydraulic & Mechanical |
| Certification: |
ISO9001:2008 |
Product Description

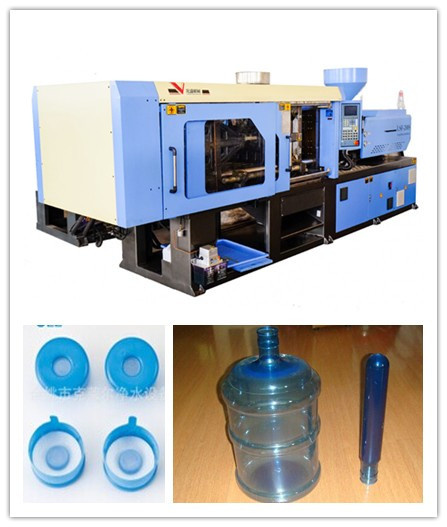

Plastic machinery
Clamping Unit:
1. Optimized Platen Design with high rigidity and enlarged space between tie bars
2. Euromap-based Platen Layout, locating design in moving platen to better suit various molds
3. New ejection system design with longer ejection stroke, bigger space and better rigidity
4. Hydraulic drivien gear-type mold height adjustion mechanism
5. Relocation of mechanical safety interlock for easier operation
6. Linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit:
1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2. High Speed & Pressure injection structure can improve the injection speed
3. Twin nozzle cylinder ensures more even & stable structure
4. Specialized screw barrel design for various appliance
Hydraulic System:
1. The double proportional compound valve control system pressure & flow, highly sensitive & stable
2. Imported high quality Pump, low noise, long lifespan & stable in performance
3. World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4. The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5. High performance hydraulic valve, less failure, fast switch, convenient maintenance
6. Low pressure mold protect system, which is more suitable for the precise mould
7. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
Electrical System:
1. Control by double CPU, the system HMI use X86 300MHz technical grade display. The system employees a RISC 140MHz microprofessor, with high speed, noise-immunity, fan-less and lower power consumption, independent control structure improve the stablity of control
2. Porcheson display screen, user friendly screen & optional choose of language
3. Equiped with USB(2.0) port & ethernet(100-base T) ports
4.32 Points input & output, entendable and trouble spot can be replaced easily
5.120 technological parameters access can be stored & uploaded with an ordinary USB drives
6. Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, dynamic warningis exhibited, all these make the operation more convenient.
Servo Controller Part:
1. High Precise Control
The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%
2. High sensitive response
Because the motor vector is matched with the controller accurately, it only takes 0.5sec. Inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, AF series is more faster in speed with shorter cycle time and high efficient in production
3. Energy Saving
Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 30-80% energy, and achieve first-class energy efficency
Services:
24 hours technical support by email.
One year guarantee
Calling or door to door services
Changzhou Longsheng Machinery Co., Ltd locates in Zhonglou Scientech Industry Park of Changzhou, mainly produces and sells Plastic Injection Molding Machine, with high technology and reliable quality, our products are selling all over the world. We compare the price with the same quality, while compare quality with the same price, compare the service with the same quality and price, we regard it as our management tenet. We always integrate the optimized design associated with manufacture and good sales service together. We adopt 24hours-networking for sales service, all lifecycle services for products, smile is our characteristc service.
Ways to success, start from Longsheng. Longsheng Possesses solid strength, devoted to create a brand name ---Longsheng Machinery Series. The Clamp Force of our machines range from 600KN to 16800KN, Shot Weight range from 63G to 10000g, Plastic Injection Molding Machine is widely applied in the areas of automobile, mechanical, chemical, electrical, daily supplies, toys, etc.
With good quality, professional service and sincere credit, Longsheng will go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefit. Try to create a prosperous future with our customers as we always do.
