Product Specifications
| Prod Model: |
plastic material drip irrigation pipe |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flow Rate: |
2-4 |
| Wall Thickness: |
0.18~0.6mm |
| Diameter: |
16mm |
| Length: |
100~1000m |
| Working Pressure: |
0.1~0.3 |
| Dripper Spacing: |
100~500 |
| Tape Material: |
PE |
| Application: |
Drip Irrigation |
| Quality: |
First-Class and Durable |
| Cost: |
Low |
| Capability: |
Water Rubber Hose |
| Material: |
PE |
| Color: |
Customized |
Product Description

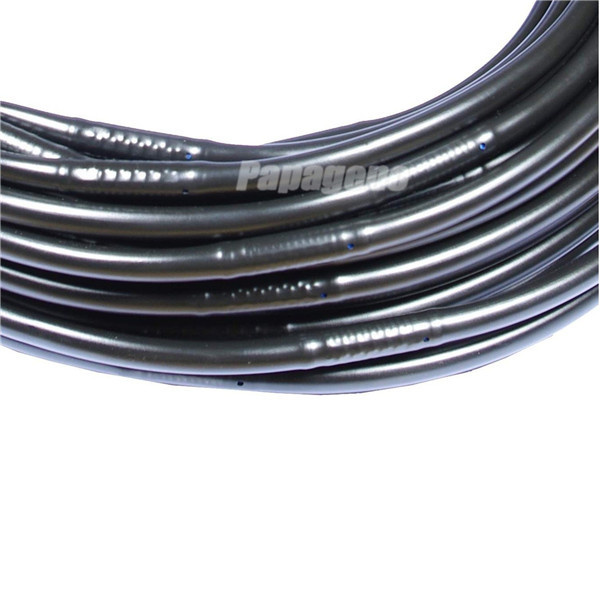

Drip irrigation pipe
Material:PE
Diameter:16mm
Wall thickness:0.5mm,0.6mm,0.7mm0.8mm,0.9mm,1.0mm,1.1mm,1.2mm or according to customer's request
Drip spacing:10cm,20cm,30cm,40cm,50cm to 200cm or according to customer's request.
Pressure:1-3 bar
Flow rate:2L/H,3L/H,4L/H
1. The labyrinth flow path is long, ensuring that the water dripping is stable.
2. High water pressure and long flow path enable the turbulent flow inside the emitters so that the emitters can wash themselves continuously.
3. The filter square of water dripping entrance is big then the anti-blocking capacity is strengthened.
4. There can be one,two or four water dripping outlets on each emitter, which greatly lowers the risk of water interception due to the outside blocking.
5. The mosaic whole type emitter has been installed before it's taken out from factory, which reduces the emitter installation fee and lowers the cost.
6. The paving length can reach up to 100m.
7. It's firm and can be used in all seasons.
8. Compared with common drip irrigation tape, it has stronger environment adaptability, better anti-blocking capacity, fewer requirements for water quality, more stable water dripping and longer service life( The service life of irrigation tape is 3-5years normally);

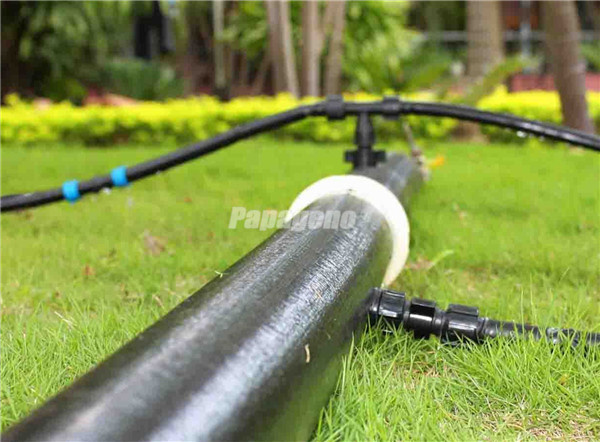

9. It's more suitable for economic crops, greenhouse, garden,greening project, desert improving,full-buried type irrigation etc. The distance between emitters can be adjusted according to the actual needs.
Nominal diameter
(mm) |
Thickness
(mm) |
Length of roll
(m) |
Flow rate
(L/H) |
Working pressure
(Mpa) |
Dripper spacing
(mm) |
16 |
0.5~1.2 |
500 |
2~4 |
0.1~0.3 |
100~500 |
Tianjin Papageno Plastic and Rubber Products Co., Ltd. is located in the the Jinnan Haihe Industrial Zone, We are a professional Manufacturer of industrial hoses and cable drag chains. The main products are: PVC Hoses, Pneumatic Hoses, Fire Hose, Garden Hose, Irrigation hose, Flexible air duct, Flexible conduit, Cable drag chains, Hose Fittings & Clamps. We have advanced equipments for production and testing in order to guarantee the high quality of our products. Our products have been approved by FDA, RoHS SGS testing standard. We always engage in the middle and high-end market. 70% of our products are for export, our main customers spread throughout Europe, North America, South America, Middle East and South Africa, by now we have established good trade relations with Germany, Russia, the United States, Brazil, UAE, Qatar, Bahrain, South Africa, and many other countries and regions. No business is small business, we put customer first, so the small orders are welcomed. Non-standard sizes also could be customized. By virtue of the high quality products, a young professional team, efficient service, competitive price and fast transport, we are full of confidence to establish a win-win cooperation with you. Let' S work together.
