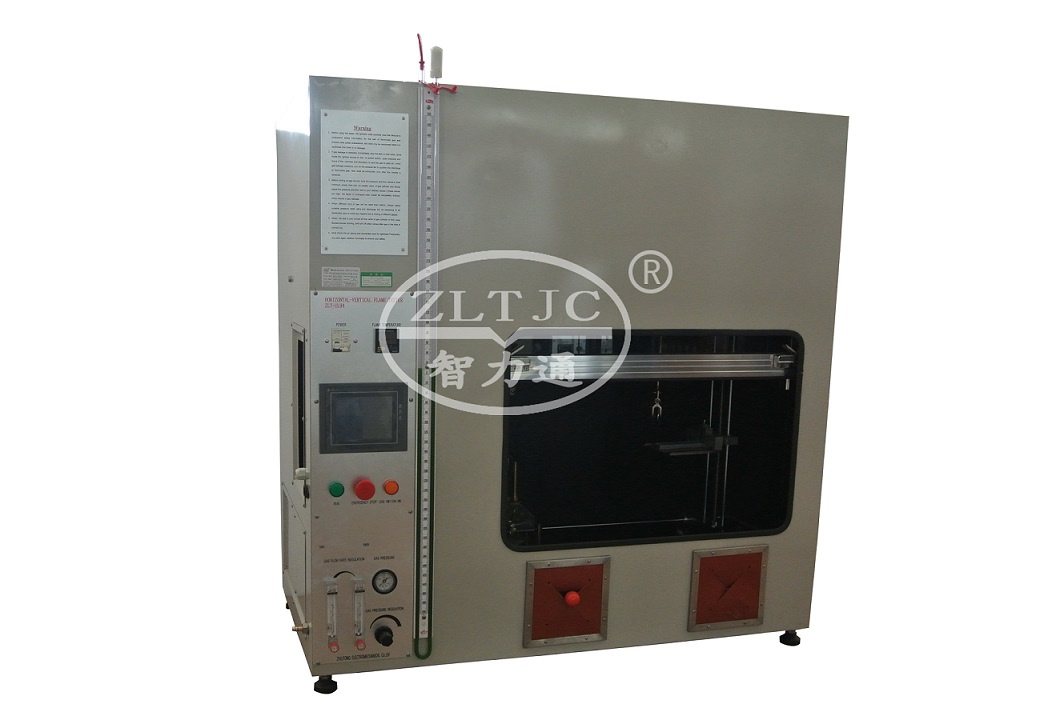

Plastic Materials Flammability Test Device

Name: Plastic Materials Flammability Test Device
Brand: China-Manufacturer-Directory.com
SKU: 734320725
Availability: InStock
Rating: 4.9 (122 reviews)

Supplier:	Guangzhou Zhilitong Electromechanical Co., Ltd.
Price:	US $ 5000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	ZLT-UL94
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
UL94:	Flammablility Test
Weight:	100-500Kg
Power Source:	AC220V
Type:	Flammability Tester

Product Description

Horizontal-Vertical Flame Tester
The ZLT Horizontal-Vertical Flame Chamber Tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. It screening procedure for comparing the relative burning behaviour specimens made from plastic and other non-metallic materials, exposed to a flame ignition source of 50W or 500W nominal power. These test methods determine the linear burning rate and the afterflame/afterglow times, as well as the damaged length of specimens. They are applicable to solid and cellular materials that have an apparent density of not less than 250kg/m3, determined in accordance with ISO845. Then do not apply to materials that shrink away from the applied flame without ignitiong; ISO9773 should be used for thin flexible materials. And it's the combustion test device of plastic materials represented by UL-94. It can perform each test of HB, V0 to V2, 5V and VTM, HBF.
Includes: Flame height gauge and 100% absorbent cotton

Model	ZLT-HV50	ZLT-HV500	ZLT-HV1000	ZLT-UL94
Test Flame	50W(burning test for V-0, V-1, V-2 classification)	500W(burning test for 5VA, V5VB classification)	1000W	50W and 500W
Burner Tube	Internal diameter: Φ 9.5mm± 0.3mm, length: 100mm± 10mm	Internal diameter: Φ 9.5mm± 0.3mm, length: 100mm± 10mm	Internal diameter: Φ 12mm± 0.1mm, length: 110mm± 0.1mm	Internal diameter: Φ 9.5mm± 0.3mm, length: 100mm± 10mm
Burning Angle	0° , 20° , 45°	0° , 20° , 45°	0° , 20° , 45°	0° , 20° , 45°
Thermocouple	Type K (Ni/Cr - Ni/Al)	Type K (Ni/Cr - Ni/Al)	Type K (Ni/Cr - Ni/Al)	Type K (Ni/Cr - Ni/Al)
Thermocouple Size O/D	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Standard Copper Block	Φ 5.5mm± 0.01mm, weight: 1.76g± 0.01g before drilling. Cu-ETP	Φ 9mm± 0.01mm, weight: 10g± 0.05g before drilling. Cu-ETP	Φ 9mm± 0.01mm, weight: 10g± 0.05g before drilling. Cu-ETP	Φ 5.5mm± 0.01mm, weight: 1.76g± 0.01g before drilling. AndΦ 9mm± 0.01mm, weight: 10g± 0.05g before drilling. Cu-ETP
Time for Temperature to Increase	From 100° C± 5° C to 700° C± 3° C; 44s± 2s (preset)	From 100° C± 5° C to 700° C± 3° C; 54s± 2s (preset)	From 100° C± 5° C to 700° C± 3° C; 45s± 5s (preset)	From 100° C± 5° C to 700° C± 3° C; 54s± 2s and 54s± 2s(preset)
Overall Height	18mm~22mm(adjustable)	38mm~42mm(adjustable)	50mm~60mm(adjustable)	20± 2mm/40± 2mm(adjustable)
Gas Supply(do not provide)	methane, min. 98% purity	methane, min. 98% purity	propane, min. 98% purity, and air	methane, min. 98% purity
Flowmeter	105± 10ml/min	965± 30ml/min	650± 30ml/min, 10± 0.5l/min	105± 10ml/min and 965± 30ml/min
Manometer	0KPa to 7.5KPa	0KPa to 7.5KPa	0 MPa to 0.1MPa	0KPa to 7.5KPa
Input Power	220 V 50 Hz 3A or 115 V 60Hz Optional	220 V 50 Hz 3A or 115 V 60Hz Optional	220 V 50 Hz 3A or 115 V 60Hz Optional	220 V 50 Hz 3A or 115 V 60Hz Optional
Volume Of Chamber	> 0.75m³ , black interior	> 0.75m³ , black interior	> 1m³ , black interior	> 0.75m³ , black interior
Outer Dimensions	WDH=1192580 1190mm	WDH=1192580 1190mm	WDH=1220700 1500mm	WDH=1192580 1190mm
Conform to standard	UL94, IEC60695-11-4, IEC60695-11-10	UL94, IEC60695-11-3, IEC60695-11-20	IEC60695-11-2	UL94, IEC69695-11-3/4, IEC60695-11-10/20

Establised at the end of last century, Guangzhou Zhilitong Electromechanical Co., Ltd. is an high-tech private enterprise which integrates the R&D, manufacturing and consulting service of cable wires (accord to IEC, UL, CSA, GB, BS) test equipments, and accessories, and home appliance test equipment.

With the business tenet of "Pioneering for progress, quality first, mutual benefit", Zhilitong' S staff have always kept conscientious work attitude and professional service to meet the customers requirement. With advanced technology, world-class equipment and precision test equipment, we can offer you the high quality products and excellent service.

In the past ten years, our products are sold in the Asian market and have gained good reputation in our customers with the brand of "ZLTJC". Now, we hope to offer the highest quality electrical test equipments and render the most favorable service to more places around the world.
