Plastic Pipe PPR Pipe for Drinking Water

Product Specifications

Prod Model:	RP169
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Loading Port:	Shanghai & Ningbo Port
Place Of Origin:	Shanghai China (Mainland)
Specification:	20 - 160 Mm
Life Span:	Over 50 Years
OEM:	Yes
Color:	Green Grey White
Material:	PPR

Product Description

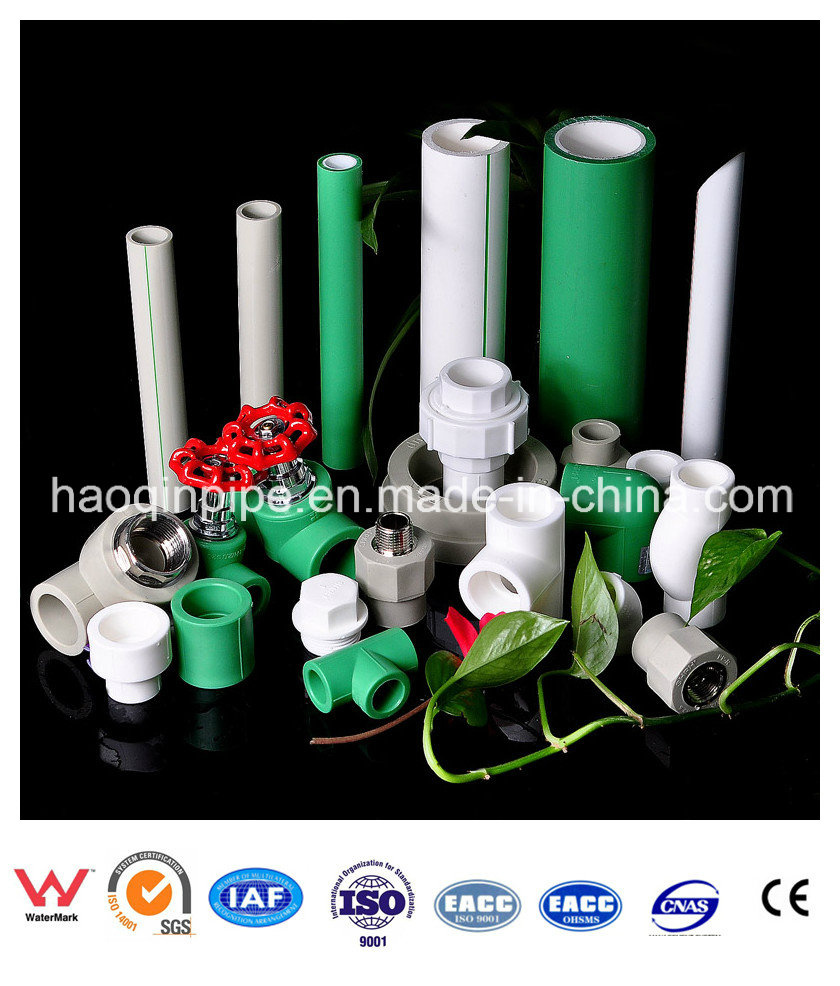

PPR Pipes and fittings
I
Specifications
1) Standard: German DIN 8077/8078 ISO15478
2) Colors: white, gray, green, Dimensions:16 - 160m
4) customers' logo are accepted
Features:
Material: Good PPR (HYOSUNG R200P,Korea)and brass inserts
Pressure Rating: 2.5MPa
Standard: ISO 15874: 2003, DIN8077-8078
Production temperature: -40 - +95C
Certification: ISO9001, ISO14001, AENOR.
Color: Green, White, Grey etc.
Size: 16-160 mm

Applications:
cold or hot water supply, heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.

Advantages:
High temperature resistance: the maximum sustained working temperature is up to 70 degrees, the maximum transient temperature is up to 95 degrees
Heat preservation: low thermal conductivity result in preserving heat
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
Lower installation costs: light weight and ease of installation can reduce installation costs
Higher flow capacity: smooth interior walls result in low pressure loss and high volume


PP-R  PIPE --COLOR: WHITE,GREEN,WHITE
Description	Size (mm)	Weight (kg/m)	Packing     (m/pkg)	N.W/Pkg (kg)	G.W/Pkg(kg)
S5       COLD WATER 1.25MPa	20×2.0	0.118	120	14.16	14.98
	25×2.3	0.164	120	19.68	19.98
	32×2.9	0.267	80	21.36	21.66
	40×3.7	0.412	60	24.72	25.02
	50×4.6	0.638	40	25.52	25.82
	63×5.8	1.01	24	24.24	24.44
	75×6.8	1.42	16	22.72	22.92
	90×8.2	2.1	8	16.80	17.00
	110×10	2.85	8	22.80	23.00
	160×14.6	6.38	4	25.52	25.72
Description	Size (mm)	Weight (kg/m)	Packing     (m/pkg)	N.W/Pkg (kg)	G.W/Pkg(kg)
S4       COLD WATER 1.6MPa	20×2.3	0.127	120	15.24	15.54
	25×2.8	0.191	120	22.92	23.22
	32×3.6	0.313	80	25.04	25.34
	40×4.5	0.487	60	29.22	29.52
	50×5.6	0.755	40	30.20	30.50
	63×7.1	1.2	24	28.80	29.00
	75×8.4	1.69	16	27.04	27.24
	90×10.1	2.44	8	19.52	19.72
	110×12.3	3.7	8	29.60	29.80
	160×17.9	7.82	4	31.28	30.68
Description	Size (mm)	Weight (kg/m)	Packing     (m/pkg)	N.W/Pkg (kg)	G.W/Pkg(kg)
S3.2        HOT WATER 2.0MPa	20×2.8	0.148	120	17.76	18.06
	25×3.5	0.23	120	27.60	27.90
	32×4.4	0.37	80	29.60	29.90
	40×5.5	0.575	60	34.50	34.80
	50×6.9	0.896	40	35.84	36.14
	63×8.6	1.42	24	34.08	34.28
	75×10.3	2.01	16	32.16	32.36
	90×12.3	2.87	8	22.96	23.16
	110×15.1	4.3	8	34.40	34.60
	160×21.9	9.04	4	36.16	36.36
Description	Size (mm)	Weight (kg/m)	Packing     (m/pkg)	N.W/Pkg (kg)	G.W/Pkg(kg)
S2.5        HOT WATER 2.5MPa	20×3.4	0.172	120	20.64	20.94
	25×4.2	0.266	120	31.92	32.22
	32×5.4	0.434	80	34.72	35.02
	40×6.7	0.671	60	40.26	40.56
	50×8.3	1.04	40	41.60	41.90
	63×10.5	1.65	24	39.60	39.80
	75×12.5	2.34	16	37.44	37.64
	90×15	3.36	8	26.88	27.08
	110×18.3	5.01	8	40.08	40.28
	160×26.6	10.6	4	42.40	42.60
