Product Specifications
| Prod Model: |
MSPVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Custom Made |
| Main Electric Components: |
Siemens |
| Inverter: |
ABB |
| Temperature Controller: |
Omron |
| Technical Support: |
Lifetime |
| Guarantee: |
One Year |
| Test: |
It Will Be Tested Before Shipment |
| Main Motor: |
Siemens |
| Relay: |
Omron |
| After Sale Service: |
Engineers Can Install and Train Machine Abroad |
| Product Type: |
PVC Pipe |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
ISO9001:2008 |
Product Description

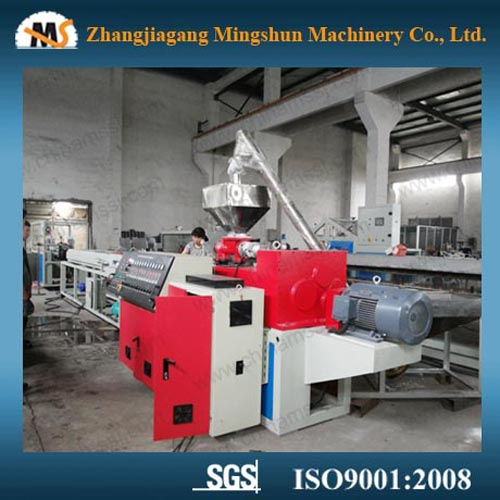

The advantages of plastic pvc double pipe machinery:
1. Easy operation: The two pipes work independently without effect on each other.
2. Independent vacuum and low power consumption.
3. Chipless cutting: High cutting speed and no chip.
4. Mobile printing system: Controlled by computer with accurate orientation.
5. The production line can save place, time and labor.
6. If using SJSZ80/156 extruder, it can produce four pipes at the same time.
The working process of plastic pvc double pipe machinery:
Raw material+additive ------ mixing-------feeding ---------conical double screw extruder------- mould -------vacuum cooling tank -------haul-off unit -------automatic cutting machine ---------stacker.
The auxiliary equipments are mixer, printer, belling machine, crusher and so on.
| Pipe diameter (mm) | 16-40 | 16-63 | 16-110 | 50-160 | 75-250 | 110-315 | 200-450 | 315-630 |
| Output (kg/h) | 80-140 | 180-250 | 80-140 | 180-250 | 300-450 | 300-450 | 500-700 | 500-700 |
| Production rate (m/min) | 1-15 | 1-10 | 1-8 | 0.5-5 | 0.4-4 | 0.3-3 | 0.2-2 | 0.1-1 |
| Twin Extruder model | 51/105 | 65/132 | 51/105 | 65/132 | 80/156 | 80/156 | 92/188 | 92/188 |
| Installed power (KW) | 60 | 90 | 70 | 110 | 140 | 180 | 200 | 240 |
| Center height (mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | 1200 | 1200 |
| Installation area (m) | 22x2.5x3 | 24x2.5x3 | 24x2.5x3 | 24x2.5x3 | 28x2.5x3 | 32x3x3 | 36x3x3 | 40x3.5x3 |
| Worker | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2-3 |
Packing information:
Main parts are covered with plastic film, then be placed on wood pallets, next be fixed in container.
Our Service:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
Factory introduction:
We are a medium size factory. It is near Shanghai city. We have ISO9001:2008 and be verified by SGS company. You know SGS is one leader of inspection, testing, certification and verification on the world.
We manufacture plastic straight/coiled pipe machine, pipe belling machine, plastic profile/panel/ceiling machine, plastic pelletizing line, shredder, mixer, crusher and so on.
In last few years we have exported to Russia, Belarus, Ukraine, South Africa, Nigeria, Zambia, Morocco, Saudi Arabia, Egypt, Jordan, Pakistan, Bangladesh, Uzbekistan, Argentina, Mexico, Uetc.
For some main parts, we usually use Siemens/ABB/Omron/ Schneider brands in order to ensure better quality.
Zhangjiagang Mingshun machinery Co., Ltd is a medium factory. It is located in Zhangjiagang city, Jiangsu Province, China. It is close to Shanghai, Nanjing, Ningbo, Suzhou, and Wuxi cities. The geographical position is superior.
Our main machines include plastic extruder, plastic pipe production line, plastic profile/ceiling/ panel production line, plastic pelletizing machines, PVC pipe belling machine, shredder, mixer, crusher and so on. We can produce specific units according to your requirements.
We have ISO9001: 2008 and be verified by SGS company. Some production lines have test reports from SGS company. As you know SGS is a famous leader of inspection, testing, certification and verification company. So do business with us, your money is safe. Your business is safe.
In last few years we have exported to Russia, Ukraine, Belarus, Saudi Arabia, Egypt, Jordan, Pakistan, Bangladesh, India, South Africa, Nigeria, Zambia, Morocco, Argentina, Mexico, Uruguay, etc.
Warmly welcome new and old customers to visit our factory. Sincerely provide you with better quality, competitive price, and patient service.
