Product Specifications
| Prod Model: |
Plastic structured packing |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Plastic Structured Packing |
| Material: |
Plastic |
| Structure Feature: |
Ring Form Filler |
| Type: |
Structured Packing |
| Usage: |
Chemical Industry Product |
| Effect: |
Improve The Wear Resistance |
| Source: |
Particle |
| Packing: |
With Valve Bags |
Product Description
1. Plastic Wire Gauze Packing
A. Product characteristics:
The packing is made from admixture knit mesh of Polypropylene wire and Polyacrylonitrile wire, therefore it has good chemical stability. The packing is prepared in? 150-250mm cylinders and should be fully filled on the tower section. The packing is corrosion resistant and light(only 120kg per cubic meter), but should be used not higher than 80º C in normal conditions.
B. Application fields:
The packing is suitable for absorbing process with pressure 0.1-100Kpa under normal temperature and countercurrent flow reclaiming process with low liquid spray loading e. G. Purification of waste gas, etc. It is usually used in low temperature (lower than 80º C) to absorb NH3/HCl and SO2 or water soluble solvents like acetone, acrylonitrile, methanol, alcohol, methanal, etc, as well as in the absorption of strong off odor matter like amine, thioalcohol and so on. Consequently it has a good effect in environmental protection field.

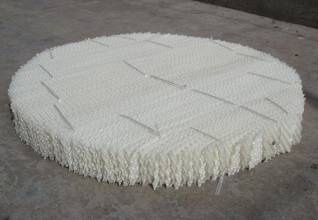

2. Plastic Corrugated Packing
A. Product characteristics:
The packing has advantages such as light, high capacity, low pressure drop, large specific surface area, easy replacement, etc. It is widely used in unit operations like rectification, absorption and extraction. The material's heat resistance reaches 100º C for PP and 150º C for PVDF. The packing sheet may be perforated with small holes to increase mass transfer efficiency. If the separation requirement is not high, it needs no perforation to increase sheet stiffness.
B. Application fields:
The packing is widely used in absorption and desorption unit operation. It is especially suitable for those processes with high liquid loading and high operation pressure, e. G. Hydrochloric acid and sulfuric acid industry, stripping of CO2 and H2S in natural gas, chlorine gas drying, ammonia preparation, purification treatment of waste gases and desorption apparatus.
| Characteristic data: |
| Type | Theoretical | Specific | Void | Pressure | Bulk | Liquid | Maximal F |
| plate | surface | volume | drop | density | loading | factor |
| number m-1 | area | m³ /m³ | MPa/m³ | Kg/m³ | m³ /m² . Hn | m/s(Kg/m³ )0. 5 |
| | m² /m³ | | | | | |
| SB-125Y | 1-2 | 125 | 0. 985 | 2*10(-4) | 37. 5 | 0. 2-100 | 3 |
| SB-250Y | 2-2. 5 | 250 | 0. 97 | 3*10(-4) | 75 | 0. 2-100 | 2. 6 |
| SB-350Y | 3. 5-4 | 350 | 0. 95 | 2*10(-4) | 105 | 0. 2-100 | 2. 0 |
| SB-500Y | 4-4. 5 | 500 | 0. 93 | 3*10(-4) | 150 | 0. 2-100 | 1. 8 |
| SB-125X | 0. 8-0. 9 | 125 | 0. 985 | 1. 4*10(-4) | 37. 5 | 0. 2-100 | 3. 5 |
| SB-250X | 1. 5-2 | 250 | 0. 97 | 1. 8*10(-4) | 75 | 0. 2-100 | 2. 8 |
| SB-350X | 2. 3-2. 8 | 350 | 0. 95 | 1. 3*10(-4) | 105 | 0. 2-100 | 2. 2 |
| SB-500X | 2. 8-3. 2 | 500 | 0. 93 | 1. 8*10(-4) | 150 | 0. 2-100 | 2. 0 |
Shipping: By vessel or plane from any Chinese port
Our service:
Provide sample for test before order
Provide competitive price
Arrange prodcution on time
Control product quality and delivery time
Provide finished products and packing photos
Book the earliest and fast vessel
Provide original document and original certificate
After sale serivce
