Function:

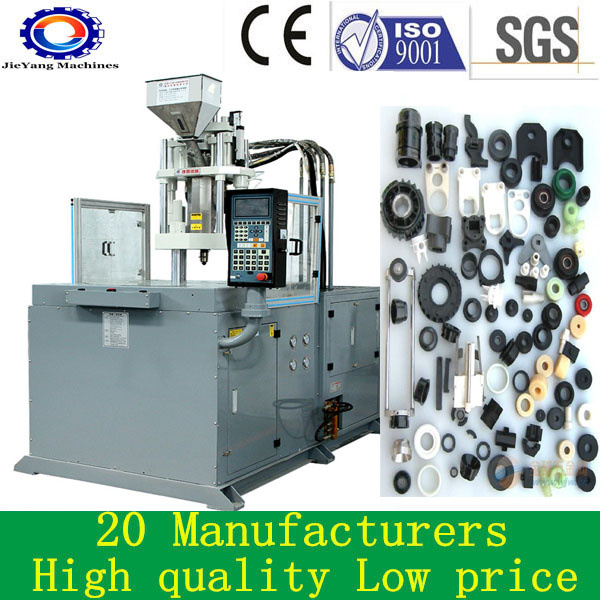

1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
2.With double slide table or rotary design, putin, take out products and molding
finish at the same time, which is more safe and efficient for production , then
reduce the cost of production.
3.High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatlyextend machine
& mold life.
4.Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and
provide superior acid/alkaline resistance.
5.Standard : Varuable Pump for Energy Saving 30%-50%
Parameter of Machine:
JY-1000SWT /2000SWT Technique specification |
Model | Units | JY-1000SWT | JY-2000SWT |
Injection System | Screw Diameter | mm | 42 | 45 | 50 | 55 | 60 | 70 |
Injection Pressure | Kg/cm2 | 1015 | 885 | 717 | 2036 | 1711 | 1257 |
Theoretical Shot volume | cm3 | 263 | 302 | 373 | 475 | 565 | 770 |
Max. Shot Weight(P.S) | 9 | 239 | 275 | 339 | 432 | 514 | 700 |
Injection Rate | cm3/sec | 149 | 171 | 211 | 107 | 128 | 174 |
Screw speed Max | rpm | 0-200 | 0-200 |
Temperature Control | ZONE | 4 | 4 |
|
Clamping System | Clamping Force | T | 100 | 200 |
Platen Size | mm | 920*730 | 1080*900 |
Distance Between Tie Bare | mm | 650*480 | 810*610 |
Min Mold Height | mm | 250/350 | 250/350 |
Opening Stroke | mm | 300 | 360 |
Max. Open Daylight | mm | 550/660 | 610/710 |
Ejector Force | T | 5.6 | 5.6 |
Ejector stroke | mm | 125 | 150 |
|
Power&Heading System | Max. Hydraulic Pressure | Kg/cm2 | 140 | 140 |
Pump Output | L/min | 65 | 94 |
Pump Motor Power | Kw/HP | 15/20 | 22.5/30 |
Barrel Heating Power | Kw | 4.35 | 8.5 |
Total Wattage | Kw | 20 | 32 |
Others | Machine Dimensions(L*W*H) | m | 2.7*1.3*3 | 4*1.4*3.2 |
Shipping Size(L*W*H) | m | 3*1.5*3.2 | 4.5*1.6*3.4 |
Machine Weight | T | 6 | 8 |
Shipping Weight | T | 6.6 | 9 |
Application :
1.Electric parts 2.Coil encapsulation parts
3.Daily products like microwave electriciron shells etc.
4.Auto industry
-Lamp reflector/Large parts of hood ,and rear doors,electric heating box,engine hood,horn box,big lamp shell and branch electric head etc.
5.Precision parts
Circuit breakers shell without fuses,motor shell ,loudspeaker box,cassette and video parts,copying machine,faxing machine,printing machine,medical equipment,measuring apparatuses etc.
Packing & Shipping :
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us.
RFQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
Jieyang Machinery Co., Ltd. Was founded in 1985 of Taiwan. With developing of company., the injection molding machine industry in 2005, the main R & D and manufacturing is vertical plastic injection molding machine, company factory located in Dongguan City, Guangdong Province, Jieyang has been working in the plastic injection molding machine R & D over 20 years, manufacturing, marketing and after-sales maintenance services in one. Professional manufacture, good service, "Jieyang machinery" brand has became a leader in injection molding machine industry.
Company based on high-tech, high starting point, all machine hydraulic accessories all from Taiwan factory direct supplier or with other imported brands, fusion perfect technology research and development, production and processing detection service system create series of Jieyang injection molding machinery products, to ensure high-quality machine, high speed.
Jieyang plastic injection mechanical product has low noise, stable pressure, the advantages of energy saving, high efficiency for in all kinds of plugs, stationery, toys, daily necessities, such as injection molding series, to meet the needs of customers for the products. Jieyang machinery always adhere to the attention to customer, pay attention to quality, continuous innovation, the pursuit of the efficiency of corporate mission, to provide you with a best plastic molding system and technical services.
